WESSHIELD™ EMI SHIELDING GASKETS

Custom die cut and molded EMI shielding gaskets.

Why We Created WESSHIELD™

Our high performance WesShield™ die cut and custom molded EMI shielding products are manufactured in our AS9100 certified manufacturing facility under controlled conditions. Our best in class portfolio of materials was developed in response to the rising demand for USA manufactured EMI shielding solutions for military, medical, telecom equipment and automotive customers.

Get a Quote



Key Benefits

Proven Reliability

AS9100 Quality System

Quick-turn Custom Molded EMI Gaskets

ITAR Facility

3M Adhesive Backing Available

WESSHIELD™ EMI SHIELDING GASKETS

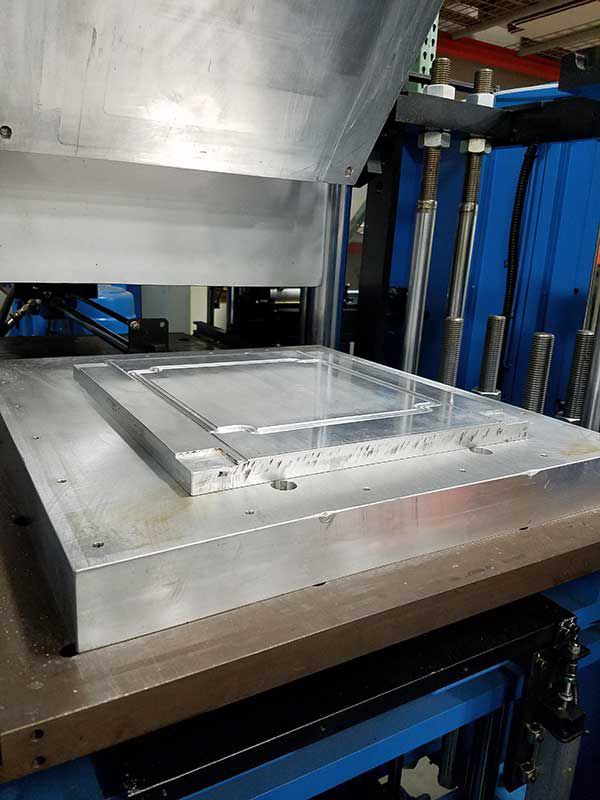

WesShield_Custom_Molded_EMI_Shielding_Press

WesShield™ Custom Molded EMI Shielding Gaskets

Our WesShield™ silicones and fluorosilicones are EMI Shielding materials that are used as a medium to provide electrical conductivity across a gasket-flange interface. Applications include the production of shielding gaskets for the military, aerospace, electronics and communications. Chose the best compound and let Modus® mold your gasket.

Learn More

WesShield™_Die_Cut_Gaskets

WesShield™ Die Cut EMI Shielding Gaskets

WesShield™ die cut EMI shielding gaskets are manufactured under the stringent requirements of our AS9100 quality system. Start your project by picking a material from the datasheet below.

Learn More

WESSHIELD™ CUSTOM MOLDED EMI SHIELDING GASKETS Reference Guide

Compound Number
Type of Rubber
Conductive Filler
Durometer (Shore A)
Tensile
Volume Resistivity
Shielding Effectiveness
Datasheet
Compound Number: RC350-2110
Type of Rubber: Silicone
Conductive Filler: Nickel / Graphite
Durometer (Shore A): 45
Tensile: 150
Volume Resistivity: .03
Shielding Effectiveness: 115
PDF for RC350-2110
Compound Number: RC350-2130
Type of Rubber: Silicone
Conductive Filler: Silver / Copper
Durometer (Shore A): 65
Tensile: 240
Volume Resistivity: .0009
Shielding Effectiveness: 113
PDF for RC350-2130
Compound Number: RC350-2150
Type of Rubber: Fluorosilicone
Conductive Filler: Silver / Aluminum
Durometer (Shore A): 45
Tensile: 185
Volume Resistivity: .002
Shielding Effectiveness: 125
PDF for RC350-2150
Compound Number: RC350-2170
Type of Rubber: Silicone
Conductive Filler: Silver / Aluminum
Durometer (Shore A): 65
Tensile: 240
Volume Resistivity: .001
Shielding Effectiveness: 114
PDF for RC350-2170
Compound Number: RC350-2190
Type of Rubber: Fluorosilicone
Conductive Filler: Silver / Aluminum
Durometer (Shore A): 70
Tensile: 330
Volume Resistivity: .005
Shielding Effectiveness: 90
PDF for RC350-2190
Compound Number: RC350-2210
Type of Rubber: Silicone
Conductive Filler: Nickel / Graphite
Durometer (Shore A): 60
Tensile: 220
Volume Resistivity: .02
Shielding Effectiveness: 113
PDF for RC350-2210

WESSHIELD™ DIE CUT EMI SHIELDING GASKETS Reference Guide

Manufacturer
Types of Rubber
EMI Shielding
Thickness (inches)
Durometer (Shore A)
Volume Resistivity
Shielding Effectiveness
PSA Available
Datasheet
Manufacturer: Modus Advanced
Types of Rubber: Silicone / Fluorosilicone
EMI Shielding: Yes
Thickness (inches): .010 to .125
Durometer (Shore A): 40 to 70
Volume Resistivity: .0009 to .02
Shielding Effectiveness: 90 to 125
PSA Available: Yes
PDF for Modus Advanced
