The Complete Guide to Medically Compliant Seals for Medical Device Manufacturers
Everything You Need to Know About Medically Compliant Seals
DON'T HAVE TIME TO READ THE ENTIRE GUIDE NOW?
We'll email you a downloadable PDF version of the guide and you can read it later.
Introduction
Medical device manufacturers face unique challenges when it comes to sealing solutions. The critical nature of medical devices demands nothing short of perfection in every component, especially seals. At Modus Advanced, we understand the intricate balance between innovation, compliance, and performance that medical device seals must maintain.
Seals play a pivotal role in healthcare technology, often serving as the last line of defense against contamination, leakage, and device failure. They ensure the safety of patients and healthcare providers while maintaining the efficacy of the equipment. From simple O-rings in syringes to complex custom-molded seals in surgical robots, these components are integral to the function and reliability of medical devices.
Regulatory compliance adds another layer of complexity to medical seal design and manufacturing. Seals must meet stringent FDA regulations, ISO standards, and biocompatibility requirements. This guide will explore the multifaceted world of medically compliant seals, offering insights into materials, design considerations, manufacturing processes, and emerging trends for medical device companies.
As a vertically integrated manufacturer, Modus Advanced is uniquely positioned to address the full spectrum of medical seal needs. Our expertise spans from material selection and custom design to precision manufacturing and quality control.
To get expert design feedback, engineering guidance, and manufacturing help, contact us at Modus Advanced.
Table of Contents
Types ofMedically Compliant Seals
The medical device industry relies on a variety of seal types, each suited to specific applications and design requirements. Understanding these options is crucial for engineers and product designers in medical technology.
O-rings are perhaps the most ubiquitous seals in medical devices. These simple, yet effective components provide reliable sealing in static and dynamic applications. At Modus Advanced, we produce medical-grade O-rings in a wide range of sizes and materials, ensuring compatibility with diverse medical applications.
Gaskets offer another versatile sealing solution, particularly for larger surface areas or irregular shapes. Custom gaskets can be designed to fit complex geometries, providing effective sealing in medical equipment housings, diagnostic devices, and more. Our die cutting and waterjet cutting capabilities allow for precise gasket production to meet exacting medical standards.
Custom-molded seals represent the pinnacle of tailored sealing solutions for medical device manufacturers. These seals are designed and manufactured to fit specific medical device requirements, often incorporating multiple functions into a single component. Modus Advanced's expertise in custom molding enables us to create seals that not only provide superior sealing performance but also contribute to overall device efficiency and miniaturization.

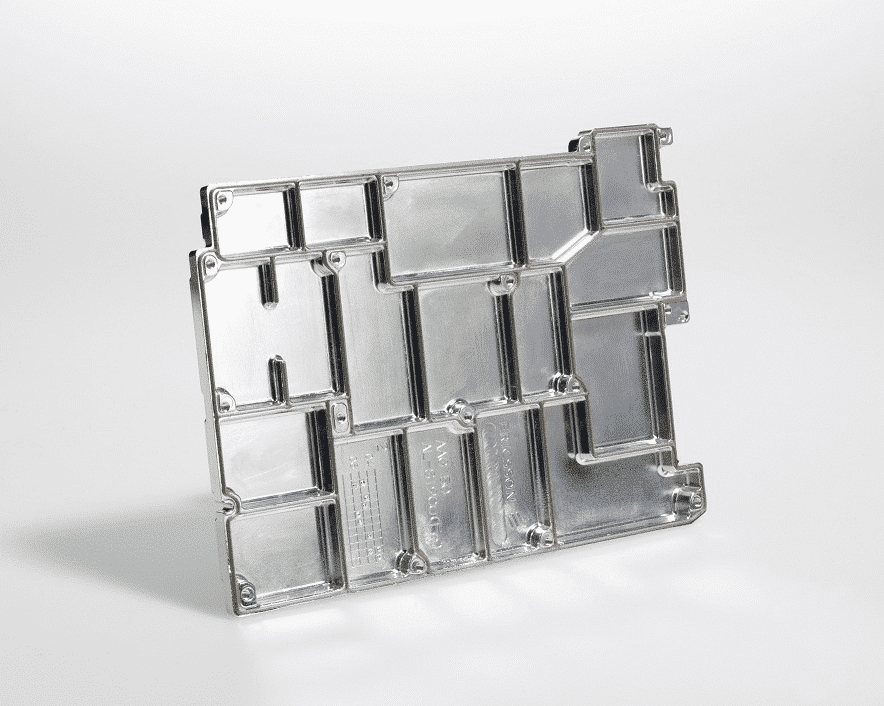

Form-in-place (FIP) gaskets offer a unique solution for complex sealing challenges in medical technology. This process involves dispensing a liquid elastomer directly onto the part, which then cures in place to form a perfect seal. FIP gaskets are particularly useful in medical devices with intricate geometries or where traditional gaskets are impractical. Our advanced FIP capabilities allow for precise, repeatable application of these seals, ensuring consistent performance across production runs.
Each type of seal has its strengths, and the choice often depends on factors such as the device's function, operating environment, and regulatory requirements. By offering a comprehensive range of sealing solutions, Modus Advanced ensures that medical device companies can find the optimal seal for their specific needs.
Everything You've Ever Wanted To Know About FIP Gaskets (And Probably More!)
We've got you covered.
Materials forMedical Device Seals
Selecting the right material for medical device seals is crucial for ensuring performance, compliance, and longevity. At Modus Advanced, we work with a wide range of medical-grade materials, each offering unique properties suited to different applications in medical technology.
Silicone stands out as a versatile and widely used material in medical seals. Its biocompatibility, temperature resistance, and flexibility make it ideal for many medical applications. Medical-grade silicone offers excellent resistance to sterilization processes, including autoclave and gamma radiation.
EPDM (Ethylene Propylene Diene Monomer) is another popular choice for medical device seals. It offers excellent resistance to steam, hot water, and many chemicals used in medical environments. EPDM's durability and ability to maintain its properties over a wide temperature range make it suitable for seals in medical equipment that undergoes frequent sterilization.
Fluoroelastomers (FKM) provide exceptional chemical resistance and can withstand high temperatures. These properties make FKM seals ideal for medical devices exposed to aggressive chemicals or those requiring frequent sterilization.
PTFE (Polytetrafluoroethylene) offers unparalleled chemical resistance and low friction properties. In medical devices, PTFE seals are often used in applications requiring minimal stick-slip behavior or where chemical inertness is paramount.
Compliance with regulatory standards is non-negotiable in medical device manufacturing. That's why Modus Advanced offers materials that meet your needs: CFR Class 6, USP Class 6, and FDA approved materials. These materials undergo rigorous testing to ensure they're safe for use in medical devices, providing peace of mind for medical device companies and end-users alike.
The choice of material often involves balancing multiple factors, including chemical compatibility, sterilization requirements, mechanical properties, and regulatory compliance. Our team of material experts works closely with medical device manufacturers to select or develop the optimal material for each specific application, ensuring that the seals not only meet but exceed performance expectations in medical technology.
How a Medical Device Company Solved Assembly Issues and Scaled Production
Learn more about how this medical device company solved assembly issues to scale production faster and more effectively.
Design Considerations for Medical Device Seals
Designing seals for medical devices requires a meticulous approach that balances performance, manufacturability, and regulatory compliance. At Modus Advanced, we leverage our extensive experience to guide medical device companies through this complex process.
Seal geometry and profile selection are fundamental to seal performance in medical technology. The shape of a seal can significantly impact its ability to maintain contact pressure, resist extrusion, and provide effective sealing under various conditions. For instance, a simple O-ring might suffice for static applications, while a custom lip seal might be necessary for dynamic sealing in a rotating shaft. Our engineering team uses advanced CAD tools to optimize seal profiles for each specific medical device application.
Compression set resistance is a critical factor in seal longevity for medical devices. Medical device manufacturers often require seals that maintain their sealing force over extended periods, even under constant compression. During the design for manufacturability (DfM) review, we assist in carefully selecting materials and design parameters to minimize compression set, ensuring that seals in long-term use devices, such as implantables or continuous monitoring equipment, maintain their integrity throughout the device's lifespan.
Temperature and chemical resistance must be considered in the context of both the medical device's operating environment and sterilization requirements. Medical seals often need to withstand repeated exposure to high temperatures during autoclaving or resist degradation from harsh cleaning chemicals.
Sterilization compatibility is non-negotiable in medical device seals. Different sterilization methods - such as steam autoclaving, ethylene oxide (EtO) gas, gamma radiation, or electron beam - can affect seal materials differently. Based on your design and device requirements, we ensure that the seals we manufacture can withstand the specific sterilization processes required for each medical device, maintaining their properties and performance post-sterilization.
Biocompatibility requirements add another layer of complexity to medical seal design. Seals that come into direct or indirect contact with the human body must meet stringent biocompatibility standards. This often involves selecting materials that are USP Class VI or ISO 10993 compliant and designing seals to minimize the potential for material leaching or particulate generation in medical devices.
At Modus Advanced, we approach each design challenge holistically, considering not just the immediate sealing requirements but also the long-term performance, regulatory compliance, and manufacturability of the seal. Our vertically integrated capabilities allow us to iterate quickly, moving from design to prototype to production with efficiency and precision for medical device manufacturers.
Manufacturing Processesfor Medical Seals
The manufacturing process for medical seals is as critical as their design. At Modus Advanced, we employ a range of advanced manufacturing techniques to produce high-quality, precise seals that meet the exacting standards of medical device companies.
Injection molding is a versatile and efficient process for producing large volumes of consistent, high-quality seals for medical devices. This method is particularly well-suited for complex geometries and can accommodate a wide range of medical-grade materials.
Compression molding is often the method of choice for producing large seals or when working with certain high-performance materials that are challenging to process via injection molding. This process can yield seals with excellent physical properties and is particularly useful for creating seals with intricate shapes or those requiring specific material orientations for optimal performance in medical technology.
Form-in-place (FIP) gasketing represents a cutting-edge approach to seal manufacturing for medical device companies. This process involves dispensing a liquid elastomer directly onto the part, which then cures in place to form a perfect seal. FIP is ideal for complex geometries or when traditional gaskets are impractical. At Modus Advanced, our advanced FIP capabilities allow for precise, repeatable application of these seals, ensuring consistent performance across production runs for medical devices.
CNC machining plays a crucial role in creating custom components and prototypes for medical devices. While not typically used for high-volume seal production, CNC machining allows for rapid iteration and testing of seal designs. Our in-house CNC capabilities enable us to quickly produce custom parts, facilitating faster development cycles for medical device manufacturers.
Die cutting and waterjet cutting are essential processes for producing flat gaskets and seals from sheet materials for medical technology. These methods offer high precision and are particularly useful for creating seals with complex 2D shapes. Our advanced cutting technologies allow for tight tolerances and clean edges, crucial for ensuring proper sealing in medical applications.
Regardless of the manufacturing process, quality control is paramount in medical seal production. Quality control is integrated into every step of our manufacturing process for medical device companies. From incoming material inspection to in-process checks and final product testing, we employ a comprehensive quality management system to ensure that every seal meets or exceeds the required specifications for medical technology.
Our vertically integrated approach allows us to control the entire manufacturing process, from raw material to finished product. This not only ensures consistent quality but also provides the flexibility to adapt quickly to changing requirements or to scale production as needed for medical device manufacturers.
Quality Controland Testing
In the medical device industry, quality isn't just a goal – it's an absolute necessity. At Modus Advanced, we've implemented a rigorous quality control and testing regimen to ensure that every seal we produce meets the exacting standards required for medical applications.
Dimensional inspection is the foundation of our quality control process for medical device manufacturers. We utilize advanced measurement technologies, including coordinate measuring machines (CMMs) and optical comparators, to verify that seals meet specified dimensions and tolerances. For critical applications in medical technology, we can provide detailed inspection reports, giving our clients confidence in the consistency and accuracy of our products.
We also conduct extensive documentation and traceability processes for medical device companies. Every batch of seals is fully traceable, from raw materials through production and shipping. This level of documentation is crucial for regulatory compliance and allows for rapid response in the unlikely event of a quality issue in medical devices.
Our quality control processes are designed to catch any potential issues early in the production cycle for medical device manufacturers. In-process inspections and statistical process control (SPC) techniques help us maintain consistent quality throughout a production run, reducing variability and ensuring that every seal meets specifications for medical technology.
At Modus Advanced, we understand that quality control doesn't end with the final product inspection. We work closely with medical device companies to gather feedback on seal performance in the field, using this information to continuously improve our processes and products. This commitment to ongoing improvement helps us stay at the forefront of medical seal technology and ensures that we continue to meet the evolving needs of the medical device industry.
Regulatory Complianceand Standards
Navigating the complex landscape of regulatory compliance is a critical challenge for medical device manufacturers. Understanding and adhering to these regulations ensures that seals not only meet but often exceed the standards set by governing bodies for medical technology.
FDA Regulations
FDA regulations form the cornerstone of compliance for medical device seals in the United States. Ensuring that seals comply with relevant FDA guidelines, including those outlined in 21 CFR Part 820 (Quality System Regulation), is essential. Comprehensive documentation and traceability systems support FDA submission processes, providing the necessary evidence of compliance for medical devices.
ISO 13485 Quality Management System
The ISO 13485 quality management system standard is specifically tailored to the medical device industry. Maintaining ISO 13485 certification demonstrates a commitment to consistent quality in the design, development, production, and distribution of medical device components. This certification assures medical device manufacturers that robust processes are in place to meet the unique requirements of the medical technology industry.
Risk Management
Risk management is an integral part of medical device development, and ISO 14971 provides a framework for this process. Incorporating risk management principles into seal design and manufacturing processes helps medical device companies identify and mitigate potential risks associated with seal failure or malfunction. This proactive approach to risk management contributes to the overall safety and efficacy of the final medical device.
Biocompatibility Testing
Biocompatibility testing, as outlined in ISO 10993, is often required for seals that come into direct or indirect contact with the human body in medical devices. Working with accredited testing laboratories to conduct the necessary biocompatibility tests ensures that seals meet the required standards for their intended use in medical technology. This may include tests for cytotoxicity, sensitization, and irritation, among others.
Sterilization Validation
Sterilization validation is another critical aspect of regulatory compliance for many medical device seals. Designing and manufacturing seals to withstand common sterilization methods, including steam autoclaving, ethylene oxide (EtO) gas, and gamma radiation, is crucial. Validating materials and processes ensures that seals maintain their integrity and performance after sterilization for medical device manufacturers.
Ongoing Compliance
Regulatory compliance is an ongoing process in the medical device industry. Staying abreast of changes in regulations and standards and continuously updating processes and documentation ensures ongoing compliance. Providing support and guidance throughout the compliance process is essential for medical device companies.
By understanding and adhering to these regulatory requirements, medical device manufacturers can have confidence that their sealing components meet the highest standards of regulatory compliance. Expertise and commitment to quality help streamline the regulatory approval process, potentially reducing time-to-market for new medical devices.
Applications of Seals in Medical Devices
The versatility and critical nature of seals in medical devices cannot be overstated. At Modus Advanced, we've had the privilege of contributing to a wide range of medical applications, each with its unique set of challenges and requirements for medical device manufacturers.
Surgical instruments represent a significant area where our seals play a crucial role in medical technology. From minimally invasive laparoscopic tools to robotic surgical systems, precision seals are essential for maintaining sterility, preventing fluid ingress, and ensuring smooth operation. Our custom-molded seals often incorporate multiple functions, such as providing a barrier against contaminants while also reducing friction in moving parts. This multifunctionality contributes to the overall efficiency and reliability of these life-saving medical devices.
Diagnostic equipment relies heavily on effective sealing solutions in medical technology. In imaging devices like MRI and CT scanners, our seals help maintain the integrity of cooling systems and protect sensitive electronic components. For in-vitro diagnostic equipment, such as blood analyzers and PCR machines, our seals ensure accurate fluid handling and prevent cross-contamination between samples. The precision and consistency of our seals contribute to the accuracy and reliability of diagnostic results, a critical factor for medical device companies developing these technologies.
Drug delivery systems present unique challenges in seal design for medical device manufacturers. From insulin pumps to autoinjectors, these devices require seals that can withstand long-term contact with medications while maintaining precise dosing capabilities. Our expertise in material selection and custom seal design allows us to create solutions that are both biocompatible and resistant to the specific drugs being administered.
Implantable devices represent the cutting edge of medical technology, and their sealing requirements are among the most demanding. Long-term biocompatibility, resistance to body fluids, and the ability to withstand millions of cycles are just a few of the challenges that seals for implantable devices must overcome.
Wearable medical devices, such as fitness trackers, continuous glucose monitors, and wearable ECG monitors, also benefit from our sealing solutions. These devices require seals that are not only effective but also comfortable for long-term wear. Our form-in-place (FIP) gaskets and custom-molded seals provide the necessary protection against moisture, dust, and other environmental factors while maintaining a low profile and flexibility. This ensures that the medical devices remain comfortable and unobtrusive for the user, a key consideration for medical device companies in this rapidly growing sector.
In each of these applications, the role of seals extends beyond simple containment. They contribute to the overall functionality, reliability, and user experience of the medical device. At Modus Advanced, we understand the critical role that seals playin the performance and safety of medical devices, and we are committed to delivering solutions that meet the highest standards for medical device manufacturers.
Our vertically integrated manufacturing capabilities allow us to produce seals for a wide range of medical devices, from high-volume production runs to specialized, custom solutions. This flexibility ensures that we can support medical device companies at every stage of their product development, from initial prototyping to full-scale production.
Challenges and Solutions in Medical Seal Design
Designing seals for medical devices involves navigating a landscape filled with unique challenges. We've developed a deep understanding of these challenges and have honed our ability to provide effective solutions for medical device manufacturers.
Miniaturization trends in medical devices demand seals that are smaller, yet equally effective. As devices become more compact, the tolerances for seal design become tighter, and the margin for error shrinks. Our precision manufacturing capabilities, including advanced CNC machining, allow us to produce seals that meet the stringent requirements of miniaturized medical devices. We work closely with device manufacturers to optimize seal designs for space-constrained applications, ensuring that they provide reliable performance without compromising the overall device design.
Multi-material sealing solutions are often necessary to address the diverse requirements of medical technology. For instance, a single device might require seals that are both chemically resistant and biocompatible. At Modus Advanced, we have the expertise to combine different materials into a single, cohesive sealing solution for medical devices. This might involve overmolding a chemically resistant core with a biocompatible outer layer or using multi-material gaskets that provide different properties in different sections.
Addressing friction and wear in dynamic seals is another common challenge in medical device design. Medical devices with moving parts, such as pumps or valves, require seals that can withstand repeated motion without degrading. We use advanced materials like PTFE and fluoroelastomers to create seals with low friction coefficients and high wear resistance.
Overcoming material compatibility issues is crucial for ensuring the longevity and reliability of medical device seals. Different materials can interact in ways that degrade performance or cause failure. For example, certain elastomers might swell or degrade when exposed to specific chemicals or medications.
At Modus Advanced, we approach each design challenge with a combination of technical expertise and innovative thinking. Our collaborative approach involves working closely with medical device manufacturers to understand their specific needs and constraints, allowing us to develop tailored solutions that address the unique challenges of each application in medical technology. By leveraging our vertically integrated capabilities, we can quickly iterate on designs and move from prototype to production with efficiency and precision, a crucial advantage in the fast-paced medical device industry.
Small Bead FIP: Breaking the Bead Size Boundaries of Form-In-Place Gaskets
Many of our medical device and Defense partners are challenging the boundaries of technology daily. As technology advances, electronics and devices are shrinking in size to accommodate more complex project designs–simply put, they require more technology in less space. It pays to have a manufacturing part who is willing to push the boundaries.
%20(1).png)
Future Trends in Medical Device Seals
The medical device industry is constantly evolving, and sealing technology must keep pace with these advancements. We stay at the forefront of emerging trends to ensure that our sealing solutions continue to meet the needs of medical device manufacturers.
Smart seals with embedded sensors represent a significant advancement in medical technology. These seals can monitor various parameters, such as pressure, temperature, or chemical exposure, and provide real-time data to the device or healthcare provider. This capability can enhance the functionality of medical devices, enabling predictive maintenance and improving patient outcomes.
Advancements in antimicrobial materials are also shaping the future of medical device seals. Infections related to medical devices are a significant concern, and incorporating antimicrobial properties into seals can help mitigate this risk. These innovations can enhance the safety and efficacy of medical devices, particularly those used in invasive or long-term applications, a key focus for many device manufacturers.
3D printing and additive manufacturing are revolutionizing the production of custom seals for medical technology. These technologies allow for rapid prototyping and the creation of complex geometries that would be difficult or impossible to achieve with traditional manufacturing methods.
At Modus Advanced, we are committed to staying ahead of industry trends and continuously innovating our sealing solutions for medical devices. We can help medical device companies develop products that are safer, more effective, and more sustainable by embracing these new technologies. Our forward-thinking approach ensures that we remain a trusted partner for medical device manufacturers, providing the expertise and capabilities needed to navigate the future of medical seal technology.
Choosing The Right Medical DeviceSeal Manufacturer
Selecting the right seal manufacturer is a critical decision for medical device companies. The right partner can make a significant difference in the quality, performance, and regulatory compliance of the final product. At Modus Advanced, we offer a unique combination of capabilities and expertise that make us the ideal choice for medical device seal manufacturing.
Vertical integration is one of our key strengths in serving medical device manufacturers. By controlling the entire manufacturing process, from material selection and design to production and quality control, we ensure consistent quality and reliability in medical device components. This integrated approach also allows us to be highly responsive to the needs of medical device companies, whether it's making design adjustments, scaling production, or addressing any issues that arise during the manufacturing process.
Our prototype to production capabilities provide a seamless transition from initial concept to full-scale manufacturing for medical devices. We support medical device manufacturers through every stage of product development, offering rapid prototyping services to quickly iterate on designs and validate performance. Once the design is finalized, our advanced manufacturing facilities can scale production to meet any volume requirements, ensuring timely delivery of high-quality seals for medical technology applications.
Quality certifications are essential for medical device seal manufacturing. Modus continues to demonstrate our commitment to maintaining the highest standards of quality management in medical technology.
Design assistance and engineering support are integral to our value proposition for medical device manufacturers. Our team of experienced engineers works closely with medical device companies to optimize seal designs for performance, manufacturability, and regulatory compliance. We leverage advanced CAD tools and simulation software to refine designs and ensure that they meet all necessary requirements for medical devices. This collaborative approach helps our clients achieve the best possible outcomes for their medical technology products.
As a contract manufacturing partner, we offer the flexibility and expertise that medical device companies need to bring their innovations to market efficiently. Our experience in medical device manufacturing allows us to anticipate challenges and provide solutions that streamline the production process, from initial prototyping to full-scale manufacturing.
Choosing Modus Advanced as your seal manufacturer means partnering with a company that is dedicated to your success and patient safety. Our comprehensive capabilities, commitment to quality, and focus on innovation make us a trusted partner for medical device companies. We understand the critical role that seals play in the performance and safety of medical devices, and we are committed to delivering solutions that meet the highest standards in medical technology and healthcare technology.
Advancing Medical Technology Through Precision Sealing Solutions at Modus Advanced
Medically compliant seals are a cornerstone of reliable and effective medical devices. From ensuring patient safety to meeting stringent regulatory requirements, these components play a vital role in the healthcare industry. At Modus Advanced, we bring a wealth of expertise and a vertically integrated approach to the design and manufacture of medical device seals.
Our comprehensive capabilities, from material selection and custom design to precision manufacturing and rigorous quality control, ensure that we can meet the diverse needs of medical device manufacturers. We help medical device companies navigate the complexities of medical seal development and production by staying at the forefront of industry trends and continuously innovating our solutions.
Whether you're developing a new medical device or seeking to improve an existing product, we are here to support medical device manufacturers every step of the way. For more information on our capabilities and how we can support your medical device seal needs, visit the Modus Advanced website and contact us. Let us help you bring your medical technology innovations to life with sealing solutions that you can trust, advancing healthcare technology and improving patient outcomes through superior medical device manufacturing.
