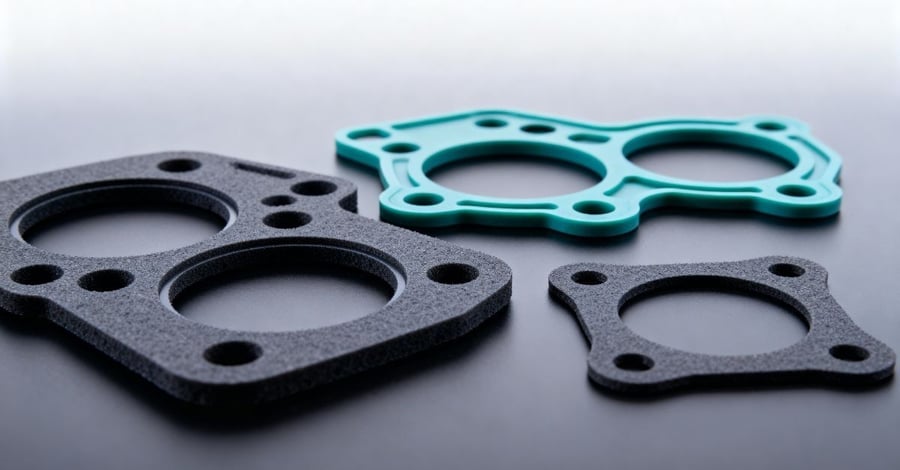

Custom Gaskets and Sealing Solutions: Process Qualification at Every Manufacturing Readiness Level

Key Points:

• MRL gates are qualification milestones: they define whether your manufacturing process can reliably deliver conforming parts under real production conditions
• Die-cut foam and FIP dispensed silicone require different qualification approaches: material variability, process controls, and inspection methods must be designed for each process individually
• MRL 5 through MRL 8 is where most programs live and die: capability demonstrated in a relevant environment, scaled to pilot line, is where sealing solutions prove out or fail
• Tolerance management is a qualification variable, not a fixed constraint: standard die-cut tolerances for film materials under 25.4 mm (1.0") are ±0.25 mm (±0.010") — and Modus holds ±0.13 mm (±0.005") where the design demands it
• Vertical integration compresses qualification timelines: when material selection, converting, FIP dispensing, and inspection happen under one roof, iteration cycles shrink and traceability improves

Why Sealing Solutions Fail Manufacturing Readiness Reviews

Sealing components rarely get the attention they deserve during early manufacturing readiness reviews. Engineers focus on electronics, structures, and thermal management — and the gasket gets treated as a late-stage detail. That's a costly assumption.

A die-cut silicone pad that performs perfectly in a lab prototype can fail spectacularly in a pilot line environment. Process variation that's invisible at five units becomes a pattern at 500. When that gasket is the last line of defense for a radar housing, a ventilator enclosure, or a missile guidance system, variation isn't an inconvenience — it's a program risk.

Manufacturing Readiness Levels (MRLs) exist to surface those risks before they become field failures. To use them effectively, design and manufacturing engineers need to understand what qualification actually looks like for flexible sealing components across the MRL scale.

What Makes Gasket Qualification Different

Gaskets aren't rigid components. Material behavior, compression set, adhesion variability, and the interaction between gasket geometry and housing surface finish all introduce process variables that don't respond to the same controls you'd apply to a machined part. A qualification approach designed for metal structures will miss the failure modes that matter most for sealing solutions.

Manufacturing readiness for custom gaskets means demonstrating that a manufacturing process — not just a design — can produce conforming sealing components at the required volume, tolerance, and quality level under representative production conditions. That distinction matters. A qualification approach that proves the design without proving the process will find the gap the hard way.

MRL vs. TRL: Why the Distinction Matters for Gasket Suppliers

Manufacturing Readiness Levels and Technology Readiness Levels (TRLs) parallel each other but measure fundamentally different things. TRLs assess whether a technology works. MRLs assess whether a factory can produce it reliably.

A gasket material can sit at TRL 9 — fully proven in operation — while the manufacturing process to produce it at scale sits at MRL 5. For procurement engineers qualifying a custom gasket supplier, MRL is the more actionable metric. It tells you whether the supplier's process is ready for your program, not just whether the material is capable.

What to Verify Before Approving a Custom Gasket Supplier

Supplier qualification for custom sealing components requires more than an ISO certificate and a capabilities brochure. The questions that matter are process-specific.

Before approving a custom gasket manufacturer for aerospace, defense, or medical programs, verify the following:

• Certifications confirmed: AS9100 Rev D for aerospace/defense, ISO 9001 for general industrial, ISO 13485 for medical devices, ITAR registration for controlled programs. These aren't optional — they define the quality infrastructure the MRL process runs on.
• Tolerance capability documented: What are the supplier's standard tolerances by material class? Can they demonstrate Cpk ≥ 1.33 at those tolerances? Can they hold tighter tolerances when the design requires it, and do they have data to prove it?
• First Article Inspection (FAI) process defined: Does the supplier perform FAI per AS9102 or an equivalent documented process? Do they generate a ballooned drawing, dimensional report, and material certifications as standard deliverables?
• Process capability data available: Can the supplier provide SPC data — Cpk, Ppk — from production runs, not just first-article samples? This is the difference between a supplier who can make a good part once and one who can make conforming parts every time.
• Vertical integration assessed: How many process steps does the supplier control? Every handoff between sub-tier vendors is a traceability gap and a qualification risk. A supplier who controls material selection, converting, FIP dispensing, and inspection under one roof compresses both qualification timelines and supply chain risk.
• Change control process defined: What triggers re-qualification? Material lot changes, tooling replacement, facility changes, and process parameter adjustments all have the potential to invalidate prior qualification data. A supplier without a documented change control procedure can silently undermine your MRL 8 qualification.
• PPAP capability confirmed: For defense and automotive-adjacent programs, Production Part Approval Process documentation may be required. Verify whether the supplier can generate the full PPAP package — design records, process flow diagrams, control plans, MSA results, and initial process capability studies.

When Re-Qualification Is Required

Change control is one of the most underspecified areas in gasket supplier qualification. Programs that assume qualification is a one-time event routinely discover the hard way that it isn't.

Re-qualification is required when any of the following occur:

• Material lot change: any change that falls outside validated lot-to-lot variation parameters
• Tooling replacement: new die steel, new dispensing needle, or new fixturing that hasn't been validated against the qualified configuration
• Process parameter change: press tonnage, dwell time, cure temperature, or dispense speed adjusted outside the documented control range
• Facility or equipment change: production moved to a different press, robot, or building
• Supplier change: any change to the material supplier for any material in the qualified assembly

The cost of re-qualification is real. It's also predictable and manageable when a supplier has the documentation infrastructure to support it. When they don't, a material lot change becomes a program-threatening event.

Essential Background Reading:

• Manufacturing Readiness Levels: The Complete Guide for Aerospace and Defense Engineers: The foundational reference for understanding the full MRL framework from MRL 1 through MRL 10, with context specific to aerospace and defense programs.
• What Are Manufacturing Readiness Levels? MRL 1–10 Explained: A level-by-level breakdown of the DoD MRL Deskbook framework — what each level requires, how assessments work, and what evidence qualifies.
• MRL vs. TRL: Understanding the Difference Between Technology and Manufacturing Readiness: Clarifies why a mature technology can still have an immature manufacturing process — a critical distinction for supplier qualification decisions.
• Manufacturing Readiness Level Assessments: What Defense Contractors Need to Know: Covers how MRL assessments are structured, who conducts them, and what contractors need to document before a formal review.

The MRL Framework Applied to Custom Gasket Production

MRLs provide a structured framework for assessing whether a manufacturing process can reliably produce conforming parts at scale. The DoD MRL Deskbook defines ten levels, from basic manufacturing concepts through full-rate production capability. For custom gasket programs, MRL 5 through MRL 8 is where the real qualification work happens.

Rigid metal components map cleanly onto existing CNC and inspection infrastructure. Flexible sealing components are more complicated. The table below outlines the MRL gates most relevant to sealing component qualification and what each demands from a manufacturing partner.

The gap between MRL 5 and MRL 8 is where most sealing component programs encounter friction. Bridging it requires a manufacturing partner who has done it before — and who controls enough of the process to iterate quickly when issues surface.

MRL 5: Establishing Process Capability in a Relevant Environment

MRL 5 is the first gate where manufacturing process — not just design intent — gets evaluated. For sealing components, this means demonstrating that your chosen process can produce conforming parts under conditions that approximate the production environment.

Material selection decisions become effectively irreversible at this gate for many programs. Choosing between die-cut foam, molded silicone, and form-in-place dispensed elastomer at MRL 5 means committing to a manufacturing process with its own tolerance regime, tooling requirements, and inspection approach. Get it wrong here and you're not revising a drawing — you're restarting qualification.

Die-cut components must satisfy four baseline requirements to clear this gate.

• Material classification established: Film (BL1), solid/dense (BL2), or sponge/foam (BL3) designation determines which tolerance standard applies to all downstream qualification work
• Baseline tolerances documented: Standard length/width tolerances for film materials under 25.4 mm (1.0") are ±0.25 mm (±0.010"). Solid materials hold ±0.38 mm (±0.015"). Foam/sponge materials hold ±0.63 mm (±0.025")
• Die tooling validated: First-article parts measured against drawing requirements, with tolerance deviations dispositioned before MRL 6 planning begins
• Inspection plan drafted: Dimensional inspection methods, sampling plans, and acceptance criteria defined against drawing requirements

FIP dispensed components carry a different set of process variables, and each one must be addressed before the gate closes.

• Dispense path designed and reviewed: Start/stop zones, T-joint locations, and corner radii reviewed against bead geometry requirements. Standard TriShield bead tolerances are ±0.10 mm for nominal heights under 1 mm and ±0.15 mm for heights over 1 mm
• Cure parameters validated: Time, temperature, and humidity conditions documented and tied to material supplier data
• Representative substrate used: Dispensing onto production-representative housing material — not a test coupon with different surface finish or plating

MRL 5 is proof of concept at the process level. You're proving you understand the process variables well enough to control them — nothing more, nothing less.

Related Content:

• How Design for Manufacturability Reviews Accelerate MRL Advancement: How DFM reviews identify and resolve process risks earlier in the qualification sequence, reducing the cost and time of MRL advancement.
• Managing Supply Chain Risk at Each Manufacturing Readiness Level: A structured look at how supply chain decisions — including vertical integration — affect risk exposure at each MRL gate.
• Cost Modeling and Should-Cost Analysis Across Manufacturing Readiness Levels: How cost structures shift as a program advances through MRL gates and what procurement teams should model at each stage.
• EMI Shielding and RF Components: Meeting Manufacturing Readiness Requirements for Defense Electronics: MRL qualification requirements applied to EMI gaskets and RF shielding components in defense electronic systems — a closely related sealing application.

MRL 6: First Article Inspection and Process Documentation

MRL 6 demands a prototype line — a demonstrated manufacturing sequence that could, in principle, produce parts for a prototype build. For sealing components, this is where tooling investments get validated and process documentation moves from draft to controlled.

First Article Inspection is a formal requirement at this gate. FAI per AS9102 means a ballooned drawing, a complete dimensional report against every drawing callout, and material certifications for every material in the assembly. For gasket components, this includes durometer, compression set, and thermal resistance certifications where the design requires them. An informal check doesn't satisfy this gate.

Die geometry tolerances become critical here. Press tonnage, dwell time, and material lot variation all affect dimensional output, and first-article data needs to reflect the process as it will run — not an optimized one-time setup.

CHO-FORM bead height tolerances in the 0.89 mm to 1.57 mm (0.035" to 0.062") range hold to ±0.15 mm (±0.006") standard — tighter than most engineers expect from a dispensed material — requiring active compensation and a documented calibration procedure.

The DFM feedback loop is most valuable at MRL 6. If housing geometry is creating fixturing challenges, the dispense path has unnecessary start/stop zones, or die-cut geometry is driving tolerance stack-ups, drive the design change now. Changes made at MRL 8 are program-threatening.

Next Steps:

• MRL 4 to MRL 6: Closing the Gap Between Prototype and Pilot Production: A detailed look at the most friction-prone transition in the MRL sequence — where tooling investment decisions and first-article failures most often occur.
• What Is a Manufacturing Readiness Level 7? Requirements, Evidence, and Common Pitfalls: Deep-dive into MRL 7 requirements, what evidence packages reviewers expect, and the most common ways programs stall at this gate.
• How to Build a Manufacturing Readiness Evidence Package That Passes DoD Review: Step-by-step guidance on assembling the documentation package required to pass a formal DoD MRL assessment.
• From Breadboard to Full-Rate Production: A Program Manager's MRL Roadmap: A program manager's-eye view of the full MRL journey, with decision points and timeline considerations at each stage.
• How Vertical Integration Supports Manufacturing Readiness in Aerospace Programs: How controlling more of the production process under one quality system reduces MRL advancement time and supply chain risk in aerospace programs.

MRL 7: Statistical Process Controls and Yield Data

Moving from MRL 6 to MRL 7 is a transition from "this works" to "we can prove it works consistently." Statistical process control enters the picture, and Cpk and Ppk data replace anecdotal evidence.

Material lot variation, environmental conditions, and cumulative tooling wear all show up in SPC data. A die-cut gasket that held ±0.25 mm (±0.010") in 50-piece first-article inspection may show Cpk degradation at 500 pieces if press parameters aren't actively monitored. A Cpk of 1.33 is the standard minimum for production readiness — the process mean must sit at least four standard deviations from the nearest specification limit, in a process with a standard total spread of eight sigmas against a twelve-sigma spec window.

FIP dispensed components at MRL 7 need documented evidence that bead geometry remains within tolerance across a representative production run, including starts and stops. The 3 mm start/stop zones carry height and width variation of -30% to +45% from nominal — that's a physical property of the process, not a fixable defect, and it must appear in the qualification plan explicitly.

Four categories of process control data must be documented and in hand before MRL 7 closes.

• Dimensional Cpk/Ppk data: Measured against standard tolerances for each material class, with sample sizes sufficient to support statistical conclusions
• Material traceability: Lot numbers, certifications, and supplier qualification status for every material in the qualification build
• Environmental controls: Temperature and humidity conditions during dispensing or converting, especially relevant for moisture-cure FIP systems
• Inspection method validation: Measurement system analysis (MSA) completed for all critical dimensions, confirming inspection variation isn't masking process variation

Environmental Qualification Considerations

Environmental qualification is a distinct step from dimensional qualification, and it's frequently underplanned for gasket components. Temperature cycling, salt fog exposure, and compression set testing after thermal aging all reveal failure modes that dimensional inspection won't catch.

For programs operating in harsh environments — airborne electronics, shipboard systems, implantable or life-support medical devices — environmental qualification data should be planned at MRL 6 and completed before MRL 7 closes. Material selection decisions made at MRL 5 without accounting for these requirements are among the most expensive mistakes in sealing component programs. You don't want to discover a thermal aging problem at MRL 7.

MRL 8: Pilot Line Demonstrated, Ready for LRIP

MRL 8 is the finish line before Low Rate Initial Production (LRIP). The pilot line is demonstrated, the supply chain is locked, and the process is proven at representative volume.

For sealing components, MRL 8 means the process has demonstrated stability across multiple material lots, the inspection infrastructure can support production throughput, and AS9100 and ITAR requirements are fully integrated into the quality management system — not bolted on after the fact.

Tighter-than-standard tolerances must be fully justified and validated by MRL 8. Achieving ±0.13 mm (±0.005") on a die-cut film component is possible with the right tooling and process engineering, but it increases per-unit cost and extends lead time. If the design truly requires it, MRL 8 qualification must prove it's repeatable at Cpk ≥ 1.33. If it doesn't require it, MRL 8 is far too late to find that out.

PPAP documentation requirements, where applicable, must be completed before this gate closes. The full PPAP package — design records, process flow diagrams, PFMEA, control plan, MSA results, and initial process capability studies — must be generated from the production process, not reconstructed from memory.

Vertical integration matters enormously here. When machined housing, FIP dispensing, plating, and thermal interface materials all go through a single qualified supplier, the pilot line demonstration happens under realistic conditions — not an idealized sequence where each step is handed off to an unqualified sub-tier vendor. Every handoff eliminated is a traceability gap closed and a qualification risk removed.

See It In Action:

• Custom Gaskets and Sealing Solutions: Process Qualification at Every Manufacturing Readiness Level: A companion reference covering process qualification requirements for custom sealing solutions across the full MRL scale.
• Manufacturing Readiness Levels for Medical Device Development: Applying Defense Frameworks to FDA Pathways: How the DoD MRL framework maps onto FDA design control and process validation requirements for medical device manufacturers.
• EMI Shielding and RF Components: Meeting Manufacturing Readiness Requirements for Defense Electronics: Real-world qualification requirements for EMI shielding components in defense electronics — showing how MRL rigor applies to adjacent sealing applications.

What Modus Brings to the MRL Process

Modus is built for exactly this — not the early design phase where anything seems possible, but the grind from MRL 5 to MRL 8 where programs prove out or fall apart.

Engineers make up more than 10% of our staff, embedded in quality, manufacturing, machining, and FIP dispensing. When a qualification build surfaces a process issue at MRL 6, the people who can solve it are already in the building.

Our capabilities span the full sealing solution stack: die-cut gaskets across foam, film, and solid elastomers; form-in-place dispensing with both Nolato TriShield and Parker Chomerics CHO-FORM systems; machined metal housings; and thermal interface materials. AS9100 and ISO 9001 certification, plus ITAR compliance, mean our quality infrastructure is built for the programs where MRL rigor actually matters. We hold ±0.13 mm (±0.005") on die-cut parts — tighter than industry standard — and we generate the Cpk data to prove it.

Qualification documentation, process parameter records, and SPC data are generated as part of the process at Modus — not assembled retroactively — because when a program reaches MRL 8, there's no time to reconstruct what happened at MRL 6.

Frequently Asked Questions: Custom Gasket Manufacturing Readiness

What is manufacturing readiness for custom gaskets?

Manufacturing readiness for custom gaskets is the demonstrated ability of a specific manufacturing process to produce conforming sealing components at required volume, tolerance, and quality level under production-representative conditions. It is assessed using the Manufacturing Readiness Level (MRL) framework, which evaluates process maturity from initial concept (MRL 1) through full-rate production capability (MRL 10). A gasket design can be technically mature while the manufacturing process remains unqualified — MRL assessment distinguishes between the two.

What certifications should a custom gasket manufacturer hold?

Custom gasket manufacturers supplying aerospace and defense programs should hold AS9100 Rev D certification and ITAR registration at minimum. Medical device programs require ISO 13485. ISO 9001 provides the baseline quality management system framework applicable to all programs. These certifications are necessary but not sufficient — they confirm that a quality management system exists, not that the specific manufacturing process is qualified for your application.

What does a First Article Inspection (FAI) cover for a custom gasket?

A First Article Inspection for a custom gasket, performed per AS9102 or equivalent, includes a ballooned drawing with every characteristic identified, a dimensional report measuring all drawing callouts on a production-representative sample, and material certifications for every material in the assembly. For sealing components, this includes durometer, compression set, and thermal resistance certifications where specified. FAI confirms that the production process — using production tooling, production materials, and production personnel — can make a conforming part.

What triggers re-qualification of a custom gasket?

Re-qualification is required when any of the following occur: a material lot change that falls outside validated lot-to-lot variation parameters; tooling replacement, including new die steel or dispensing needles; process parameter changes outside the documented control range; equipment or facility changes; or a change in the material supplier. Programs that treat initial qualification as permanent and fail to define re-qualification triggers routinely encounter non-conformances that trace back to uncontrolled process changes.

How does vertical integration affect custom gasket qualification timelines?

Vertical integration reduces qualification timelines by eliminating inter-supplier handoffs, which are both the slowest and the highest-risk steps in a qualification sequence. When material selection, die cutting, FIP dispensing, machined housing production, and inspection occur under one roof with a single quality management system, iteration cycles during MRL 5 and MRL 6 take days rather than weeks. Traceability is continuous rather than reconstructed across supplier boundaries, and process changes can be implemented and validated without sub-tier re-qualification events.

What is the difference between process qualification and design qualification for gaskets?

Design qualification confirms that a gasket design — its geometry, material, and performance specifications — meets the functional requirements of the application. Process qualification confirms that a manufacturing process can produce that design repeatably within required tolerances under production conditions. Both are required before production. A design qualification failure means the specification needs to change. A process qualification failure means the manufacturing process needs to change. Conflating the two leads to misdiagnosed problems and wasted qualification effort.
