Design for manufacturability decisions made during the initial design phase directly determine production costs, lead times, and part quality for converted parts and custom gaskets. Engineers who understand these principles from the outset avoid costly redesigns and accelerate their path to market.
The complexity of aerospace, defense, and medical device applications demands precision, but over-engineering can create unnecessary manufacturing challenges. Strategic design choices enable engineers to achieve required performance while optimizing manufacturing efficiency and supporting sustainable manufacturing practices.
Why Design for Manufacturability Matters for Converted Parts
Converted parts manufacturing involves cutting, shaping, and forming sheet materials into custom configurations. Unlike machined components where material is removed, converted parts rely on precise cutting processes that each have specific capabilities and limitations.
Modern DFM practices integrate digital manufacturing tools and real-time feedback to optimize design decisions. According to recent industry analysis, manufacturers implementing comprehensive design for manufacturability protocols see up to 30% reduction in production errors and faster time-to-market.
Design decisions affect two critical project factors: lead time and cost. Poor design choices can extend production schedules by weeks and increase costs by 50% or more through material waste, manufacturing complexity, and quality control requirements.
- Lead Time Impact: Complex geometries require specialized cutting processes and extended setup times. Tight tolerances may necessitate multiple process iterations and increased inspection time. Quality requirements can add days or weeks to production schedules.
- Cost Impact: Manufacturing complexity increases labor costs, while tight tolerances require additional material to account for scrap rates (which becomes important in cases where your part requires expensive materials to create). Specialized tooling and extended quality control procedures add significant expense to production.
Early consideration of manufacturing constraints prevents these issues and enables optimal process selection from the beginning.
Understanding Converted Parts Manufacturing

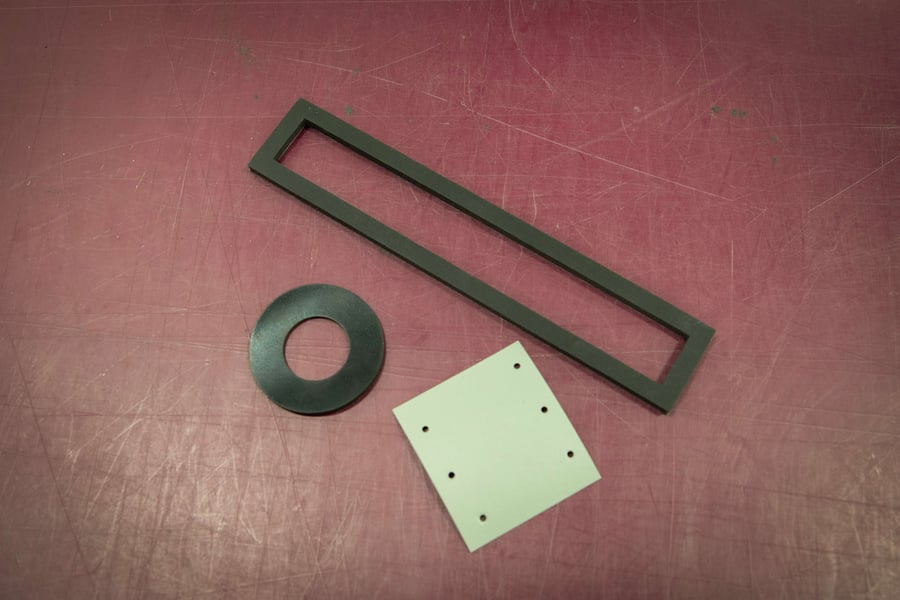

Converted parts encompass custom gaskets, seals, thermal interface materials, and other components cut from sheet stock materials.Manufacturing processes include die cutting, waterjet cutting, CNC knife cutting, and specialized techniques depending on material properties and geometric requirements.
The choice of manufacturing process depends heavily on material properties (e.g. thickness, density, hardness, etc.), geometry complexity, and tolerance requirements. Thin films often require CNC knife cutting, while thicker materials may utilize waterjet or die cutting methods.
Process selection directly affects achievable tolerances and production efficiency. Understanding these relationships enables better design decisions during the specification phase.
Read our Complete Guide to Custom Gasket Production
Tolerance Specifications: The Primary Cost and Lead Time Driver
Tolerance requirements represent the single most significant factor affecting manufacturing costs and lead times for converted parts. Engineers frequently apply machining-style tolerances to converted parts without understanding the manufacturing implications.
The relationship between specified tolerances and machine capabilities determines both feasibility and cost. When tolerances exceed machine capabilities, manufacturers must produce additional parts to achieve statistical compliance, increasing material costs and production time.
Standard Tolerance Guidelines
Modus Advanced follows industry-standard tolerance tables based on material type and manufacturing process. These standards, derived from the Rubber Manufacturers Association (RMA), provide realistic expectations for different material categories:
Film Materials (BL1):
- Under 1.0": ±0.010"
- 1.0" to 6.3": ±0.015"
- Over 6.3": multiply dimension by 0.004
Solid or Dense Materials (BL2):
- Under 1.0": ±0.015"
- 1.0" to 6.3": ±0.025"
- Over 6.3": multiply dimension by 0.01
Sponge or Foam Materials (BL3):
- Under 1.0": ±0.025"
- 1.0" to 6.3": ±0.032"
- Over 6.3": multiply dimension by 0.0063
Machine Capability Example
Consider a waterjet cutting system capable of ±0.005" (±0.127mm) tolerance. When parts require ±0.004" (±0.1mm) tolerance, the manufacturing process operates below statistical capability. This scenario requires producing approximately 30% additional parts to ensure adequate good parts for delivery.
The manufacturer must order additional material and plan for extended production time, significantly increasing project costs. Understanding machine capabilities during design prevents these costly situations.
Geometry Complexity and Manufacturing Impact
Complex geometries present unique challenges in converted parts manufacturing. The relationship between geometric complexity and tolerance achievability becomes critical during the design phase.
AI-driven design optimization tools are increasingly helping engineers balance geometric complexity with manufacturing constraints. These systems can predict manufacturability issues and suggest design alternatives early in the development process.
Simple geometric shapes with consistent features optimize manufacturing efficiency and reduce production time. Complex curves and varying radii require specialized tooling and extended setup procedures.
Radius Limitations
Small radius features create manufacturing constraints across different cutting processes. CNC knife cutting struggles with tight radii due to blade limitations, while waterjet cutting faces restrictions based on stream diameter.
Geometric Design Guidelines
Manufacturing efficiency improves dramatically when engineers design with process limitations in mind rather than requiring process adaptation to geometric complexity.
Consider these design approaches:
- Use consistent radii throughout the part design
- Minimize the number of different radius sizes
- Avoid extremely small radii unless functionally required
- Design with manufacturing process capabilities in mind
- Limit complex curves that require specialized cutting techniques
Material Selection and Manufacturing Considerations
Material properties directly influence both manufacturing process selection and achievable tolerances. Understanding these relationships enables better design decisions during the specification phase.
Sustainable material selection is becoming increasingly important as manufacturers focus on environmental impact and supply chain resilience. Advanced materials with improved performance characteristics are enabling new design possibilities while supporting sustainability goals.
Different material families present distinct manufacturing characteristics that affect process selection, quality requirements, and cost factors.
Material Categories and Implications
- Film Materials: Require specialized handling due to thickness limitations. Waterjet cutting may not be suitable for very thin films due to material distortion during cutting.
- Dense Rubber Materials: Offer good dimensional stability but may require specific cutting processes for optimal edge quality. Generally provide better tolerance capability than foam materials.
- Foam Materials: Present challenges with compression during cutting, affecting final dimensions and edge quality. Require careful process selection to minimize material distortion.
- Frozen Materials: Require special handling procedures and may be extremely delicate during processing. Must be maintained at \-25°C (-13°F) and returned to storage immediately after cutting.
Temperature Considerations
Some materials require temperature-controlled environments during manufacturing. Frozen materials must be maintained at specific temperatures throughout the production process, adding complexity and potential lead time extensions.
Drawing Specifications and Inspection Impact
Drawing specifications determine inspection requirements, which significantly affect manufacturing lead times. Engineers often unknowingly specify inspection routines that add substantial time to production schedules.
Digital quality systems and automated inspection technologies are reducing inspection time while improving accuracy. However, specification complexity still drives inspection requirements and associated costs.
The way engineers specify tolerances and geometric requirements directly translates into inspection procedures. Complex geometric callouts can require extensive measurement routines that extend production schedules.
GD&T Considerations for Converted Parts
Geometric Dimensioning and Tolerancing (GD&T) callouts designed for machined parts may create unnecessary complexity when applied to converted parts. Profile tolerances, for example, require comprehensive inspection of entire part geometries.
Most converted parts serve as compliant sealing elements that conform to their installation environment. Specifying overall dimensional requirements often proves more practical than detailed geometric controls.
CAD vs. Drawing Precedence
Engineers must clearly specify which takes precedence when discrepancies exist between CAD models and technical drawings. This specification prevents manufacturing delays and ensures proper part production.
Assembly Considerations and Tolerance Stack-Up
Design for manufacturability extends beyond individual part production to assembly considerations. Tolerance stack-up analysis during the design phase prevents costly issues during production.
Understanding how individual part tolerances combine during assembly prevents interference fits and assembly difficulties that can cause production delays.
PSA and Assembly Challenges
Parts requiring pressure-sensitive adhesive (PSA) application present unique assembly challenges. Small parts provide limited adhesive contact area, reducing bond strength and complicating installation.
Large parts with PSA enable better pressure distribution during installation and improved adhesive performance. Part geometry also affects assembly success rates.
Some materials require a primer prior to applying PSA. In these cases, it will add both cost and lead time.
Geometric Assembly Factors
Part geometry affects assembly difficulty and success rates. Complex shapes or deep pocket installations increase the likelihood of assembly errors and part fallout.
Design considerations that improve assembly success:
- Minimize installation depth requirements
- Provide adequate clearance for installation tools
- Consider part flexibility during installation
- Design for consistent pressure distribution
When Strict Tolerances or Complex Geometries are Non-Negotiable
Some applications genuinely require tolerances that exceed standard converting capabilities or geometries that push the boundaries of conventional manufacturing processes. Space applications, critical medical devices, and advanced defense systems often demand precision that cannot be compromised, regardless of cost or complexity.
We understand that these requirements aren't arbitrary over-engineering — they're essential for mission success, patient safety, or operational effectiveness. When your application falls into this category, the goal of this article's guidance isn't to discourage tight specifications but to help you understand the trade-offs involved.
Understanding the Implications
When tolerances approach or exceed standard manufacturing capabilities, several factors come into play:
- Lead Time Extensions: Custom solutions require development time, specialized tooling, and iterative testing to achieve repeatability. Projects may require weeks or months of engineering development before production begins.
- Cost Increases: Achieving extreme precision often requires innovative approaches, specialized fixturing, custom processes, and increased material allowances. These factors can significantly impact project budgets.
- Material Considerations: Some cutting-edge applications require exotic materials that behave unpredictably during conventional processing, necessitating entirely new manufacturing approaches.
The Innovation Partnership Approach
When standard processes fall short, success depends on partnering with manufacturers who view challenging specifications as engineering problems to solve rather than obstacles to avoid.
For example, one space application required extremely tight profile tolerances on rubber-like materials — a specification that exceeded standard waterjet capabilities. Rather than declining the project, our engineering team developed a hybrid cutting approach that combined waterjet precision with custom fixturing innovations. The solution included modified nozzle configurations, specialized adhesive bonding systems, and optimized lead-in/lead-out techniques that achieved the seemingly impossible specifications.
This type of creative problem-solving requires manufacturers who:
- Approach challenges from first principles rather than conventional limitations
- Invest in custom tooling and process development for critical applications
- Maintain engineering expertise capable of developing innovative solutions
- Commit to achieving specifications rather than explaining why they're impossible
Making Informed Decisions
If your application requires extreme precision or complex geometries, engage with potential manufacturing partners early in the design process. Discuss not just whether specifications are achievable, but how the manufacturer plans to achieve them and what the associated timeline and cost implications will be.
The right manufacturing partner will provide transparent communication about challenges, realistic timelines for solution development, and clear cost implications for achieving your requirements. This partnership approach ensures that when precision cannot be compromised, your manufacturing partner becomes an extension of your engineering team rather than a limitation on your design possibilities.
Quality Control Integration: Quality Requirements and Their Impact on Lead Times and Costs
Quality inspection requirements can dramatically affect production schedules and costs. The difference between standard sampling inspection and 100% inspection can more than double manufacturing lead times.
Advanced inspection technologies including automated optical inspection (AOI) and AI-powered quality systems are reducing inspection time while improving accuracy. However, specification complexity still drives inspection requirements and costs.
Understanding quality requirements during the design phase enables engineers to make informed decisions about inspection levels and their associated costs.
Inspection Time Considerations
Different measurement techniques require varying amounts of time per part, which directly affects your project timeline and costs. Complex geometric measurements take significantly longer than simple dimensional checks, and these differences compound quickly across production quantities.
When specifying inspection requirements, consider that measurement complexity directly correlates with production time. A part requiring comprehensive geometric verification may take several times longer to inspect than one needing only basic dimensional confirmation.
Best Fit vs. Exact Measurement
For certain applications, "best fit" measurement techniques provide adequate quality assurance while reducing inspection time and costs. Understanding the difference between these approaches helps you specify appropriate measurement methods for your application.
- Exact Measurement involves taking precise dimensional readings at specific points according to drawing specifications. This approach provides definitive pass/fail results but requires more time and may reject parts that would function perfectly well in their intended application.
- Best Fit Measurement uses mathematical algorithms to find the optimal geometric relationship between measured points and the intended design. Rather than checking specific points against tight tolerances, this method evaluates how well the overall part geometry matches the design intent. The measurement system determines the best possible fit between actual part geometry and nominal dimensions, providing a more practical assessment of part functionality.
Best fit measurements work particularly well for compliant materials like gaskets and seals, where the part will conform to its installation environment during use. A gasket that shows minor geometric variations under best fit analysis may still provide excellent sealing performance once compressed into position.
Standard vs. 100% Inspection
Standard AQL (Acceptable Quality Level) sampling requires inspecting a statistical sample of parts based on lot size. This approach provides adequate quality assurance for most applications while minimizing inspection time.
100% inspection requires measuring every single part produced, which can extend lead times by days or weeks depending on part complexity and quantity.
Standard AQL sampling levels are based on lot size and acceptable risk levels. For most converted parts applications, standard sampling provides adequate quality assurance.
Example: A typical machined part requiring 100% inspection takes approximately as long to inspect as it did to manufacture. For complex parts, inspection time may exceed manufacturing time.
Quality Manual Considerations
When establishing quality requirements for your project, consider that many customer quality manuals we see specify 100% inspection requirements by default. These requirements are often carried forward from previous projects without evaluating their necessity for your specific application (and in most cases we find that customers don't even need or want that level of inspection, and simply failed to realize it was called out in their quality manual).
Review your quality requirements during the initial contract phase to ensure they align with your actual needs. Many applications can achieve adequate quality assurance through standard AQL sampling while significantly reducing both lead times and costs.
100% inspection requirements will significantly increase your part costs due to the additional labor and time required to measure every single component. In many cases, inspection time equals or exceeds manufacturing time, effectively doubling your production costs for the quality control portion of the project.
Partner with Modus Advanced for Optimal Results
Design for manufacturability requires balancing functional requirements with manufacturing realities. Modus Advanced's engineering team provides Design for Manufacturability (DfM) reviews that identify optimization opportunities early in the design cycle.
Our vertically integrated capabilities span multiple manufacturing processes, enabling optimal process selection for each application. With AS9100 and ISO 9001 certifications, we maintain rigorous quality standards while optimizing manufacturing efficiency.
Our engineering expertise — representing more than 10% of our staff — ensures that design feedback addresses both functional requirements and manufacturing practicalities. This collaboration results in parts that meet performance specifications while optimizing cost and delivery schedules.
When lives depend on your innovation, choose a manufacturing partner who understands the critical nature of your applications. Our comprehensive tolerance guidelines, process capabilities, and quality systems work together to accelerate your path to market while ensuring the reliability your applications demand.
Contact Modus Advanced to discuss your converted parts requirements and discover how design for manufacturability principles can optimize your next project's success.
