Design for Manufacturability: The Complete Engineering Guide to Manufacturing-Optimized Design

When your designs safeguard frontline missions, enable safe aerospace operations, or support patient outcomes, manufacturability is not just about meeting specifications—it is about delivering performance where failure is not an option.
Download PDF
DFM Pillar Hero (1)
Table of Contents
Table of Contents

Design for Manufacturability: Where Engineering Decisions Meet Real-World Impact

In aerospace, defense, and medical technology, the design decisions you make aren’t just technical—they’re consequential. When your innovations guide aircraft, support warfighters, or enable life-saving devices, efficient, reliable manufacturing becomes a vital part of product performance.

Design for manufacturability (DFM) transforms engineering intent into real-world outcomes by aligning design choices with manufacturing realities:

  • Faster Product Launches: DFM shortens development timelines by eliminating manufacturing roadblocks early in the design cycle
  • Lower Production Costs: Smart design reduces unnecessary complexity, tooling changes, and material waste
  • Improved Reliability: Manufacturable designs enhance repeatability, helping ensure consistent quality in every production run
  • Streamlined Compliance: DFM supports efficient validation for regulatory and customer quality standards
  • Risk Reduction: Minimizing complexity at the design stage avoids costly redesigns and delays during scaling

This guide provides engineers with actionable strategies to apply DFM principles across industries where precision and performance cannot be compromised. You’ll learn how to reduce costs without sacrificing function, how to design with specific manufacturing processes in mind, and how to balance performance with production efficiency.

Whether you're optimizing a CNC-machined aerospace component, developing FIP-sealed enclosures for medical devices, or scaling production for custom defense parts, the principles in this guide will help you deliver manufacturable designs that meet mission-critical demands.

Don't have time to read this? Take a copy with you:

Download PDF
Chapter 1

Design for Manufacturability Basics

Design decisions made during the concept phase determine manufacturing costs, lead times, and part quality more than any other factor in product development. Engineers who understand design for manufacturability principles can reduce manufacturing costs by 15-40% and cut lead times by 25-60% compared to non-optimized designs.

The complexity of aerospace, defense, and medical device applications demands precision, but over-engineering can create unnecessary manufacturing challenges that delay critical innovations from reaching the people who need them. Strategic design for manufacturing cost reduction choices enable engineers to achieve required performance while optimizing manufacturing efficiency and accelerating time-to-market.

What is Design for Manufacturability?

Design for manufacturability (DFM) is a systematic approach to product design that optimizes parts for efficient, cost-effective manufacturing processes. Also known as design for manufacturing, DFM integrates manufacturing considerations directly into the design process from the beginning rather than designing parts and then figuring out how to make them.

The core principle of design for manufacturability involves understanding manufacturing process capabilities and designing within those parameters to minimize complexity, reduce tooling requirements, and eliminate the need for specialized equipment or multiple setups. This approach transforms potentially problematic manufacturing operations into streamlined processes that deliver reliable results.

Key DFM principles include:

  • Designing features that align with standard tooling capabilities
  • Minimizing the number of manufacturing operations required
  • Specifying appropriate tolerances that balance function with manufacturability
  • Optimizing part geometry to reduce material waste and manufacturing time
  • Creating designs that leverage existing manufacturing infrastructure

Read more: Design for Manufacturability Principles Every Engineer Should Know

Effective DFM implementation prevents costly redesign cycles and ensures optimal production efficiency. The goal is achieving required performance specifications through the most manufacturable approach possible, rather than forcing manufacturing processes to accommodate overly complex designs.

quality-staff-running-machine-02
Related

How Modus's Process for Custom Manufacturing Services Works

Learn more about how our process works from end-to-end to ensure your parts are delivered with quality and precision.

See How
Chapter 2

Why Design for Manufacturability Matters

Manufacturing complexity directly impacts project success across multiple dimensions. According to industry research, approximately 70% of product cost is determined during the design phase, making design for manufacturability crucial for cost control. Both lead time and cost considerations drive manufacturing decisions, though their relative importance varies by industry and project phase.

Primary Customer Priorities:

  • Lead Time Reduction: Faster prototyping enables quicker design validation and market entry
  • Cost Control: Efficient manufacturing reduces per-unit costs and overall project budgets
  • Quality Assurance: Manufacturable designs reduce errors and improve reliability
  • Risk Mitigation: Simplified manufacturing processes minimize production delays and quality issues

Industry-Specific Manufacturing Impacts

Aerospace and Defense

Weight restrictions and precision requirements create challenging trade-offs between optimal design and manufacturability. Speed often takes precedence during development phases where getting a prototype into testing weeks earlier can accelerate critical system deployment. Cost becomes equally important for production contracts where budget constraints directly impact program viability.

Mission-critical applications in aerospace and defense cannot afford manufacturing delays that compromise deployment schedules. When a new guidance system or life-support component is needed in the field, every day saved in development and production directly impacts operational readiness and potentially saves lives. Understanding DFM guidelines for aerospace component design becomes essential for mission success.

Medical Devices

Patient safety depends on reliable, repeatable manufacturing processes. Development speed ensures life-saving devices reach patients sooner, while cost efficiency makes these technologies accessible to broader patient populations who need them.

Consider the development of a new ventilator component during a health crisis. Manufacturing delays can literally determine how many patients receive life-saving treatment, making design for manufacturability in medical device development a critical factor in public health outcomes.

The Multiplier Effect

A single design decision can cascade through multiple manufacturing steps. What appears as a minor design choice can add days to programming time, require specialized tooling with extended lead times, and significantly increase per-unit costs through extended operations and complex inspection procedures.

Design for manufacturability transforms these potential bottlenecks into streamlined processes that accelerate your path from concept to life-changing innovation while keeping projects within budget constraints.

8 RF Shielding Techniques to Know About (1)
Related

The Benefits of Vertical Integration

Find out how vertical integration can improve part quality and reduce lead times.

See How
Chapter 3

Understanding Manufacturing Process Categories

Manufacturing processes fall into three primary categories, each with distinct capabilities and design considerations. Understanding these differences enables engineers to optimize designs for their intended manufacturing method and implement effective design for manufacturability strategies.

CNC Machining Considerations

CNC machining removes material from solid stock to create precise components. The process excels at achieving tight tolerances and complex geometries but requires careful consideration of tooling limitations and setup requirements.

Material removal processes create parts by cutting away unwanted material using rotating cutting tools. The geometry of these tools determines achievable features and directly impacts design possibilities.

The fundamental limitation in CNC machining stems from tool geometry — cylindrical cutting tools cannot create sharp internal corners, and small tools deflect under cutting forces, affecting surface finish and dimensional accuracy. Understanding these physical constraints during design prevents costly manufacturing complications.

Tool accessibility considerations become particularly important for complex parts with internal features. Deep pockets, narrow slots, and enclosed cavities may require specialized tooling or multiple setups that significantly increase manufacturing time and costs.

Key CNC design factors include:

  • Tool accessibility for all machined features
  • Radius requirements for internal corners
  • Setup minimization through feature alignment
  • Tolerance specifications that match machine capabilities
  • Material selection affecting cutting speeds and tool life
  • Surface finish requirements and their manufacturing implications

Understanding these limitations during design prevents manufacturing complications and reduces both costs and lead times significantly. Modern CNC equipment offers remarkable capabilities, but optimal results require designs that work with rather than against fundamental machining principles. Engineers must understand why your beautiful CAD model costs 10x more to machine when design choices ignore manufacturing realities.

Form-in-Place (FIP) Dispensing Characteristics

Form-in-place dispensing creates gaskets by applying liquid material onto housing surfaces where it cures to form sealing elements. The process requires careful consideration of both housing design and dispensing equipment capabilities.

Liquid material application demands understanding of flow characteristics, curing behavior, and adhesion requirements. Housing geometry directly affects dispensing accuracy and gasket formation quality.

The dispensing process involves precise control of material flow rates, needle positioning, and cure conditions. Unlike machined parts where material properties remain constant, FIP materials undergo chemical changes during curing that affect final dimensions and properties.

Material behavior during dispensing includes flow characteristics that determine bead shape, adhesion properties that affect bonding to housing surfaces, and cure kinetics that influence final gasket properties. These factors interact with housing geometry to determine overall gasket quality.

Critical FIP design considerations include:

  • Housing wall thickness requirements
  • Surface finish specifications for proper adhesion
  • Dispensing path accessibility and complexity
  • Compression stop design versus groove configurations
  • Material compatibility with housing substrates
  • Environmental conditions during dispensing and curing
  • Quality control methods for dispensed gaskets

Proper FIP design prevents adhesion failures, dimensional variations, and manufacturing complications that compromise sealing performance. The process offers exceptional precision for small, complex gaskets but requires housing designs optimized for the dispensing operation. Understanding design for manufacturability in form-in-place dispensing ensures optimal results.

Converting Process Fundamentals

Converting processes cut, shape, and form sheet materials into custom configurations. Unlike machining where material is removed, converting relies on cutting processes that preserve material integrity while achieving precise dimensions.

Sheet material processing involves various cutting technologies including die cutting, waterjet cutting, and CNC knife cutting. Process selection depends on material properties, geometric requirements, and tolerance specifications.

Each cutting method presents distinct advantages and limitations. Die cutting offers excellent efficiency for high volumes but requires hard tooling with associated costs and lead times. Waterjet cutting provides exceptional precision and material versatility but operates at slower speeds. CNC knife cutting enables rapid prototyping and small volumes but has thickness and material limitations.

Material thickness considerations significantly affect process selection and achievable features. Thin films may require specialized handling to prevent tearing or distortion during cutting. Thick materials may exceed cutting capabilities or require multiple passes that affect edge quality.

Essential converting design factors include:

  • Material selection affecting process options
  • Geometric complexity and its manufacturing impact
  • Tolerance specifications within process capabilities
  • Quality requirements and inspection implications
  • Edge quality requirements for sealing applications
  • Production volume considerations affecting tooling choices
  • Assembly requirements affecting part geometry

Converting processes offer excellent efficiency for certain applications but require design approaches different from machined components. Understanding material behavior during cutting helps engineers optimize converted parts and custom gaskets for modern manufacturing while achieving both performance and manufacturability objectives.

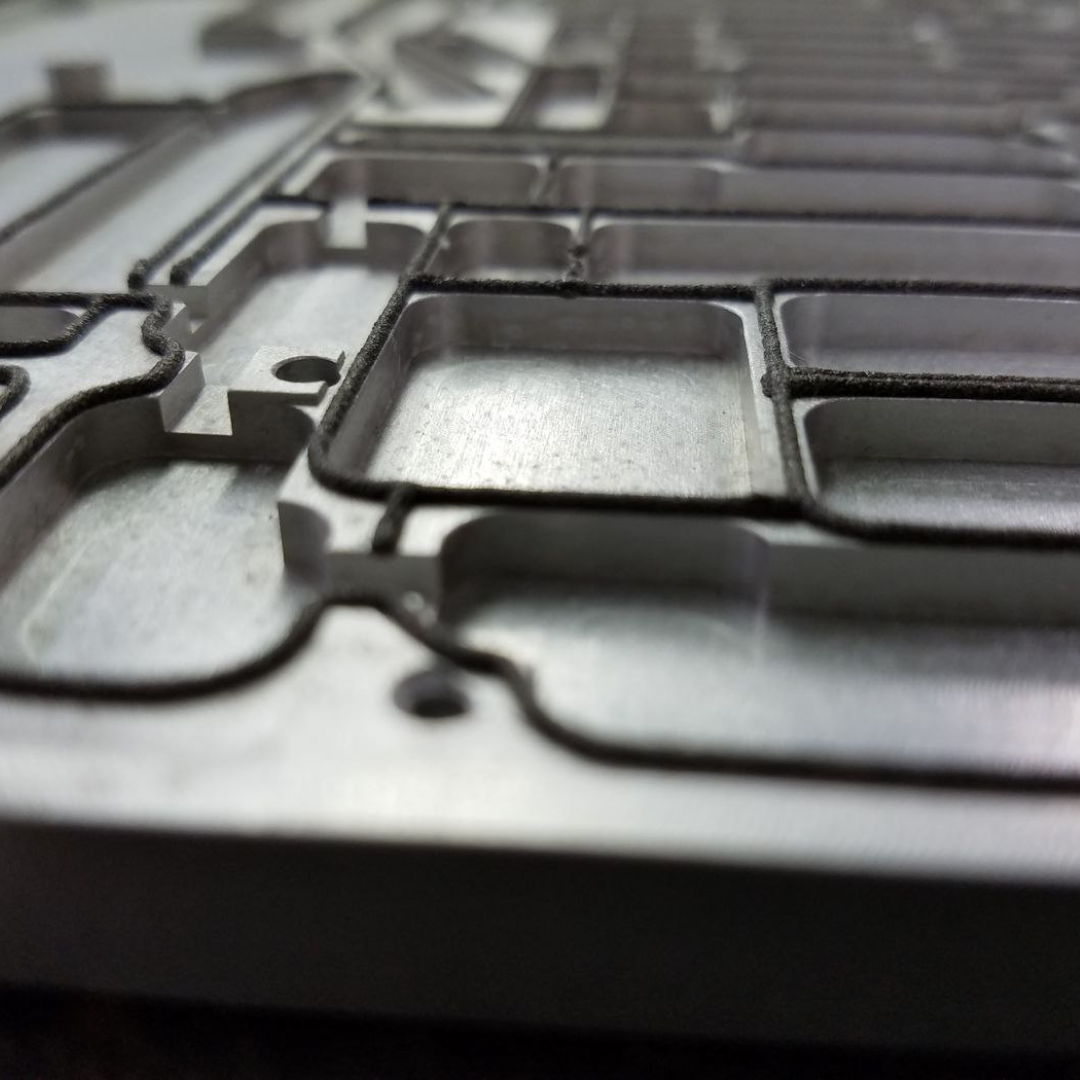

FIP 12-15-14 #14
Capabilities

Review all of Modus's Manufacturing Capabilities

See the full breadth of custom manufacturing services we can offer.

Capabilities
Chapter 4

CNC Machining Design for Manufacturability

CNC machining design requires understanding how cutting tools interact with part geometry. Tool limitations determine achievable features and directly impact both manufacturing complexity and costs.

Critical Geometry Guidelines

Sharp internal corners represent one of the most common design issues in machined parts. End mills cannot create true 90-degree internal corners due to their cylindrical geometry, requiring radius features for all internal corners.

The physical impossibility of creating sharp internal corners with rotating tools means that design specifications calling for zero-radius corners will be approximated during manufacturing, potentially creating dimensional variations that affect part function.

Corner Radius Requirements:

Feature Type

Minimum Radius

Recommended Radius

Manufacturing Benefit

Internal corners0.005" (0.13mm)0.030" (0.76mm)Standard tooling compatibility
Deep pockets0.010" (0.25mm)0.060" (1.52mm)Reduced tool deflection
Thin wall features0.020" (0.51mm)0.080" (2.03mm)Improved rigidity during cutting

Larger radii enable the use of larger, more rigid cutting tools that resist deflection and provide superior surface finishes. They also reduce programming complexity and eliminate the need for specialized small-diameter tooling with extended lead times.

Tool deflection effects become particularly pronounced in deep cavities or thin-walled features where cutting forces can cause dimensional variations. Designing with adequate radii and wall thickness prevents these issues while improving surface finish quality.

Knife edges occur where two surfaces meet at extremely acute angles, creating fragile features prone to chipping during handling. Adding small outside fillets (0.005-0.015"/0.13-0.38mm radius) eliminates knife edges while providing controlled, consistent edges that machine cleanly.

Manufacturing teams typically add these fillets during production regardless of drawing specifications, making it more efficient to include them in the original design. This proactive approach ensures consistent results and prevents handling damage during subsequent operations.

Complex Curve Optimization

Complex curves and varying radii significantly increase manufacturing complexity without always providing functional benefits. These features require specialized programming, multiple tool changes, and extended machining times.

Programming complexity for complex curves involves generating thousands of individual machine movements that must maintain surface finish quality and dimensional accuracy. Each curve requires specific tool paths that may not optimize cutting efficiency, leading to extended machining times.

Manufacturing impact of complex curves includes:

  • Increased programming time for CNC operations
  • Multiple tool changes requiring different cutting geometries
  • Extended setup and inspection procedures
  • Higher probability of manufacturing errors
  • Specialized tooling requirements for optimal surface finish
  • Increased material waste from complex tool paths

Tool selection challenges arise when complex curves require multiple different cutting geometries on a single part. Each tool change adds setup time and introduces potential for positional errors that affect final part quality.

Curve optimization strategies:

  • Use consistent radii wherever possible to minimize tool changes
  • Eliminate ornamental curves that don't serve functional purposes
  • Consider breaking complex curves into simpler geometric segments
  • Align curved features with standard tooling capabilities
  • Evaluate whether additive manufacturing might be more suitable for extremely complex geometries

Simple, consistent geometry machines faster and more reliably than complex curved surfaces, making this a critical design consideration for rapid prototyping and production efficiency. When complex curves are functionally required, understanding their manufacturing implications helps engineers make informed decisions about design trade-offs.

Axis Alignment and Setup Considerations

Feature orientation significantly impacts manufacturing complexity and cost. Parts requiring five-axis machining operations cost substantially more and take longer to produce than those manageable on standard three-axis equipment.

Five-axis machining advantages include the ability to access complex geometries in single setups and create features that would be impossible with three-axis operations. However, these advantages come with substantial cost increases and extended programming requirements.

Five-axis requirements include:

  • Angled holes or slots not aligned with primary axes
  • Complex compound angles on multiple surfaces
  • Undercut features accessible only from non-standard orientations
  • Deep cavities with feature access from multiple angles
  • Parts requiring machining from multiple directions without repositioning

Equipment availability for five-axis operations is typically more limited than three-axis capabilities, potentially affecting scheduling and lead times. The specialized nature of five-axis programming also requires more experienced operators, contributing to higher costs.

Design optimization strategies:

  • Align all features with X, Y, or Z axes when possible
  • Minimize the number of faces requiring machined features
  • Group angled features to reduce setup changes
  • Consider redesigning undercuts as through-features
  • Evaluate whether part splitting might enable three-axis manufacturing
  • Design with fixture requirements in mind to minimize setups

Manufacturing efficiency improves dramatically when parts can be completed in three-axis operations with minimal setups. When five-axis operations are unavoidable, grouping complex features and minimizing setup changes helps control costs.

Threading and Hardware Integration

Threading specifications and hardware integration significantly affect machining complexity and costs. Proper specification of threaded features prevents manufacturing delays and ensures optimal results.

Thread specification methods vary in their manufacturing implications. Specifying thread class and position requirements while allowing manufacturers flexibility in drilling and tapping processes typically yields better results than dictating specific tool selections.

Tap depth considerations require understanding that every tap has thread lead-in requirements that affect drilling depth specifications:

  • Bottoming tap: 1 to 1.5 thread lead-in
  • Plug tap: 3 to 5 thread lead-in
  • Taper tap: 8 to 10 thread lead-in

Insufficient drilling depth prevents full thread engagement, while excessive depth may weaken thin-walled features. Design optimization involves balancing these requirements with structural integrity needs.

Wall clearance requirements become critical when tapped holes are located near internal walls or pockets. Breakthrough into adjacent cavities creates quality issues and may require design modifications or additional operations to resolve.

Hardware installation considerations include access requirements for assembly tools, clearance for fastener heads, and load distribution through the threaded joint. These factors should be evaluated during design to prevent assembly complications.

New call-to-action

Read the full CNC Machining guide.

Chapter 5

Form-in-Place Gasket Design Optimization

Form-in-place dispensing creates gaskets by applying liquid material onto housing surfaces where it cures to form precise sealing elements. Housing design directly impacts dispensing accuracy, gasket formation, and long-term sealing reliability.

Housing Design Requirements

Proper housing design facilitates accurate, consistent dispensing while preventing manufacturing complications that compromise gasket quality.

Wall thickness requirements prevent gasket overflow and ensure controlled dispensing:

Housing Material

Minimum Wall Thickness

Recommended Thickness

Key Benefits

Metal0.8mm (0.031")1.0mm (0.039") or greaterPrevents overflow, easier programming
Plastic1.5mm (0.059")2.0mm (0.079") or greaterAccommodates material flexibility

Maintaining consistent wall thickness across the dispensing path simplifies programming and improves gasket consistency. Variable wall thickness forces dispensing equipment to constantly adjust flow rates and positioning, increasing both programming complexity and potential for dimensional variations.

Thermal expansion considerations affect housing design for applications experiencing temperature variations. Different coefficients of thermal expansion between housing materials and gasket materials can create sealing failures if not properly addressed during design.

Surface preparation requirements significantly impact gasket adhesion and long-term reliability. Extremely smooth surface finishes may actually impair adhesion for certain gasket materials, requiring surface texture modification or primer application.

Compression Stops vs. Groove Design

Design for manufacturability strongly favors compression stops over grooves for FIP applications. Grooves create manufacturing challenges that impact both quality and lead times through asymmetric gasket curing.

When gasket material is dispensed into narrow grooves, it contacts groove walls during curing, causing asymmetric gasket formation that results in inconsistent compression forces and potentially ineffective sealing.

Groove-related manufacturing challenges include:

  • Asymmetric curing creating irregular compression characteristics
  • Difficult removal of excess material that flows into groove corners
  • Complex inspection requirements for groove-confined gaskets
  • Increased machining complexity for groove creation
  • Potential adhesion failures at groove wall interfaces

Compression stops provide:

  • Symmetrical gasket curing without wall interference
  • Controlled compression that prevents gasket damage
  • Simplified CNC machining requirements
  • Reduced programming time and complexity
  • Easier visual inspection of gasket formation
  • More predictable sealing performance characteristics

This approach reduces inspection complexity and improves manufacturing consistency while preventing gasket damage from over-compression. Compression stops also enable more accurate control of gasket compression percentages, which directly affects sealing effectiveness.

Dispensing Path Considerations

Gasket path design balances sealing requirements with manufacturing feasibility. Complex path geometries and multiple intersections create dispensing challenges that impact both quality and production efficiency.

Path complexity analysis should consider dispensing equipment capabilities, material flow characteristics, and quality control requirements. Simple paths enable faster dispensing with more consistent results.

Path optimization strategies:

  • Combine multiple small compartments where functionally acceptable
  • Space gasket intersections to prevent material buildup
  • Design straight-line paths when possible
  • Minimize the number of start and stop points
  • Consider dispensing direction relative to part orientation
  • Evaluate material flow characteristics during path planning

Multiple dispense lines converging in small areas often result in material buildup that creates irregular gasket profiles, making path simplification critical for consistent results.

Start and stop location optimization significantly affects gasket quality. These locations typically show dimensional variations due to material flow dynamics, making their placement critical for maintaining sealing effectiveness.

Pocket depth considerations: Gasket paths located in pockets deeper than 0.25" (6.35mm) require extended reach dispensing capabilities that introduce manufacturing challenges including longer dispensing needles susceptible to clogging and clearance issues between gasket paths and pocket walls.

Extended reach dispensing challenges include:

  • Needle deflection affecting dispensing accuracy
  • Increased risk of needle clogging with particle-filled materials
  • Difficulty maintaining consistent material flow
  • Complex programming for deep cavity access
  • Potential for needle contact with cavity walls

Material-Specific Design Considerations

Different FIP materials exhibit varying behavior during dispensing and curing, requiring design approaches tailored to specific material characteristics.

Conductive materials containing metallic fillers present unique dispensing challenges. Large particles can obstruct narrow dispensing needles, while magnetic fillers may interact with ferrous hardware near dispensing paths.

Material viscosity effects determine flow characteristics and achievable bead dimensions. High-viscosity materials resist slumping on vertical surfaces but may be difficult to dispense through small needles. Low-viscosity materials flow easily but may not maintain shape on complex geometries.

Cure chemistry considerations affect adhesion requirements, environmental sensitivity, and final properties. Moisture-cure materials require controlled humidity during dispensing, while heat-cure materials need specific temperature profiles for optimal results.

Chemical compatibility between gasket materials and housing substrates affects adhesion and long-term reliability. Some material combinations require primers or surface treatments for reliable bonding.

New call-to-action

Read the full Form-In-Place Gasket guide.

Chapter 6

Converting and Custom Gasket Design Principles

Converting processes cut, shape, and form sheet materials into custom configurations. These processes rely on precise cutting technologies that each have specific capabilities and limitations affecting design approaches.

Material Selection Impact

Material properties directly influence both manufacturing process selection and achievable tolerances. Understanding these relationships enables better design decisions during the specification phase.

Material behavior during cutting varies significantly between different elastomer families. Dense materials typically cut cleanly with sharp edges, while foam materials may compress during cutting, affecting final dimensions and edge quality.

Material categories and manufacturing implications:

  • Film Materials: Require specialized handling due to thickness limitations, may not be suitable for waterjet cutting due to material distortion, often achieve tightest tolerances due to minimal thickness variation
  • Dense Rubber Materials: Offer good dimensional stability and generally provide better tolerance capability than foam materials, machine well with most cutting processes
  • Foam Materials: Present challenges with compression during cutting, affecting final dimensions and edge quality, require careful process selection to minimize distortion
  • Frozen Materials: Require temperature-controlled environments at -25°C (-13°F) throughout production, adding complexity and potential lead time extensions, extremely delicate during handling

Chemical resistance requirements affect both material selection and cutting process choices. Some aggressive chemicals used in cutting fluids may affect material properties, requiring alternative cutting approaches.

Temperature stability during manufacturing becomes critical for materials with low thermal limits. Waterjet cutting generates minimal heat, while some die cutting processes may require temperature monitoring to prevent material degradation.

Different material families present distinct manufacturing characteristics that affect process selection, quality requirements, and cost factors. Early material selection for manufacturability based on both performance and manufacturability requirements prevents costly process changes during production.

Geometry Complexity Management

Complex geometries present unique challenges in converted parts manufacturing. The relationship between geometric complexity and tolerance achievability becomes critical during the design phase.

Simple geometric shapes with consistent features optimize manufacturing efficiency and reduce production time. Complex curves and varying radii require specialized tooling and extended setup procedures.

Cutting process limitations vary significantly between different technologies. Understanding these limitations during design prevents specification of unachievable features that require process changes or redesign cycles.

Waterjet cutting capabilities:

  • Excellent for complex curves and precise contours
  • Limited by material thickness and cutting speed
  • Potential edge taper requiring design consideration
  • Superior accuracy for most material types

Die cutting characteristics:

  • Optimal for high-volume production with consistent geometry
  • Requires hard tooling with associated costs and lead times
  • Limited geometric complexity but excellent repeatability
  • Sharp, clean edges with minimal material distortion

CNC knife cutting features:

  • Ideal for prototyping and small-volume production
  • Limited by material thickness and blade geometry
  • Excellent for rapid design iterations
  • Material-dependent edge quality

Radius limitations: Small radius features create manufacturing constraints across different cutting processes. CNC knife cutting struggles with tight radii due to blade limitations, while waterjet cutting faces restrictions based on stream diameter and cutting speed optimization.

Design optimization approaches:

  • Use consistent radii throughout the part design
  • Minimize the number of different radius sizes
  • Avoid extremely small radii unless functionally required
  • Design with manufacturing process capabilities in mind
  • Limit complex curves that require specialized cutting techniques
  • Consider material flow and deformation during cutting operations

Manufacturing efficiency improves dramatically when engineers design with process limitations in mind rather than requiring process adaptation to geometric complexity.

Assembly and Installation Considerations

Converted parts often serve as sealing elements in complex assemblies where installation requirements significantly affect design success. Understanding assembly constraints during design prevents costly field issues and assembly delays.

Pressure-sensitive adhesive (PSA) applications require adequate surface area for reliable bonding. Small parts provide limited adhesive contact area, reducing bond strength and complicating installation procedures.

Installation environment considerations include:

  • Available access for installation tools and procedures
  • Compression requirements during adhesive cure cycles
  • Environmental conditions affecting adhesive performance
  • Potential for contamination affecting bond strength

Part geometry effects on assembly:

  • Complex shapes may be difficult to position accurately during installation
  • Deep pocket installations increase assembly complexity and error rates
  • Flexible materials may distort during installation, affecting final fit
  • Large parts may require specialized handling equipment

Tolerance stack-up analysis becomes critical when multiple parts combine in assembly. Individual part tolerances accumulate through the assembly process, potentially creating interference fits or inadequate sealing compression. Engineers should understand tolerance stack-up nightmares and how to choose the right tolerance to prevent costly assembly issues.

Design approaches that improve assembly success include providing adequate installation clearances, minimizing installation depth requirements, designing for consistent pressure distribution during installation, and considering part flexibility and deformation during assembly operations. Engineers should implement design for assembly principles to reduce manufacturing complexity throughout the production process.

New call-to-action

Read the full guide on Custom Gaskets.

Chapter 7

Tolerance Specifications and Their Manufacturing Impact

Tolerance requirements represent the single most significant factor affecting manufacturing costs and lead times across all manufacturing processes. Engineers frequently apply unnecessarily tight tolerances without understanding their manufacturing implications.

Standard Tolerance Guidelines by Process

Different manufacturing processes have distinct tolerance capabilities that determine both feasibility and cost. Understanding these capabilities prevents specification of unachievable dimensions that delay production.

CNC Machining Tolerance Ranges:

Tolerance Range

Manufacturing Impact

Lead Time Effect

Cost Impact

±0.005" (±0.13mm)Standard operationsBaselineStandard rates
±0.002" (±0.05mm)Increased precision requirements+25-50%+50-100%
±0.0005" (±0.013mm)Specialized equipment/environment+100-200%+200-400%
±0.0002" (±0.005mm)Temperature control, stress relief+300%++500%+

Temperature control requirements for extremely tight tolerances include machine warm-up procedures, environmental conditioning, and stress relief operations that significantly extend manufacturing timelines. Parts may require temperature stabilization periods between operations. Understanding the hidden cost of tight tolerance helps engineers make informed decisions about specification requirements.

Converted Parts Tolerance Standards:

  • Film Materials (BL1): ±0.010" under 1.0", ±0.015" from 1.0" to 6.3"
  • Solid Materials (BL2): ±0.015" under 1.0", ±0.025" from 1.0" to 6.3"
  • Foam Materials (BL3): ±0.025" under 1.0", ±0.032" from 1.0" to 6.3"

Always specify the loosest acceptable tolerance for your application. Tighter tolerances require additional material, extended production time, and increased costs without necessarily improving part function.

Machine Capability Understanding

When tolerance specifications exceed machine capabilities, manufacturers must produce additional parts to achieve statistical compliance, increasing material costs and production time significantly.

Statistical process control requires manufacturing processes to operate within their natural capability ranges to maintain consistent quality. When specified tolerances approach or exceed these capabilities, yield rates decrease dramatically.

Consider a waterjet cutting system capable of ±0.005" (±0.127mm) tolerance. When parts require ±0.004" (±0.1mm) tolerance, the manufacturing process operates below statistical capability, requiring approximately 30% additional parts to ensure adequate good parts for delivery.

Process capability calculations help manufacturers determine realistic production yields for given tolerance requirements. Understanding these calculations during design enables more accurate project planning and cost estimation.

Measurement uncertainty also affects achievable tolerances. Measurement equipment must be significantly more accurate than specified tolerances to provide reliable verification, following the general rule of 10:1 measurement accuracy to tolerance ratio.

Understanding machine capabilities during design prevents these costly situations and enables realistic project planning while ensuring specification achievability.

Geometric Dimensioning and Tolerancing Applications

Geometric Dimensioning and Tolerancing (GD&T) applications require careful consideration of their manufacturing and inspection implications. Complex geometric controls can dramatically increase inspection time and costs.

Profile tolerances require comprehensive surface verification that takes significantly longer than simple dimensional checks. A part with overall dimensional requirements might be inspected in minutes, while the same part with profile callouts could require hours of measurement programming and execution.

Datum structure design affects both manufacturing and inspection efficiency. Poor datum selection can complicate fixturing and measurement setups while introducing unnecessary measurement uncertainty.

Form controls like flatness, straightness, and roundness require specialized measurement techniques that may not be necessary for part function. Evaluating whether these controls truly affect assembly or performance helps optimize inspection requirements.

Position tolerances for hole patterns and features offer more manufacturing flexibility than individual coordinate dimensions while often providing better functional control. Understanding these applications helps engineers specify requirements that optimize both manufacturing and assembly. Proper tolerance design and manufacturing feasibility considerations ensure specifications that can be achieved reliably.

www.modusadvanced.comhubfsSocial PhotosInstagramInstagram Posts - FIP
True Partnership

Small Bead FIP: Breaking the Bead Size Boundaries of Form-In-Place Gaskets

As technology advances, electronics and devices are shrinking in size to accommodate more complex project designs–simply put, they require more technology in less space. It pays to have a manufacturing part who is willing to push the boundaries.

Explore Materials
Chapter 8

Quality Control and Inspection Considerations

Quality requirements significantly impact manufacturing lead times and costs. Understanding standard inspection practices versus custom requirements helps optimize design for manufacturability while maintaining necessary quality levels. Engineers should understand how quality requirements determine lead times and costs when specifying inspection requirements.

Inspection Method Selection

Different measurement techniques require varying amounts of time per part, directly affecting project timelines and costs. Complex geometric measurements take significantly longer than simple dimensional checks.

Standard dimensional inspection focuses on overall part dimensions and critical features that affect function. This approach typically requires minutes per part and provides adequate quality assurance for most applications.

Comprehensive geometric inspection involves detailed verification of all part features including complex curves, profile requirements, and geometric relationships. This approach can require hours per part and dramatically increases production costs.

Standard vs. 100% inspection impact:

Order Quantity

Standard AQL Sample Size

100% Inspection Impact

Time Multiplier

100 parts13 parts measured100 parts measured+700% inspection time
1,000 parts80 parts measured1,000 parts measured+1,150% inspection time
5,000 parts315 parts measured5,000 parts measured+1,480% inspection time

Unless safety-critical applications mandate 100% inspection, standard statistical sampling provides equivalent quality assurance with dramatically reduced lead times and costs.

Inspection equipment capabilities determine what measurements are practical and cost-effective. Simple dimensional measurements using standard tools require minimal setup time, while complex geometric verification may require coordinate measuring machines (CMMs) with extensive programming requirements.

Measurement Technique Optimization

Best fit measurements use mathematical algorithms to find optimal geometric relationships between measured points and intended design, providing practical assessment of part functionality. This approach works particularly well for compliant materials like gaskets and seals that conform to their installation environment during use.

Exact measurement involves taking precise dimensional readings at specific points according to drawing specifications, providing definitive pass/fail results but requiring more time and potentially rejecting parts that would function perfectly in their intended application.

Measurement uncertainty considerations affect the reliability of inspection results. All measurement equipment has inherent uncertainty that must be considered when evaluating part conformance to specifications.

Statistical analysis applications enable manufacturers to track process performance and predict quality trends. Understanding these capabilities helps engineers specify inspection requirements that provide meaningful quality data without excessive measurement overhead.

Best fit measurements reduce inspection time while providing adequate quality assurance for many applications, especially sealing applications where material compliance compensates for minor geometric variations.

Drawing Specification Impact

How engineers specify tolerances and measurements on drawings directly affects inspection complexity and lead times. Small changes in drawing callouts can dramatically reduce quality control requirements without impacting part function.

Profile vs. dimensional tolerances: Profile tolerances require measuring entire geometric surfaces while dimensional tolerances focus on specific features. Complex curved parts with profile callouts demand comprehensive surface scanning, but the same parts with simple dimensional tolerances can be inspected in minutes rather than hours.

Functional dimensioning approaches focus inspection efforts on features that actually affect part performance rather than documenting every geometric detail. This approach reduces inspection time while ensuring critical characteristics are properly verified.

Measurement accessibility requirements should be considered during design. Features located in deep cavities or complex geometries may require specialized measurement tools or extended setup procedures that increase inspection time and costs.

Consider what actually needs verification for proper function — many applications require only overall dimensions to ensure proper fit rather than complete geometric profiling of non-functional features.

Documentation clarity considerations help inspection teams focus their efforts efficiently. Clear specification of critical versus reference dimensions enables appropriate allocation of inspection resources while maintaining necessary quality control.

Telecommunciations (1)
Case Study

Redefining the Traditional Supplier Relationship to Create a 10 Year Partnership

Learn how Modus has worked to create a long-term partnership with this DoD Telecommunications company.

See How
Chapter 9

Advanced DFM Considerations

Certain applications require tolerances that exceed standard manufacturing capabilities or geometries that push conventional process boundaries. Space applications, critical medical devices, and advanced defense systems often demand precision that cannot be compromised. Understanding how creative engineering solves custom converting challenges in space applications demonstrates the possibilities for extreme precision manufacturing.

When Precision Cannot Be Compromised

When tolerances approach or exceed standard manufacturing capabilities, success depends on partnering with manufacturers who view challenging specifications as engineering problems to solve rather than obstacles to avoid.

Mission-critical applications in aerospace, defense, and medical devices often require specifications that push manufacturing boundaries. These requirements aren't arbitrary over-engineering — they're essential for mission success, patient safety, or operational effectiveness.

Implications of extreme precision requirements:

  • Lead time extensions: Custom solutions require development time, specialized tooling, and iterative testing to achieve repeatability, projects may require weeks or months of engineering development before production begins
  • Cost increases: Achieving extreme precision often requires innovative approaches, specialized fixturing, and increased material allowances, these factors can significantly impact project budgets
  • Material considerations: Cutting-edge applications may require exotic materials that behave unpredictably during conventional processing, necessitating entirely new manufacturing approaches
  • Quality system enhancements: Extreme precision often requires enhanced measurement capabilities and specialized quality control procedures

Risk assessment approaches help determine whether extreme specifications are truly necessary or if alternative design approaches might achieve similar functional results with reduced manufacturing complexity.

The right manufacturing partner will provide transparent communication about challenges, realistic timelines for solution development, and clear cost implications for achieving your requirements while maintaining commitment to meeting specifications rather than explaining limitations.

Innovation Partnership Approach

Manufacturers who combine engineering expertise with innovative problem-solving capabilities can achieve specifications that initially appear impossible through creative approaches and custom process development.

Custom tooling development may be required for unique geometries or extreme precision requirements. This process involves significant engineering investment but can enable achievement of previously impossible specifications.

Process modification techniques adapt standard manufacturing processes to meet specialized requirements. These modifications may involve custom fixtures, modified cutting parameters, or hybrid approaches combining multiple technologies.

Measurement system development often accompanies extreme precision manufacturing, requiring custom inspection procedures and specialized equipment to verify achievement of tight specifications.

This requires manufacturers who approach challenges from first principles rather than conventional limitations, invest in custom tooling and process development for critical applications, and commit to achieving specifications rather than explaining why they're impossible.

Iterative development processes enable gradual achievement of challenging specifications through systematic testing and refinement. This approach manages risk while working toward optimal solutions.

Chapter 10

Integration Strategies for Manufacturing Success

Successful design for manufacturability requires early collaboration between design and manufacturing teams. Understanding manufacturing capabilities and limitations during the design phase prevents costly redesign cycles and ensures optimal production efficiency.

Early Manufacturing Engagement

Engaging manufacturing partners during initial design development allows for real-time feedback on proposed geometries and specifications. This collaborative approach identifies potential manufacturing challenges before design finalization, reducing development time and ensuring manufacturable designs.

Design phase collaboration benefits include identification of cost-reduction opportunities, optimization of tolerance specifications for manufacturing capabilities, material selection guidance based on processing requirements, and quality planning that aligns with production methods.

Key areas for early discussion include:

  • Material compatibility and handling requirements
  • Tolerance feasibility within process capabilities
  • Quality requirements alignment with production methods
  • Assembly considerations and tolerance stack-up analysis
  • Production volume implications affecting process selection
  • Lead time optimization through design modifications

Concurrent engineering approaches integrate manufacturing input throughout the design process rather than treating it as a separate phase. This methodology reduces design iterations and prevents costly changes during production preparation.

Early engagement transforms potential manufacturing problems into design opportunities that optimize both performance and production efficiency. The cost of design changes decreases dramatically when implemented during initial development versus after production tooling is complete.

Documentation Best Practices

Clear documentation prevents manufacturing delays and quality issues. Engineers should specify whether CAD models or drawings take precedence when discrepancies exist, include functional justification for tight specifications, and provide material specifications that address both performance and manufacturing requirements.

Critical documentation elements include:

  • Clear precedence statements for CAD versus drawing conflicts
  • Functional justification for tight tolerances and complex features
  • Material specifications including grade, durometer, and special properties
  • Assembly requirements affecting individual part design
  • Quality level specifications appropriate for application criticality
  • Environmental requirements affecting manufacturing and testing

Design intent communication helps manufacturing teams understand the reasoning behind specifications, enabling them to suggest alternatives that maintain functionality while improving manufacturability.

Revision control procedures ensure that design changes are properly communicated and implemented throughout the manufacturing process. Poor revision control can result in parts being manufactured to obsolete specifications.

Design for manufacturability documentation should focus on communicating design intent clearly while providing manufacturing teams with the flexibility to optimize their processes within specification requirements.

Supply Chain Optimization

Design decisions significantly affect supply chain efficiency and risk management. Understanding supplier capabilities and limitations during design enables optimization of both performance and production logistics.

  • Supplier capability assessment should occur early in the design process to ensure proposed specifications align with available manufacturing resources. This assessment helps prevent situations where design requirements exceed supplier capabilities.
  • Material availability considerations affect both cost and lead times. Specifying readily available materials prevents supply chain delays and reduces costs compared to exotic materials requiring special ordering.
  • Geographic manufacturing considerations include shipping costs, lead times, and quality control accessibility. These factors may influence design decisions for high-volume production or time-critical applications.
  • Risk mitigation strategies include designing for multiple supplier capabilities, avoiding single-source dependencies for critical specifications, and maintaining flexibility for alternative manufacturing approaches when primary methods encounter difficulties.
  • Vertical integration advantages enable manufacturers to control multiple process steps, reducing supply chain complexity and improving quality consistency. Understanding these capabilities helps engineers optimize designs for integrated manufacturing approaches.
manufacturing-staff-reviewing-design
Related

What Happens During a DfM Review?

Get a full breakdown of how the Design for Manufacturability Review process works at Modus.

DfM Process
Chapter 11

Cost Optimization Through Design Decisions

Manufacturing costs accumulate through multiple factors including material utilization, processing complexity, quality requirements, and lead time constraints. Understanding these cost drivers enables engineers to make informed design decisions that optimize project economics.

Material Efficiency Considerations

Material costs represent a significant portion of manufacturing expenses, particularly for specialized elastomers and engineered plastics. Design decisions directly impact material utilization efficiency and waste generation.

Nesting optimization for converted parts affects material yield significantly. Parts designed with consistent orientations and complementary shapes enable better material utilization, reducing waste and per-part costs.

Material thickness selection should balance performance requirements with availability and cost. Standard thickness materials typically cost less than custom gauges requiring special ordering or processing.

Size optimization strategies consider both functional requirements and material utilization efficiency. Slightly reducing part dimensions may enable better nesting or use of smaller material sheets, significantly reducing material costs for high-volume production.

Scrap minimization approaches include designing parts with standard cutting processes in mind, optimizing geometric features for efficient material usage, and considering material properties that affect waste generation during processing.

Processing Cost Management

Processing costs include setup time, cutting time, programming complexity, and quality control requirements. Each design decision affects these cost components differently.

Setup time optimization involves designing parts that can be processed with standard tooling and minimal fixture requirements. Complex geometries requiring specialized setups increase per-part costs, particularly for small production volumes.

Cutting time efficiency depends on part geometry, material properties, and cutting process selection. Simple geometries with consistent features process faster than complex shapes requiring multiple tool changes or cutting passes.

Programming complexity costs accumulate through complex curve generation, tight tolerance requirements, and specialized quality routines. Simplifying geometric requirements can dramatically reduce programming time and associated costs.

Quality control cost management involves specifying inspection requirements appropriate for application criticality. Over-specification of quality requirements can double manufacturing costs without improving part function.

Understanding these cost relationships enables engineers to make informed trade-offs between design aesthetics and manufacturing economics while maintaining necessary performance characteristics.

Chapter 12

Frequently Asked Questions About Design for Manufacturability

What is design for manufacturability (DFM)?

Design for manufacturability is an engineering approach that optimizes product designs for efficient, cost-effective manufacturing by considering manufacturing capabilities and constraints during the design phase rather than after design completion.

How much can DFM reduce manufacturing costs?

Effective DFM implementation typically reduces manufacturing costs by 15-40% and can cut lead times by 25-60% compared to non-optimized designs, though savings vary by application complexity and manufacturing process.

When should DFM be implemented in the design process?

DFM should begin during the earliest concept phases of design development. Early implementation enables cost-effective design modifications, while late-stage changes can be expensive and time-consuming.

What are the most common DFM mistakes engineers make?

Common mistakes include specifying unnecessarily tight tolerances, designing sharp internal corners for machined parts, creating complex curves without functional justification, and failing to consider manufacturing process capabilities during design.

How does DFM apply to different manufacturing processes?

Each manufacturing process has specific DFM considerations: CNC machining requires attention to tool access and corner radii, FIP dispensing needs proper wall thickness and path simplification, while converting processes focus on material behavior and cutting limitations.

What role does material selection play in DFM?

Material selection significantly affects manufacturing process options, achievable tolerances, and costs. Early material decisions should consider both performance requirements and manufacturing compatibility to prevent costly process changes.

Chapter 13

Optimizing Your Path to Manufacturing Excellence

Design for manufacturability principles transform complex, time-intensive manufacturing challenges into streamlined production processes. The strategies outlined here directly impact your ability to bring products to market quickly while maintaining the quality standards critical applications demand.

Every design decision represents an opportunity to either simplify or complicate manufacturing operations. Understanding how these choices affect programming time, tooling requirements, setup complexity, and inspection procedures enables you to make informed trade-offs between design aesthetics and manufacturing efficiency.

The relationship between design decisions and manufacturing outcomes becomes particularly critical in industries where lives depend on your innovation. When developing medical devices that support patient care, defense systems that protect service members, or aerospace technologies that ensure safe operations, design for manufacturability principles ensure faster time-to-market without compromising the reliability these applications require.

Engineers who implement these principles early in their design process avoid costly redesign cycles, reduce manufacturing lead times, and create products that can be produced efficiently at scale. This approach accelerates the path from concept to life-changing innovation while maintaining the precision and quality that critical applications demand. Understanding design for manufacturability in rapid prototyping enables efficient transitions from development to production.

The integration of design for manufacturability principles requires understanding not just what is possible, but what is optimal for your specific application requirements. Balancing performance needs with manufacturing realities enables achievement of superior results through efficient processes rather than forcing inefficient processes to accommodate over-engineered designs.

Successful implementation depends on early collaboration with manufacturing partners who understand both your performance requirements and the manufacturing implications of achieving them. This partnership approach ensures that design optimization serves both functional and production objectives. Engineers should use a comprehensive design for manufacturing checklist to assess manufacturing readiness for critical applications.

When lives depend on your innovation, choosing manufacturing partners who understand design for manufacturability principles becomes essential. Partner with experts who recognize that one day matters — because faster, more efficient manufacturing means life-changing technologies reach the people who need them sooner.

Learn more about applying these DFM principles to specific applications:

For specific manufacturing processes:

Advanced considerations for complex applications:

Ready to optimize your designs for manufacturability? Contact Modus Advanced today for expert DFM analysis and precision manufacturing services that help you bring life-changing innovations to market faster.

Don't have time to read the entire guide now?

We'll email you a downloadable PDF version of the guide and you can read it later.

Get Started

Speak to an Engineer Today

Don’t take our word for it. Reach out and speak to one of our engineers about your part today and see the benefits for yourself. We strive to turn all quotes around 48 hours or less to get your part moving as quickly as possible.

Submit a Design
