What Is Thermal Contact Resistance and Why Does It Matter?
Thermal contact resistance is the resistance to heat flow that occurs at the interface between two solid materials in physical contact. This phenomenon exists because real surfaces are never perfectly smooth or in perfect contact, creating microscopic air gaps that significantly impede heat transfer efficiency.
Thermal systems across aerospace and defense, and medical device applications face this common engineering challenge that often goes unnoticed until thermal performance falls short of critical requirements. Heat transfer efficiency depends heavily on what happens at material interfaces — where thermal contact resistance creates invisible barriers that can dramatically impact system performance.
The implications extend far beyond theoretical considerations. In medical devices like MRI systems, excessive thermal contact resistance can lead to component overheating and system shutdowns. Defense electronics operating in extreme environments must maintain thermal performance despite contact resistance challenges. Aerospace applications face similar thermal management requirements where reliability cannot be compromised.
The Physics Behind Thermal Interface Resistance
Material interfaces present unique thermal challenges that require engineering solutions based on fundamental heat transfer principles. Real surfaces contain microscopic peaks and valleys that prevent perfect contact between materials, creating air-filled voids that act as thermal insulators.
Thermal interface resistance encompasses both the contact resistance between solid-to-solid contact points and the resistance through air gaps or interface materials. The total thermal resistance at an interface depends on several interconnected factors that engineers must understand to develop effective solutions.
How Surface Topography Affects Heat Transfer
Surface roughness plays a critical role in determining thermal contact resistance. Rougher surfaces create larger air gaps between materials, increasing thermal resistance. However, the relationship between roughness and thermal performance is complex, as some surface texture can actually improve contact area under specific loading conditions.
The effective contact area between two surfaces typically ranges from 1% to 10% of the apparent contact area, depending on surface finish and contact pressure. This limited contact area forces heat transfer through small conduction paths, creating significant thermal bottlenecks that engineers must address.
Contact Pressure Dependencies in Thermal Systems
Applied contact pressure directly influences thermal contact resistance by increasing the actual contact area between surfaces. Higher pressures deform surface asperities, creating more solid-to-solid contact points and reducing air gap volumes that impede heat flow.
The relationship between contact pressure and thermal interface resistance follows a power law relationship, with diminishing returns at higher pressures. Engineers must balance thermal performance gains against mechanical stress limitations and assembly constraints to optimize system performance.
Material Properties That Control Thermal Contact Resistance
Different material combinations exhibit varying levels of thermal contact resistance based on their thermal and mechanical properties. Understanding these material interactions enables engineers to select optimal component combinations for specific thermal management applications.
Thermal Conductivity Matching Strategies
Materials with similar thermal conductivities generally exhibit lower thermal contact resistance than mismatched pairs. High thermal conductivity materials like copper and aluminum typically provide better thermal interface performance than combinations involving polymers or ceramics.
Table 1: Thermal Conductivity Values for Common Interface Materials
Material | Thermal Conductivity (W/m·K) | Typical Applications |
Copper | 385-400 | Electronics cooling, heat sinks |
Aluminum | 200-250 | Aerospace structures, housings |
Steel (304 SS) | 16-20 | Structural components |
Silicon | 150 | Semiconductor devices |
Thermal Grease | 1-8 | Interface material |
The thermal conductivity mismatch can create additional resistance even when good physical contact exists. Engineers must consider both bulk material thermal properties and interface characteristics when designing optimal thermal paths.
Surface Hardness Impact on Interface Performance
Softer materials tend to conform better to mating surfaces, potentially reducing air gaps and thermal contact resistance. However, very soft materials may not provide adequate mechanical properties for structural applications requiring long-term reliability.
Material hardness affects how surfaces deform under contact pressure, influencing the evolution of contact area over time. This relationship becomes particularly important in applications with thermal cycling or vibration where interface integrity must be maintained.
Engineering Solutions for Minimizing Thermal Interface Resistance
Effective thermal management requires systematic approaches to reducing thermal contact resistance through proper material selection, surface preparation, and interface design. Multiple engineering strategies can be employed individually or in combination to optimize thermal performance across diverse applications.
Thermal Interface Materials (TIMs) Selection Guide
Thermal interface materials serve as engineered solutions to fill air gaps and provide controlled thermal paths between components. These materials are specifically designed to minimize thermal interface resistance while meeting mechanical and environmental requirements for critical applications.
Table 2: TIM Performance Comparison for Thermal Contact Resistance Reduction
TIM Type | Thermal Conductivity (W/m·K) | Operating Range | Resistance Reduction |
Thermal Greases | 1-8 | -55°C to 200°C (-67°F to 392°F) | 70-90% |
Thermal Pads | 1-6 | -40°C to 150°C (-40°F to 302°F) | 60-80% |
Phase Change Materials | 2-4 | -20°C to 125°C (-4°F to 257°F) | 65-85% |
Metal TIMs | 10-80 | -200°C to 400°C (-328°F to 752°F) | 80-95% |
Each TIM type offers specific advantages depending on application requirements, with selection criteria including thermal performance, mechanical properties, operating temperature range, and long-term stability under demanding conditions.
Common TIM categories that effectively reduce thermal contact resistance include:
- Thermal greases and compounds: Low viscosity materials that flow into surface irregularities, providing excellent conformability
- Thermal pads and gap fillers: Conformable materials that accommodate surface variations and assembly tolerances
- Phase change materials: Materials that soften or melt during operation to improve surface conformity and reduce thermal resistance
- Metal thermal interface materials: High performance solutions using metallic matrices for maximum thermal conductivity
Surface Engineering Techniques for Optimal Heat Transfer
Controlled surface preparation can significantly reduce thermal contact resistance by optimizing surface topography and cleanliness. Proper surface engineering addresses both microscopic and macroscopic interface characteristics that affect thermal performance.
Surface roughness optimization involves achieving the ideal balance between conformability and contact area. Typical target roughness values range from 0.1 to 1.0 micrometers Ra for optimal thermal interface resistance reduction, depending on material properties and available contact pressure.
Surface cleanliness eliminates contaminants that increase thermal contact resistance, including oxides, oils, and particulates. Clean surfaces provide better thermal contact and improved TIM adhesion when interface materials are used to bridge air gaps.
Design Strategies for Maximum Heat Transfer Efficiency
Thermal system design must address thermal contact resistance early in the development process to achieve optimal performance. Successful designs integrate thermal interface considerations with mechanical, electrical, and manufacturing requirements for reliable operation.
Contact Pressure Optimization Methods
Achieving adequate contact pressure requires careful mechanical design that considers bolt patterns, surface deflections, and thermal expansion effects. Uniform pressure distribution across interface areas ensures consistent thermal performance and minimizes thermal interface resistance variations.
Table 3: Contact Pressure Requirements for Reducing Thermal Contact Resistance
Material Combination | Contact Pressure Range (MPa) | Thermal Resistance Reduction (%) | Typical Applications |
Aluminum-Aluminum | 0.1-1.0 | 50-70 | Electronics housings |
Copper-Copper | 0.1-1.0 | 60-80 | Heat sink interfaces |
Steel-Steel | 0.5-2.0 | 40-60 | Structural joints |
Aluminum-Steel | 0.2-1.5 | 45-65 | Mixed assemblies |
The mechanical design must maintain contact pressure throughout the operating temperature range, accounting for differential thermal expansion between components. This requirement often drives fastener material selection and thermal expansion compensation techniques.
Thermal Path Optimization Principles
Effective thermal designs minimize the number of interfaces in critical heat transfer paths while optimizing each interface for maximum performance. Multiple interfaces in series multiply thermal contact resistance effects, making interface optimization increasingly important for system-level thermal management.
Parallel thermal paths can compensate for high-resistance interfaces by providing alternative heat transfer routes. This approach requires careful thermal modeling to ensure effective heat distribution across available paths and minimize overall thermal interface resistance.
Read the Essential Guide to Thermal Management Materials
Temperature Effects on Thermal Contact Resistance Performance
Operating temperature significantly influences thermal contact resistance through multiple mechanisms including thermal expansion, material property changes, and interface material behavior. Understanding these temperature dependencies enables robust thermal system design for demanding applications.
Thermal Expansion Impact on Interface Performance
Differential thermal expansion between mating materials can alter contact pressure and interface characteristics during temperature changes. Materials with different expansion coefficients may lose contact at elevated temperatures or develop excessive stress during cooling cycles.
Temperature cycling creates particular challenges as repeated expansion and contraction can degrade interface quality over time. This degradation mechanism affects long-term thermal performance and system reliability, requiring careful material selection to minimize thermal contact resistance increases.
Material Property Variations Across Operating Ranges
Many thermal interface materials exhibit temperature-dependent properties that affect their ability to reduce thermal contact resistance across operating ranges. Some materials may harden at low temperatures or soften excessively at high temperatures, compromising thermal contact effectiveness.
Table 4: Temperature Stability of TIMs for Thermal Contact Resistance Control
TIM Type | Lower Operating Limit | Upper Operating Limit | Thermal Stability Rating |
Silicone Grease | -55°C (-67°F) | 200°C (392°F) | Excellent |
Thermal Pads | -40°C (-40°F) | 150°C (302°F) | Good |
Phase Change Materials | -20°C (-4°F) | 125°C (257°F) | Moderate |
Material selection must account for the complete operating temperature range while providing adequate thermal performance margins throughout the temperature envelope to maintain consistent thermal interface resistance control.
Quality Control and Testing for Thermal Interface Performance
Reliable thermal interface performance requires proper quality control measures during manufacturing and assembly processes. Testing and validation protocols ensure that thermal contact resistance meets design requirements consistently across production quantities.
Interface Preparation Standards and Best Practices

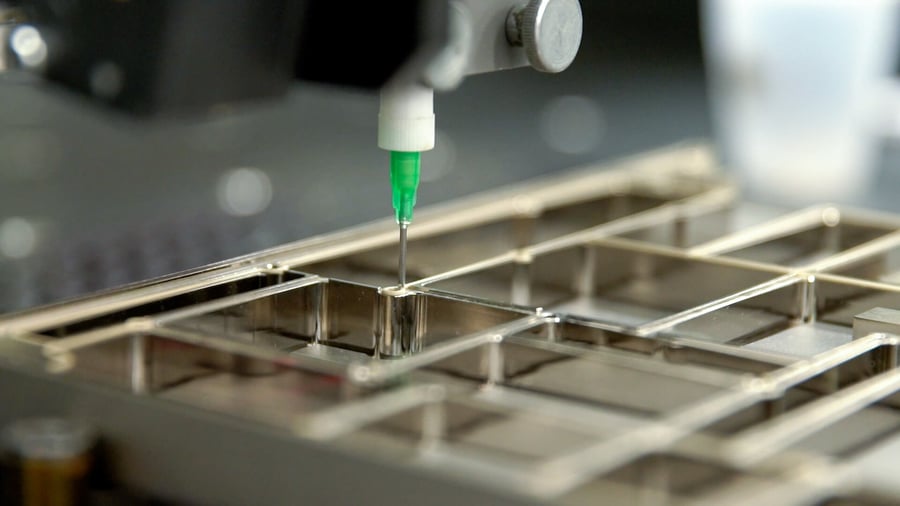

Standardized preparation procedures help achieve repeatable thermal interface performance by controlling surface conditions and assembly variables. These procedures must address surface cleanliness, TIM application methods, and assembly torque specifications to minimize thermal contact resistance variability.
Documentation of interface preparation steps enables troubleshooting and process improvement while supporting quality certification requirements for aerospace, defense, and medical device applications where thermal performance is critical.
Key preparation standards include:
- Surface cleaning protocols to remove contaminants that increase thermal interface resistance
- TIM application thickness control for optimal thermal performance
- Assembly torque specifications to achieve target contact pressures
- Environmental controls during assembly to prevent contamination
Performance Validation Methods for Thermal Systems
Thermal testing validates interface performance under representative operating conditions including temperature, pressure, and environmental exposure. Testing protocols should address both initial performance and long-term stability requirements for thermal contact resistance control.
Common testing approaches include steady-state thermal resistance measurement, thermal cycling evaluation, and accelerated aging studies. These tests provide data for thermal model validation and reliability assessment of thermal interface resistance performance over time.
Frequently Asked Questions About Thermal Contact Resistance
Q: What is the difference between thermal contact resistance and thermal interface resistance?
A: Thermal contact resistance specifically refers to resistance at solid-to-solid contact points, while thermal interface resistance includes both contact resistance and resistance through air gaps or interface materials.
Q: How much can thermal interface materials reduce thermal contact resistance?
A: Quality TIMs can reduce thermal contact resistance by 60-95%, depending on the material type, application method, and interface conditions.
Q: What surface roughness provides the best thermal interface performance?
A: Optimal surface roughness typically ranges from 0.1-1.0 micrometers Ra, balancing conformability with contact area for minimal thermal interface resistance.
Q: How does contact pressure affect thermal contact resistance?
A: Higher contact pressure reduces thermal contact resistance by increasing actual contact area, but follows a power law with diminishing returns at elevated pressures.
