Engineers developing life-saving medical devices and mission-critical aerospace systems face mounting pressure to deliver innovative products faster while maintaining the precision these applications demand. The quality requirements specified on engineering drawings directly determine manufacturing lead times and costs — often more significantly than the geometric complexity of the parts themselves.
Understanding how inspection requirements, tolerance specifications, and measurement protocols impact production timelines enables engineers to make informed decisions during the design phase. When these requirements are optimized through design for manufacturability (DFM) principles, the result is faster delivery of life-changing technologies without compromising the reliability that critical applications require.
Effective DFM encompasses material selection, geometric optimization, tolerance specification, and quality requirement definition — all aligned with available manufacturing capabilities and project timelines. This proactive approach prevents costly redesigns and accelerates time-to-market for critical innovations.
The Hidden Impact of Quality Specifications on Manufacturing
Quality requirements represent one of the most significant yet underappreciated factors in manufacturing lead times and DFM success. The difference between standard sampling protocols and comprehensive inspection can transform a straightforward production timeline into an extended validation process.
Modern manufacturing quality control systems must balance thoroughness with efficiency to meet accelerated development timelines. Design for manufacturability principles guide engineers toward quality specifications that ensure reliability without unnecessarily extending production schedules.
Inspection Time Multipliers by Requirement Type:
Inspection Type | Sample Size (100 parts) | Time Impact vs. Standard | Typical Applications |
Standard AQL Sampling | 13 parts measured | Baseline | General production |
Increased AQL Level | 32 parts measured | +150% inspection time | Critical applications |
100% Inspection | 100 parts measured | +700% inspection time | Safety-critical components |
Profile Tolerances | Complex surface scanning | +200-800% programming/setup | Aerospace geometries |
The compounding effect occurs when multiple quality requirements combine on a single project. A part requiring 100% inspection with profile tolerances and tight dimensional controls can extend quality control timelines well beyond the manufacturing process itself.
Engineers implementing design for manufacturability principles should evaluate whether each quality requirement serves a functional purpose or simply reflects design intent without practical necessity.
Understanding AQL vs. 100% Inspection Requirements in DFM
Acceptable Quality Level (AQL) sampling provides statistically valid quality assurance through representative measurement of production batches rather than complete part inspection. This approach aligns with DFM principles by maintaining quality standards while optimizing production efficiency.
Standard AQL sampling follows established statistical protocols that provide equivalent quality confidence to 100% inspection while dramatically reducing inspection burden. The sample sizes scale logarithmically with production quantities, making this approach increasingly efficient for larger orders and supporting design for manufacturability goals.
AQL Sample Size Requirements:
Production Quantity | Standard AQL Sample | 100% Inspection Impact |
100 parts | 13 parts measured | +700% inspection time |
1,000 parts | 80 parts measured | +1,150% inspection time |
5,000 parts | 315 parts measured | +1,480% inspection time |
The statistical foundation of AQL sampling ensures reliable quality control while enabling faster delivery of critical technologies. For safety-critical applications requiring 100% inspection, design for manufacturability principles suggest optimizing measurement accessibility and simplifying inspection procedures rather than eliminating the requirement entirely.
Manufacturing Capability vs. Measurement Capability in DFM
Design for manufacturability requires understanding both manufacturing capability and measurement capability as distinct but related constraints. Parts may be manufacturable within specified tolerances but unmeasurable using available quality control equipment — a critical consideration in DFM planning.
Manufacturing capability represents the statistical process capability of production equipment under controlled conditions. Modern CNC machines can achieve remarkable precision, but this capability varies by material, geometry, and environmental factors that must be considered during DFM evaluation.
Measurement capability determines whether specified tolerances can be reliably verified using available inspection equipment. Quality control systems must achieve significantly higher accuracy than manufacturing tolerances to provide reliable verification — a fundamental principle in design for manufacturability.
The 10:1 Rule in Design for Manufacturability
The general engineering principle requires measurement equipment accuracy of 10:1 compared to specified tolerances for reliable verification. A tolerance of ±0.001" (±0.025mm) requires measurement systems capable of ±0.0001" (±0.0025mm) accuracy.
When measurement capability becomes the limiting factor, design for manufacturability solutions include:
- Relocating critical features to accessible positions
- Simplifying tolerance requirements while maintaining function
- Accepting statistical sampling approaches rather than precise measurement of every dimension
- Selecting manufacturing processes with inherent measurement accessibility
Profile Tolerances vs. Dimensional Tolerances in DFM Strategy
The method used to specify tolerances dramatically affects inspection complexity and lead times — a key consideration in any design for manufacturability approach. Profile tolerances require measuring entire geometric surfaces, while dimensional tolerances focus on specific features that determine fit, form, and function.
- Profile tolerances specify allowable variation for complete geometric shapes, requiring comprehensive surface scanning and complex measurement programming. These callouts demand extensive setup time and specialized measurement routines that can extend inspection timelines by 200-800% compared to simple dimensional checks.
- Dimensional tolerances focus on specific measurements that affect part function — overall length, width, height, or critical feature positions. These requirements enable rapid verification using standard measurement procedures without complex programming or specialized setups, directly supporting DFM objectives.
DFM Best Practices for Tolerance Specification
Design for manufacturability principles suggest using dimensional tolerances wherever functional requirements permit. A gasket pocket may only require overall dimensions for proper fit rather than complete geometric profiling of decorative features or non-functional curves.
Engineers implementing DFM should distinguish between features requiring precision measurement and those suitable for visual inspection or go/no-go gauging when specifying tolerance requirements. This approach accelerates quality control while maintaining functional performance.
Tolerance Accessibility and Measurement Setup in DFM

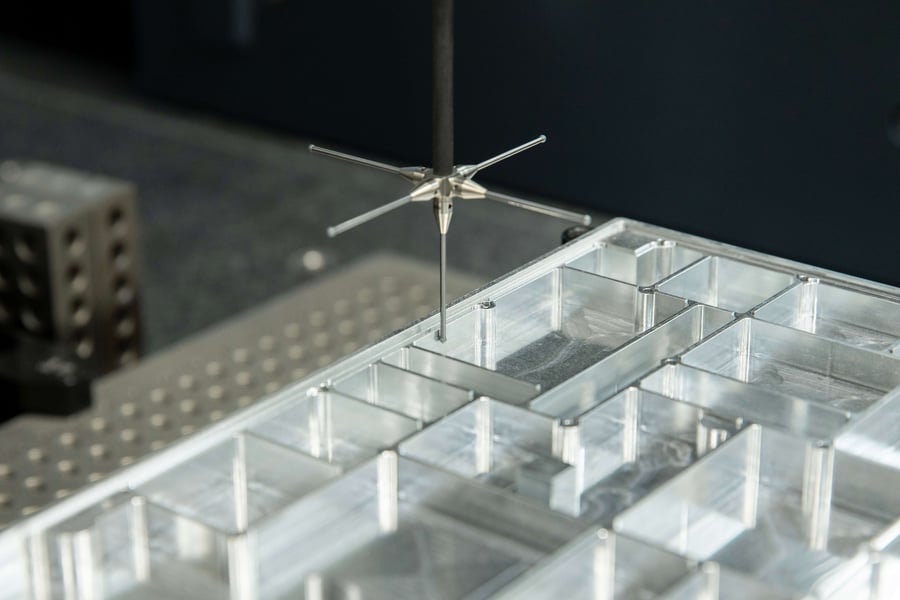

Feature accessibility significantly impacts measurement complexity and inspection lead times — a critical factor in design for manufacturability planning. Parts designed with measurement accessibility in mind enable rapid quality control using standard procedures and equipment configurations.
Design for manufacturability measurement accessibility factors include:
- Critical features positioned for standard probe configurations
- Adequate clearance around measurement points
- Stable reference surfaces for datum establishment
- Minimal part repositioning during inspection sequences
DFM principles favor grouping related features to minimize measurement setups and specifying tolerances only on features affecting fit, form, or function. Features buried deep within complex geometries or requiring specialized probe configurations extend setup times and increase measurement uncertainty.
When measurement accessibility conflicts with functional requirements, engineers implementing design for manufacturability should evaluate whether alternative design approaches can achieve the same performance while enabling standard inspection procedures.
Statistical Process Control and Scrap Planning in DFM
Understanding statistical process control principles enables informed decisions about tolerance specifications and their manufacturing implications — essential knowledge for effective design for manufacturability. When tolerances approach machine capability limits, statistical variation requires producing additional parts to ensure adequate quantities meet specifications.
This approach differs fundamentally from measurement limitations, where tolerance requirements may be unmeasurable regardless of manufacturing capability. Statistical approaches provide viable solutions when manufacturing capability supports the tolerance range even if individual part variation occurs.
DFM Strategies for Statistical Planning
Design for manufacturability strategies include understanding these statistical relationships during tolerance specification. Opening tolerances from machine capability limits to comfortable manufacturing ranges eliminates yield concerns while maintaining functional performance.
Material utilization efficiency also factors into statistical planning, with world-class nesting efficiency reaching approximately 80% material utilization for complex geometries. These considerations must be integrated into comprehensive DFM planning to optimize both material usage and production efficiency.
Industry-Specific DFM Quality Considerations
Different industries emphasize distinct aspects of quality control that affect design for manufacturability approaches. Understanding these priorities enables engineers to optimize quality requirements for their specific applications while maintaining DFM best practices.
Aerospace and Defense DFM Requirements
Aerospace and defense applications typically emphasize geometric precision and material traceability, with tolerance requirements often approaching equipment capability limits. Weight constraints may limit design modifications that would simplify measurement procedures, requiring creative DFM solutions.
Design for manufacturability in aerospace applications must balance precision requirements with manufacturing efficiency, often requiring innovative approaches to achieve both goals simultaneously.
Medical Device DFM Considerations
Medical device applications focus on biocompatibility, sterilization compatibility, and enhanced statistical sampling for patient safety. Quality requirements center on documentation and process control rather than geometric precision in many applications.
The sampling requirements for medical applications often specify increased AQL levels rather than 100% inspection, providing enhanced quality assurance without eliminating statistical efficiency advantages — an ideal example of DFM principles in practice.
Design for manufacturability in medical applications often allows geometric optimization since weight constraints are typically less restrictive than aerospace requirements, providing greater flexibility for DFM implementation.
Documentation and Communication Best Practices for DFM
Clear communication between design and manufacturing teams prevents quality requirement misunderstandings that can significantly impact lead times and costs — a fundamental aspect of successful design for manufacturability implementation.
Establishing clear precedence between design documentation eliminates ambiguity during manufacturing planning and supports DFM objectives by ensuring consistent interpretation of requirements.
Essential DFM documentation elements include:
- Clear precedence statements for conflicts between CAD models and engineering drawings
- Functional requirement explanations for critical tolerance specifications
- Material specifications with acceptable alternatives for quality requirements
- Assembly context information affecting measurement and tolerance requirements
Design for manufacturability extends beyond geometry optimization to include realistic quality control expectations that align with manufacturing capabilities and project timelines.
Early collaboration during design phases enables optimization for both function and measurability, ensuring quality requirements support rather than hinder rapid delivery of critical technologies.
Implementing DFM for Accelerated Innovation
Design for manufacturability principles transform quality requirements from potential bottlenecks into streamlined validation processes that accelerate product development. Understanding the relationship between specification methods, measurement capabilities, and inspection timelines enables informed decisions during the design phase.
Every quality requirement represents an opportunity to either simplify or complicate manufacturing operations. When these requirements are optimized for both function and manufacturability, the result is faster delivery of life-changing technologies while maintaining the reliability that critical applications demand.
DFM Success Metrics
Effective design for manufacturability implementation can be measured through:
- Reduced inspection time compared to initial specifications
- Decreased manufacturing lead times while maintaining quality
- Lower production costs through optimized processes
- Improved yield rates and reduced scrap
- Enhanced measurement accessibility and setup efficiency
Frequently Asked Questions About Design for Manufacturability
What is the primary goal of design for manufacturability?
The primary goal of DFM is to optimize product designs for efficient, cost-effective manufacturing while maintaining all functional requirements and quality standards.
How does DFM affect product quality?
Design for manufacturability enhances product quality by ensuring manufacturing processes can consistently achieve specified requirements within realistic tolerances and capabilities.
When should DFM principles be applied in product development?
DFM principles should be integrated from the earliest design stages rather than applied retroactively, preventing costly redesigns and manufacturing challenges.
What industries benefit most from DFM implementation?
While all manufacturing industries benefit from DFM, aerospace, defense, and medical device industries see particularly significant advantages due to their stringent quality and timeline requirements.
