RF Shielding Materials Guide: Complete Selection Guide for Engineers

May 19, 2022

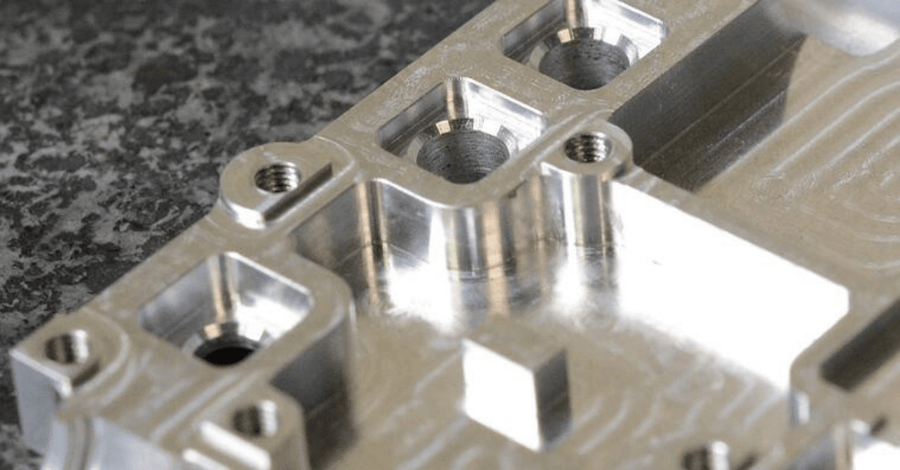

RF Shielding Materials Guide: Complete Selection Guide for Engineers
Manufactured with Speed and Precision

The manufacturing capabilities you need and the engineering support you want, all from a single partner.

Submit a Design

Key Points

  • RF shielding materials must be conductive substances (primarily metals) to effectively reflect or redirect radio frequency signals
  • Both enclosure materials (copper, aluminum, steel, nickel silver) and gasket materials (conductive elastomers) significantly impact shielding effectiveness
  • Material selection depends on frequency range, environmental conditions, conductivity requirements, and cost considerations
  • Even with high-quality materials, proper manufacturing partnerships ensure effective RF shield performance

RF shields protect sensitive electronic devices from radio frequency interference (RFI) that can disrupt performance or cause complete system failure. The materials you choose determine whether your RF shield succeeds or fails in the field.

This guide covers everything engineers need to know about selecting RF shielding materials for aerospace, defense, and medical device applications where reliability isn't optional.

Modus Advanced doesn’t just know all of the right materials to use in RF shields and increase shielding effectiveness — we have direct access to them and routinely use them in RF shields for our customers. Want to get your RF shield manufactured right? Contact us.

New call-to-action

Visit the RF Shielding Resource Center

Understanding RF Shielding Materials

RF shielding materials are conductive substances that effectively reflect or redirect incoming radio frequency signals to protect sensitive components from electromagnetic interference. These materials form the foundation of effective RF shields across critical applications in aerospace, defense, and medical devices.

The materials themselves create the barrier that reflects or absorbs RF energy. Without proper conductive properties, RF signals pass through and interfere with your electronic systems.



Definition

What Makes Materials Effective for RF Shielding?

RF shielding effectiveness depends on the material's ability to conduct electricity and interact with electromagnetic fields. Conductive materials reflect RF signals, while magnetic materials can redirect magnetic field components of electromagnetic radiation.

The most effective RF shielding materials include:

  • Metals: Copper, aluminum, steel, nickel silver for enclosures
  • Conductive elastomers: Silicone filled with metal particles for gaskets
  • Metal meshes: Wire mesh for Faraday cage applications
  • Conductive coatings: Applied to non-conductive substrates

Categories of RF Shielding Materials

RF shielding materials fall into two essential categories: enclosure materials that form the main structure and gasket materials that seal gaps and openings. Both categories work together to create complete electromagnetic protection.

Materials for RF Shielded Enclosures

Metal enclosures provide the primary barrier against RF interference. The choice of metal determines shielding effectiveness, weight, cost, and environmental durability.

Most RF shields include a hard exterior made of solid metal. There are exceptions, including the classic Faraday cage design, but even the mesh used for Faraday cages is made of conductive metal. Below are some of the most common and most effective RF shielding materials.

Copper

Copper provides superior conductivity and RF attenuation performance. With excellent electrical conductivity, copper effectively absorbs and attenuates RF signals across broad frequency ranges.

Copper variations include:

  • Standard copper for maximum conductivity
  • Beryllium copper for enhanced mechanical properties
  • Bronze alloys for improved durability
  • Brass for cost-effective applications

Advantages of copper RF shielding:

  • Highest electrical conductivity among common metals
  • Excellent RF signal absorption and attenuation
  • Easy to form and machine into complex shapes
  • Natural resistance to oxidation and corrosion

Considerations for copper:

  • Higher material costs than aluminum or steel
  • Increased weight compared to aluminum alternatives

Nickel Silver

Nickel silver offers balanced performance with natural corrosion resistance. This copper alloy provides bright silver appearance and many of copper's beneficial properties at reduced cost.

Key characteristics:

  • Copper alloy with enhanced corrosion resistance
  • Wide availability and established supply chains
  • Good conductivity for most RF shielding applications
  • Cost-effective alternative to pure copper

Aluminum

Aluminum delivers lightweight RF shielding with cost advantages. When weight matters — particularly in aerospace applications — aluminum provides effective RF protection at significantly reduced mass.

Aluminum shielding benefits:

  • Lightweight construction reduces system weight
  • Lower material costs than copper alternatives
  • Good electrical conductivity for RF applications
  • Excellent strength-to-weight ratio

Aluminum limitations:

  • Lower conductivity than copper materials
  • Susceptible to galvanic corrosion in mixed-metal applications
  • Requires careful material compatibility planning

Steel

Steel provides unique ferromagnetic shielding properties. Steel's magnetic characteristics create natural magnetic shields that redirect and redistribute RF signals through different mechanisms than purely conductive materials.

Steel shielding characteristics:

  • Ferromagnetic properties for magnetic field shielding
  • Exceptional mechanical strength and durability
  • Cost-effective for large-scale applications
  • Available in various processed forms (hot-rolled, cold-rolled)
New call-to-action

RF Shielding: Everything You Need to Know

RF Shielding Gasket Materials

RF shielding gaskets seal openings and maintain electromagnetic continuity where enclosure sections meet. Without proper gasket materials, even small gaps can compromise entire RF shield systems.

Most RF shields will need to have an opening of some kind, and in and around that opening you will likely need to implement an RF shielding gasket. If the gasket or O-ring used for this part of the shield isn’t made with the right materials, you may have an ineffective RF shield on your hands.

The following are the most common and most effective materials for use in RF shielding gaskets.

Conductive Elastomers

Most effective RF shielding gaskets use silicone elastomer base materials filled with conductive metal particles. The elastomer provides flexibility and sealing properties while metal fillers provide electrical conductivity.

Common conductive filler materials:

  • Silver: Highest conductivity, premium cost
  • Silver aluminum: Excellent performance, moderate cost
  • Silver nickel: Good conductivity with durability
  • Silver copper: Balanced performance and cost
  • Nickel graphite: Cost-effective with good shielding
  • Nickel aluminum: Lightweight applications

Selection criteria for conductive fillers:

  • Conductivity requirements: Higher performance needs silver-based fillers
  • Environmental conditions: Marine environments may require specific filler types
  • Cost considerations: Nickel-based fillers provide budget-friendly options
  • Galvanic compatibility: Filler must be compatible with mating surfaces

Alternative Elastomers

Conductive foams and fabrics provide lower-cost alternatives for specific applications. These materials use conductive coatings or sprays applied to foam or fabric substrates.

Applications for alternative materials:

  • Lower-stakes RF shielding requirements
  • Prototype and development applications
  • Budget-constrained projects with relaxed performance needs
  • Applications requiring minimal compression force

Performance trade-offs:

  • Significantly reduced shielding effectiveness
  • Lower durability compared to metal-filled elastomers
  • Limited environmental resistance capabilities

Critical Factors Affecting Material Selection

Frequency Range Requirements

Different RF shielding materials perform optimally at specific frequency ranges. Material selection must match your target frequencies for effective protection.

Frequency considerations:

  • Low frequency (< 1 MHz): Steel and ferromagnetic materials excel
  • High frequency (> 1 MHz): Copper and aluminum provide superior performance
  • Broadband applications: Multiple materials may be required
  • Harmonic frequencies: Consider frequency multiples in selection

Environmental Conditions

Operating environment directly impacts material durability and long-term performance. Consider temperature, humidity, chemical exposure, and mechanical stress in material selection.

Environmental factors:

  • Temperature extremes: Material properties change with temperature
  • Humidity and moisture: Affects corrosion and conductivity
  • Chemical exposure: Some environments require specific material resistance
  • Mechanical stress: Vibration and shock affect gasket performance
  • UV exposure: Outdoor applications need UV-stable materials

Galvanic Compatibility

Galvanic corrosion
occurs when dissimilar metals contact in the presence of moisture.
Proper material selection prevents accelerated corrosion and maintains shielding effectiveness.

Compatibility guidelines:

  • Match gasket filler materials to mating surfaces when possible
  • Use protective coatings when mixed metals are unavoidable
  • Consider environmental moisture levels in material planning
  • Plan for long-term maintenance in corrosive environments

Specialized RF Shielding Solutions

Form-in-Place (FIP) Gaskets

Form-in-place gaskets provide precise RF shielding for complex geometries. These gaskets are dispensed as liquid materials that cure directly onto metal housings, creating perfect seals for intricate designs.

FIP gasket advantages:

  • Perfect fit to complex housing geometries
  • Eliminates material waste from die-cutting processes
  • Provides consistent bead dimensions and placement
  • Ideal for small, narrow, or intricate gasket requirements

FIP material options:

  • Conductive silicone compounds with metal fillers
  • Two-component systems for controlled curing
  • Various viscosity options for different applications

New call-to-action

Read our Form-in-Place Gasket Guide.

EMI Shielding Tapes and Films

EMI shielding tapes offer flexible solutions for sealing seams and gaps. These materials provide quick installation methods for prototype development and field repairs.

Applications for shielding tapes:

  • Prototype development and testing
  • Field repairs and modifications
  • Sealing irregular seams and joints
  • Quick-turn applications with tight deadlines

Combination Shielding Solutions

Some applications require both EMI shielding and environmental sealing capabilities. Combination gaskets integrate conductive layers for RF protection with non-conductive layers for environmental sealing.

Dual-function gasket construction:

  • Conductive elastomer layer for EMI shielding
  • Non-conductive layer for environmental protection
  • Integrated design eliminates multiple gasket installation
  • Optimized for applications requiring both functions

Design Considerations for RF Shielding Materials

Compression Requirements

Proper compression ensures electrical continuity and shielding effectiveness. Insufficient compression creates gaps that allow RF leakage, while over-compression can damage gasket materials.

Compression guidelines:

  • Conductive elastomers: Typically require 10-30% compression
  • Metal mesh gaskets: May compress to 50% or more
  • Fabric-over-foam: Requires minimal compression force
  • Form-in-place: Compression set during curing process

Installation Methods

Installation method affects both performance and cost. Consider assembly processes, labor requirements, and long-term serviceability in material selection.

Common installation approaches:

  • Pressure-sensitive adhesive: Quick installation, permanent attachment
  • Mechanical fastening: Serviceable, requires access to fasteners
  • Form-in-place dispensing: Automated, requires curing time
  • Snap-in designs: Tool-free installation and removal

The Critical Role of Manufacturing Quality

Material selection represents only part of effective RF shielding. Even premium materials fail without proper manufacturing processes, quality control, and installation techniques.

Manufacturing Partnership Requirements

Look for manufacturing partners with comprehensive RF shielding capabilities:

  • Materials expertise: Access to full spectrum of RF shielding materials
  • Engineering support: Design for manufacturability guidance
  • Quality systems: AS9100, ISO 9001 certifications for consistent results
  • Testing capabilities: RF shielding effectiveness validation
  • Vertical integration: Multiple processes under one roof

Quality Control Processes

Effective quality systems ensure consistent RF shielding performance:

  • Incoming material inspection: Verify material properties and specifications
  • Process control: Monitor manufacturing parameters during production
  • Performance testing: Validate shielding effectiveness before shipment
  • Traceability systems: Track materials and processes for critical applications

How to Select the Right RF Shielding Materials

Follow this systematic approach for optimal material selection:

Step 1: Define Performance Requirements

  • Frequency range: Specify target frequencies and harmonics
  • Shielding effectiveness: Define minimum attenuation requirements
  • Environmental conditions: Identify temperature, humidity, chemical exposure
  • Mechanical requirements: Consider vibration, shock, compression needs

Step 2: Evaluate Application Constraints

  • Size and weight limitations: Aerospace applications favor lightweight materials
  • Cost targets: Balance performance requirements with budget constraints
  • Manufacturing considerations: Consider available processes and lead times
  • Regulatory requirements: Ensure compliance with industry standards

Step 3: Consider Long-Term Performance

  • Durability requirements: Evaluate expected service life
  • Maintenance accessibility: Plan for inspection and replacement
  • Environmental degradation: Account for aging effects on materials
  • System evolution: Consider future modifications or upgrades

New call-to-action

RF Shielding Materials FAQ

What materials provide the best RF shielding effectiveness?

Copper offers the highest RF shielding effectiveness due to superior electrical conductivity. Silver provides even better conductivity but cost typically limits silver to specialized applications. For most engineering applications, copper provides optimal balance of performance and cost.

How do I prevent galvanic corrosion in RF shielding systems?

Use galvanically compatible materials or apply protective coatings to prevent corrosion. Match gasket filler materials to mating surfaces when possible. When mixed metals are unavoidable, apply conductive coatings to the more reactive material and control moisture exposure.

Can aluminum replace copper for RF shielding applications?

Aluminum works effectively for many RF shielding applications with trade-offs in performance and weight. Aluminum provides good conductivity at lower weight and cost than copper, but offers reduced shielding effectiveness. Weight-sensitive applications often justify the performance trade-off.

What factors affect RF shielding gasket lifespan?

Compression set, environmental exposure, and mechanical stress primarily determine gasket lifespan. Proper compression levels, compatible materials, and appropriate environmental sealing extend service life. Over-compression accelerates wear while under-compression allows RF leakage.

Why Choose Modus for Your RF Shielding Needs?

When your critical applications require reliable RF shielding, partnering with a manufacturing expert can make the difference between a device that performs flawlessly and one that fails in the field. Modus Advanced combines engineering expertise with vertical integration to deliver RF shields that meet the most demanding requirements in aerospace, defense, and medical device applications.

  • Engineering-First Approach: With over 10% of our staff being engineers, we provide expert design feedback that improves manufacturability and performance
  • Vertical Integration: From machining to FIP gasket dispensing, plating, and assembly, all under one roof, reducing lead times and risk
  • Quality Systems: AS9100 and ISO 9001 certified processes ensure consistent, high-quality RF shields that perform when lives depend on them
  • Prototype to Production Partner: Support throughout your entire product lifecycle, from rapid prototype turnaround in days to efficient scaling for ongoing production volumes with consistent quality and performance
  • Materials Expertise: Access to the full spectrum of RF shielding materials with guidance on selecting the optimal solution for your specific application

Partner with Modus Advanced to accelerate your path to market with RF shields manufactured to the highest standards of quality and precision; because when one day matters, having the right manufacturing partner is the obvious choice.

RF Shield Manufacturing

New call-to-action
