RF Gasket Solutions for Enhanced Military Communications

Communication represents the lifeblood of modern military operations. On today's battlefield, reliable communications directly determine mission success or catastrophic failure. Military communications systems operate in electromagnetically hostile environments, where signal integrity directly impacts operational effectiveness and personnel safety.

RF gaskets are essential for secure, reliable military communications. They block external interference and prevent sensitive signals from leaking to adversaries.

The stakes remain extraordinarily high. Communication system failures during combat operations lead to severe consequences. Tactical coordination breaks down, situational awareness diminishes, and warfighters become isolated and vulnerable. In environments where seconds matter, RF gasket failure creates an unacceptable risk.

This comprehensive guide examines the critical role of RF gasket solutions in military communications systems. We'll explore the unique challenges of the modern battlefield electromagnetic environment, essential material considerations, and design principles that ensure optimal performance in mission-critical scenarios. For defense engineers and program managers, understanding these specialized components constitutes a matter of national security and servicemember safety.

Today's military operates in an electromagnetic battlespace that bears little resemblance to the environment of even a decade ago. The proliferation of wireless technologies, electronic warfare capabilities, and the digitization of military assets has created an unprecedented level of electromagnetic congestion and complexity.

Military communications systems must function reliably while contending with both intentional and unintentional interference sources. From sophisticated jamming systems to the electromagnetic signatures of friendly equipment, the modern battlefield represents a perfect storm of challenging RF conditions.

Evolution of Battlefield Electromagnetic Spectrum Usage

The electromagnetic spectrum has transformed from a supporting element to a primary battlefield domain. This evolution has occurred across several distinct phases:

• Early Wireless Era (1900-1960s): Simple radio communications with minimal spectrum congestion and rudimentary electronic warfare
• Digital Revolution (1970s-1990s): Introduction of computerized communications and early spectrum management challenges
• Network-Centric Warfare (2000-2015): Integration of battlefield systems into interconnected networks with dramatically increased data requirements
• Multi-Domain Operations (2015-Present): Full electromagnetic spectrum integration across air, land, sea, space, and cyberspace domains

This evolution has created exponentially greater demands on military communications hardware and their electromagnetic shielding components.

Current Challenges in Military RF Environments

Military RF systems face a combination of challenges unique to defense applications:

• Signal Density: Battlefields now contain thousands of simultaneous transmissions across numerous frequency bands
• Spectrum Congestion: Limited available spectrum must support an expanding array of communication needs
• Intentional Jamming: Adversaries deploy increasingly sophisticated electronic warfare capabilities designed to disrupt communications
• Unintentional Interference: Friendly systems can create electromagnetic interference with nearby equipment
• Power Constraints: Field-deployed systems must balance power requirements with operational duration
• Environmental Extremes: Equipment must function across desert heat, arctic cold, high humidity, and saltwater exposure
• Physical Durability: Communications hardware must withstand shock, vibration, and impact during combat operations

These challenges place extraordinary demands on RF gasket solutions, requiring performance capabilities far beyond commercial applications.

Military vs. Commercial RF Requirements

Military communications systems operate under fundamentally different requirements than their commercial counterparts. These differences directly impact RF gasket selection and implementation.

This stark contrast underscores why commercial-grade RF gasket solutions typically fall short in military applications.

Impact of Emerging Technologies

The military RF environment continues to evolve rapidly with several emerging technologies presenting both opportunities and challenges:

• 5G Networks: Higher frequencies, densified networks, and massive MIMO create new interference patterns
• IoT Proliferation: Battlefield sensors and connected equipment generate unprecedented device density
• Autonomous Systems: Unmanned vehicles and robotics require reliable, secure control communications
• Software-Defined Radio: Frequency-agile systems create dynamic spectrum usage patterns
• Directed Energy Weapons: Generate significant electromagnetic pulses requiring enhanced shielding
• Quantum Communications: Emerging quantum technologies will require new approaches to electromagnetic security

Each of these advancements places new demands on RF gasket performance and durability, requiring continuous innovation in materials and design.

The electromagnetic battlefield will only grow more complex. Defense engineers must select RF gasket solutions that not only address current challenges but anticipate future developments in this critical domain.

RF gaskets serve as the critical interface components that maintain electromagnetic integrity in military communications equipment. These specialized seals prevent external interference from disrupting sensitive electronics while containing internally generated signals that could otherwise compromise operational security.

In defense applications, RF gaskets must perform under conditions far more demanding than those faced by commercial counterparts. Understanding the fundamental principles behind these components is essential for ensuring mission-critical communications remain secure and reliable.

Basic Principles of RF Gasket Function

RF gaskets operate on several key electromagnetic principles that enable their shielding function:

• Conductivity: RF gaskets create low-resistance electrical connections between mating surfaces
• Surface Contact: Maximum shielding requires consistent contact across the entire interface
• Compression Recovery: Gaskets must maintain contact pressure even after repeated compression cycles
• Impedance Matching: Effective shielding requires matching the impedance of the housing structure
• Path of Least Resistance: RF energy follows the lowest impedance path, which the gasket must control

In military communications equipment, RF gaskets typically serve multiple functions:

• Creating conductive seals between housing components
• Providing environmental protection against moisture and contaminants
• Absorbing mechanical energy from shock and vibration
• Maintaining electrical continuity across access panels and removable sections
• Ensuring system compliance with military EMI/EMC standards

The effectiveness of these functions directly impacts the operational reliability of military communications in contested electromagnetic environments.

Types of Electromagnetic Interference in Defense Scenarios

Military communications systems must contend with diverse electromagnetic threats that can broadly be categorized into several types:

• Broadband Interference: Spans wide frequency ranges, typically from equipment with arcing contacts or ignition systems
• Narrowband Interference: Concentrated at specific frequencies, often from other communications equipment
• Conducted Interference: Travels through power lines, cables, and other conductive paths
• Radiated Interference: Propagates through space via electromagnetic waves
• Intentional Electromagnetic Interference (IEMI): Deliberately generated to disrupt communications
• Electromagnetic Pulse (EMP): High-intensity burst that can damage electronic components
• High-Altitude Electromagnetic Pulse (HEMP): Nuclear-generated EMP affecting wide geographic areas

RF gaskets must address these varied interference types while maintaining performance across the full spectrum of military operational environments.

Critical Parameters for Military-Grade RF Gaskets

Several key parameters determine RF gasket performance in military applications:

• Shielding Effectiveness: Measured in decibels (dB) across specified frequency ranges
• Compression Force: Force required to achieve specified compression percentage
• Compression Set: Permanent deformation after compression cycles
• Temperature Range: Operational limits in both high and low temperature extremes
• Environmental Resistance: Ability to withstand exposure to fuels, oils, solvents, and other chemicals
• Galvanic Compatibility: Resistance to corrosion when in contact with housing materials
• Durability: Performance after repeated compression/decompression cycles
• Electrical Resistivity: Material's inherent resistance to electrical current flow

These parameters must be evaluated against the specific requirements of military communication systems to ensure appropriate gasket selection.

Military Standards Compliance

Military RF gaskets must comply with stringent standards that ensure performance in mission-critical scenarios:

• MIL-STD-461G: Electromagnetic interference characteristics requirements for equipment
• MIL-STD-810H: Environmental engineering considerations and laboratory tests
• MIL-DTL-83528: Detailed specification for elastomeric shielding gaskets
• MIL-HDBK-1195: Radio frequency shielded enclosures
• MIL-STD-188-125: High-altitude electromagnetic pulse protection
• HEMP/TEMPEST: Requirements for protection against compromise of sensitive information

Non-compliance with these standards can result in equipment failure, mission compromise, and potential safety risks to military personnel.

Selecting the appropriate materials for RF gaskets in military applications requires balancing multiple competing factors including shielding effectiveness, environmental resilience, and long-term reliability. These specialized components must maintain their electromagnetic properties while withstanding extreme conditions that would quickly degrade commercial alternatives.

Defense engineers must approach material selection with a deep understanding of both electromagnetic principles and the operational realities of military deployment. The right material choice can mean the difference between mission success and critical communications failure.

Metal-Based Gasket Materials

Metal gaskets offer exceptional conductivity and shielding properties, making them suitable for numerous military applications. Each metal option presents distinct advantages and limitations:

• Aluminum: Lightweight with good conductivity, excellent for airborne systems where weight is critical
• Stainless Steel: Superior corrosion resistance and durability, ideal for naval applications
• Beryllium Copper: Exceptional spring properties with high conductivity, maintains performance after repeated compression
• Monel: Outstanding resistance to salt environments, commonly used in maritime defense systems
• Phosphor Bronze: Excellent fatigue resistance and moderate conductivity, good for applications requiring frequent access
• Tinned Copper: Combines high conductivity with improved corrosion resistance, effective in ground-based systems

Metal gaskets typically take the form of knitted wire mesh, spring fingers, or stamped profiles. Their primary advantages include high-temperature resistance, superior shielding at higher frequencies, and resistance to nuclear and electromagnetic pulse effects.

Conductive Elastomers for Military Environments

Conductive elastomers combine the compliance of silicone or fluorosilicone rubbers with embedded conductive particles. This combination creates materials that conform to irregular surfaces while maintaining excellent electromagnetic properties.

Key elastomer types include:

• Silicone: Excellent temperature range (-67°F to 392°F), good compression set, moderate chemical resistance
• Fluorosilicone: Enhanced resistance to fuels and solvents, wider temperature range (-67°F to 400°F)
• EPDM: Superior weather resistance, excellent for exposed applications
• Neoprene: Good abrasion resistance with moderate shielding effectiveness

The conductive fillers embedded in these elastomers determine their electrical properties:

• Silver-Aluminum: High conductivity with reduced galvanic corrosion risk for aluminum housings
• Silver-Copper: Maximum conductivity for critical shielding applications
• Silver-Glass: Combines good conductivity with reduced compression force requirements
• Nickel-Graphite: Economical with good shielding, compatible with most housing materials
• Carbon: Most economical option with moderate shielding effectiveness

Conductive elastomers excel in applications requiring environmental sealing alongside EMI/RFI shielding, particularly where irregular surface profiles must be accommodated.

Material Selection Criteria for Defense Applications

When selecting RF gasket materials for military communications systems, several application-specific factors must be evaluated:

• Deployment Environment: Arctic, desert, maritime, airborne, or space environments have vastly different requirements
• Operational Duration: Long-term deployments require materials with minimal performance degradation over time
• Maintenance Access: Limited maintenance opportunities favor materials with excellent compression set resistance
• Housing Material: The gasket must be galvanically compatible with the housing to prevent corrosion
• Frequency Range: Different materials provide optimal shielding across different frequency bands
• Compression Limitations: Available compression force may limit material options
• Repairability: Field-serviceable systems require gaskets that can be replaced in austere conditions

Galvanic Compatibility Considerations

Galvanic corrosion occurs when dissimilar metals contact in the presence of an electrolyte (often humidity or salt spray). This corrosion can rapidly degrade both the gasket and housing, compromising shielding effectiveness.

Proper material pairing prevents premature system failure due to galvanic effects, particularly in humid or maritime environments.

Material selection must account for all environmental factors a system might encounter during its operational life.

The optimal material selection depends on the specific combination of environmental challenges a system will face in its intended deployment context.

Material selection represents one of the most critical decisions in designing RF gaskets for military communications systems. By carefully evaluating electromagnetic requirements alongside environmental conditions and operational constraints, defense engineers can select materials that ensure reliable, secure communications in even the most demanding battlefield environments.

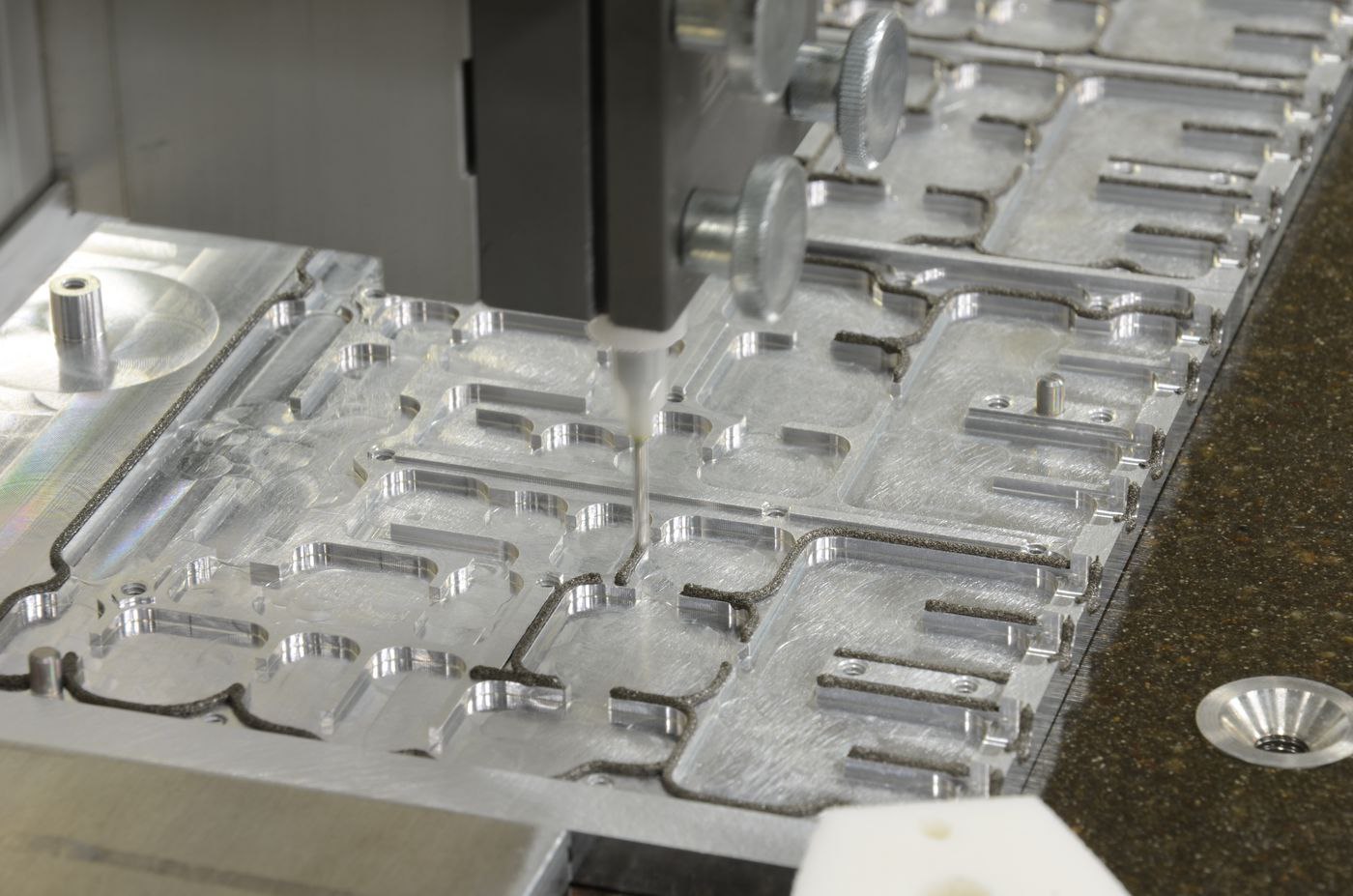

Form-in-Place (FIP) gasket technology has revolutionized RF shielding for complex military communications systems. This advanced manufacturing technique allows for the precise application of conductive elastomer beads directly onto component surfaces, creating custom gasket profiles without the limitations of traditional pre-formed gaskets.

For military applications with intricate geometries, miniaturized components, or challenging form factors, FIP technology offers unparalleled advantages in both performance and manufacturing efficiency. The ability to dispense gasket material with sub-millimeter precision enables shielding solutions that would be impossible with conventional gaskets.

Advantages of FIP Technology for Military Hardware

Form-in-Place gasket technology offers several distinct advantages for military communications equipment:

• Complex Geometry Accommodation: Follows intricate paths and tight radius turns impossible with pre-formed gaskets
• Miniaturization Support: Enables reliable shielding for increasingly compact military communications devices
• Design Flexibility: Allows late-stage design modifications without retooling costs
• Controlled Bead Profiles: Precise cross-sectional dimensions for optimal compression characteristics
• Material Efficiency: Minimizes waste compared to die-cut gaskets
• Integration with Automation: Compatible with robotic dispensing for consistent, repeatable results
• Reduced Assembly Time: Eliminates manual gasket handling and placement
• Multi-Durometer Capability: Different hardness materials can be applied in a single dispensing process

These advantages make FIP particularly valuable for next-generation military communications systems where size, weight, and power (SWaP) considerations are critical.

Micro-Bead Dispensing for Miniaturized Communication Devices

As military communications equipment continues to shrink, traditional gasket technologies face increasing limitations. Micro-bead FIP technology addresses these challenges by enabling gasket features at previously impossible scales:

• Ultra-Fine Bead Widths: Gasket beads as narrow as 0.014 inches (0.35mm)
• Precise Height Control: Vertical tolerances within 0.004 inches (0.10mm)
• Tight Path Control: Dispensing accuracy within 0.008 inches (0.20mm) of programmed path
• Minimal Spacing Requirements: Can maintain discrete beads with minimal separation
• Variable Bead Dimensions: Height and width can be varied along the dispensing path
• Multi-Layer Capability: Stacked bead structures for specialized shielding requirements

Micro-bead dispensing enables effective RF shielding in handheld tactical radios, helmet-mounted communication systems, and other miniaturized military equipment where space constraints are extreme.

Material Formulations for Military RF Applications

FIP gasket materials for military applications require specialized formulations that balance multiple performance requirements:

• Shielding Effectiveness: Conductive particle loading optimized for military frequency bands
• Compression Characteristics: Tailored force-deflection curves for specific housing designs
• Environmental Resistance: Enhanced resistance to military-specific chemicals and conditions
• Adhesion Properties: Strong bonding to military-grade surface treatments and platings
• Cure Profiles: Optimized for high-volume military equipment production
• Service Temperature Range: Formulated for extreme operational environments
• Corrosion Inhibition: Contains additives to minimize galvanic effects
• Low Outgassing: Critical for space-based military communications systems

Common FIP material formulations used in military applications include:

• Silver-Aluminum Filled Silicone: Excellent for aluminum housings with minimal galvanic concerns
• Nickel-Graphite Silicone: Economical with good all-around performance
• Fluorosilicone with Silver-Copper: Superior fuel and solvent resistance with exceptional shielding
• Silver-Glass in Low-Compression Silicone: For fragile housings with limited compression force
• Hybrid Silver-Aluminum/Nickel Formulations: Balanced performance across multiple parameters

The specific formulation selected must align with both the shielding requirements and environmental challenges of the military application.

FIP gaskets provide reliable electromagnetic shielding in increasingly complex and miniaturized equipment. As military communications continue to evolve toward smaller, more integrated systems, FIP technology will play an expanding role in ensuring mission-critical performance.

Proper RF gasket design for military communications systems requires a systematic approach that balances electromagnetic performance, mechanical integrity, and long-term reliability. Unlike commercial applications, military systems must maintain their shielding effectiveness under extreme conditions while meeting stringent security and maintainability requirements.

Effective design starts with a comprehensive understanding of both the electromagnetic and physical environments the system will encounter throughout its operational life. This holistic approach ensures that RF gaskets perform reliably when mission success depends on uninterrupted communications.

Mechanical Design Principles for Optimal RF Gasket Performance

Several fundamental mechanical design principles govern successful RF gasket implementation in military communications equipment:

• Controlled Compression: Gaskets should be compressed between 10% and 40% of their original height
• Compression Stops: Prevent over-compression that could permanently deform or damage gaskets
• Surface Finish: Mating surfaces require 32-64 microinch finish for optimal electrical contact
• Flange Width: Minimum flange width should be 1.5x the gasket width
• Corner Design: Minimum inside radius should equal gasket width to prevent bunching
• Fastener Spacing: Maximum spacing of 2 inches (50.8mm) to ensure uniform compression
• Groove Design: Depth should allow proper compression without excessive force
• Tolerance Stacking: Account for cumulative manufacturing tolerances in compression calculations
• Thermal Expansion: Design for differential expansion rates between housing and gasket materials
• Service Access: Maintain gasket integrity during repeated cover removal/replacement cycles

These principles apply across all military communication systems but must be adapted to specific form factors and operational requirements.

Compression Force Management in Field Deployments

Military communications equipment must maintain gasket compression under challenging conditions. Several design approaches help manage compression forces effectively:

• Distributed Fastening: Spread compression load evenly across gasket perimeter
• Fastener Selection: Choose appropriate type and size for required compression force
• Spring Elements: Incorporate spring washers to maintain compression during vibration
• Latch Mechanisms: Design for sufficient compression while enabling quick access
• Force Calculation: Account for gasket length, cross-section, and material durometer
• Tool-Less Operation: Where field maintenance is required, design for hand-operable force
• Positive Stops: Prevent over-compression during field service
• Consistent Force Application: Design for uniform force distribution to prevent leakage paths
• Vibration Resistance: Ensure fasteners maintain compression during severe vibration
• Dynamic Loading: Account for additional forces during shock events

For vehicles and portable systems, maintaining compression during movement presents additional challenges requiring special consideration of dynamic loading effects.

Addressing Multiple Penetrations and Connector Interfaces

Military communications systems typically include multiple cable penetrations, connector interfaces, and access points that create potential RF leakage paths:

• Connector Selection: Choose connectors with integrated EMI filtering where possible
• Connector Placement: Position connectors to minimize interference with gasket paths
• Feed-Through Design: Implement proper grounding for all penetrating conductors
• Waveguide Principles: Apply below-cutoff design for necessary openings
• Honeycomb Vents: Use properly sized honeycomb for ventilation openings
• Board-Level Shielding: Implement additional shielding around sensitive components
• Cable Management: Maintain proper shield termination for all entering/exiting cables
• Interface Standardization: Standardize interface treatments across subsystems
• Bulkhead Mounting: Use EMI gaskets between connector flanges and housing
• Filter Integration: Incorporate EMI filters at entry points for power and signal lines

Each penetration requires individual attention to maintain overall system shielding integrity.

Design for Battlefield Maintainability and Field Repair

Military communications systems must be maintainable under field conditions with minimal specialized tools or facilities:

• Captive Hardware: Prevent loss of fasteners during maintenance
• Tool Commonality: Design for standard military-issue tools
• Clear Marking: Indicate proper gasket placement and orientation
• Visible Inspection: Allow visual confirmation of proper gasket compression
• Replacement Access: Design for gasket replacement without complete disassembly
• Modular Approach: Enable replacement of discrete sections rather than entire gaskets
• Minimal Training Requirements: Intuitive assembly requiring minimal specialized knowledge
• Fault Isolation: Design for easy identification of compromised gasket sections
• Field Repair Kits: Design with consideration for available field repair materials
• Documentation: Clear, concise maintenance procedures for field reference

These maintainability features ensure that systems can be quickly returned to service under combat conditions.

Thermal Management in Sealed RF Environments

Effective RF shielding often creates challenges for thermal management. Military communications systems must balance electromagnetic sealing with adequate cooling:

• Conduction Paths: Maximize thermal conduction through deliberate material selection and contact areas
• Shielded Ventilation: Implement honeycomb or mesh-based shielded ventilation openings
• Thermal Analysis: Model heat generation and dissipation during design phase
• Material Selection: Choose gasket materials with appropriate thermal characteristics
• Heat Sinking: Integrate heat sinks compatible with EMI shielding requirements
• Thermal Interfaces: Use thermally conductive EMI gaskets where appropriate
• Airflow Management: Design internal structures to optimize airflow while maintaining shielding
• Operating Environment: Account for ambient temperature ranges in thermal design
• Duty Cycle Management: Design for realistic operational duty cycles
• Extreme Conditions: Provide thermal management solutions for both arctic and desert deployments

As military systems continuously increase in processing power, effective thermal management within shielded enclosures becomes increasingly critical.

Balancing Low Observable Requirements with RF Shielding

Modern military platforms often incorporate low observable (stealth) technologies that can conflict with traditional RF shielding approaches:

• Material Selection: Choose gasket materials compatible with low observable coatings
• Design Integration: Incorporate gaskets within the external mold line rather than on external surfaces
• Surface Continuity: Maintain surface continuity across shield boundaries
• Frequency-Selective Surfaces: Implement specialized materials that block specific frequencies
• Absorption vs. Reflection: Emphasize absorptive rather than reflective shielding approaches
• Edge Treatment: Special attention to edges where shielding meets low observable surfaces
• Signature Management: Consider all-aspect signature effects of shielding solutions
• Multi-Band Approaches: Different solutions for different frequency bands
• Testing Integration: Combined test programs for both shielding and signature reduction
• Material Compatibility: Ensure long-term compatibility between shielding and low observable materials

These specialized considerations are particularly important for advanced aircraft, naval vessels, and ground vehicles where signature management is mission-critical.

Effective RF gasket design for military communications systems requires careful attention to mechanical design principles, compression management, penetration treatment, maintainability, thermal considerations, and potential low observable requirements. By addressing these factors systematically during the design phase, engineers can create systems that maintain secure, reliable communications even in the most challenging battlefield environments.

Different military communication platforms present unique RF shielding challenges that require specialized gasket solutions. The operational environment, form factor, and mission profile of each system dictate specific design approaches and material selections that ensure reliable performance under combat conditions.

Understanding these platform-specific requirements enables engineers to implement RF gasket solutions that address the particular challenges of each communication system type. From handheld tactical radios to sophisticated satellite terminals, each application demands tailored approaches to electromagnetic shielding.

Tactical Radio Systems

Tactical radios represent one of the most challenging RF gasket applications due to their portable nature, harsh usage conditions, and critical importance to warfighter safety. These systems must maintain secure communications while enduring extreme physical abuse.

Handheld tactical radios require:

• Lightweight Solutions: Minimizing burden on dismounted soldiers
• Impact Resistance: Surviving drops, impacts, and battlefield handling
• Water/Dust Protection: Maintaining minimum IP67 protection while preserving RF integrity
• Battery Access: Frequent field battery replacement without compromising shielding
• Temperature Stability: Performance across -40°F to 160°F operational range
• Corrosion Resistance: Withstanding perspiration and body oils
• Low Compression Force: Enabling one-handed operation and battery changes
• Chemical Resistance: Surviving decontamination procedures
• Minimal Maintenance: Reliable operation with limited field service capability

Vehicle-mounted tactical radios face additional challenges:

• Extreme Vibration: Continuous high-amplitude vibration during operation
• Connector Density: Multiple antenna, power, and networking connections
• Integration Issues: Interaction with vehicle power systems and electronics
• Thermal Management: Heat dissipation in enclosed vehicle spaces
• Multiple-System Interference: Compatibility with other vehicle electronic systems
• Jump-Start Protection: Handling power surges during vehicle jump-starts
• Rapid Deployment: Quick installation and removal capabilities
• Cross-Platform Compatibility: Functioning across diverse vehicle platforms

FIP gaskets with silver-aluminum fillers in fluorosilicone carriers typically provide the best overall performance for tactical radio applications, offering an optimal balance of environmental resistance and shielding effectiveness.

Command and Control Center Communications

Fixed and mobile command centers house sophisticated communications equipment that requires comprehensive RF shielding to prevent both information leakage and external interference:

• Large-Scale Enclosures: Room-sized shielded environments with numerous penetrations
• Mixed Equipment Integration: Diverse systems with varied shielding requirements
• Power Entry Concerns: Substantial power requirements with corresponding EMI challenges
• HVAC Integration: Climate control compatible with RF shielding requirements
• Personnel Access: Frequent entry/exit without compromising shield integrity
• Equipment Reconfiguration: Adaptable shielding for evolving mission requirements
• TEMPEST Compliance: Protection against compromising emanations
• 24/7 Operational Reliability: Continuous operation without performance degradation
• Scalability: Expandable solutions for growing capabilities
• Multiple Classification Levels: Isolation between different security domains

Command centers typically employ a combination of architectural shielding (copper screen or sheet in walls/floors/ceilings) with specialized gaskets at all seams, penetrations, and access points. Beryllium copper finger stock and large-profile elastomer gaskets are common in these applications.

Airborne Communication Systems

Airborne platforms present unique challenges including extreme altitude, rapid temperature changes, and severe space/weight constraints:

• Weight Minimization: Every gram matters in aircraft applications
• Pressure Differential: Performance across rapid pressure changes from sea level to 60,000+ feet
• Temperature Cycling: From ground heat to extreme cold at altitude
• Vibration Profiles: High-frequency vibration combined with shock events
• Corrosion Resistance: Protection against humidity and condensation cycles
• Lightning Protection: Integration with aircraft lightning protection systems
• Fuel Vapor Exposure: Compatibility with aviation fuel and hydraulic fluids
• Size Constraints: Extremely limited space for gasket compression
• Rapid Decompression: Maintaining seal integrity during emergency events
• Maintenance Access: Design for line-replaceable unit (LRU) access

Lightweight aluminum wire mesh gaskets and low-compression-force conductive elastomers are common in airborne applications. For pressurized equipment housings, combination environmental/EMI gaskets with dual sealing functions are often employed.

Naval Communication Systems

Maritime environments represent the most corrosively hostile conditions for RF gaskets, demanding specialized materials and designs:

Surface vessel requirements include:

• Salt Spray Resistance: Continuous exposure to corrosive salt environment
• Galvanic Compatibility: Prevention of accelerated corrosion
• Shock Resistance: Survivability during combat-induced shock events
• Vibration Damping: Absorption of continuous machinery vibration
• Waterproof Sealing: Protection against direct water exposure
• UV Stability: Resistance to degradation from continuous sun exposure
• Fungus Resistance: Prevention of biological growth in humid conditions
• Chemical Compatibility: Resistance to specialized maritime cleaning compounds
• Maintenance Intervals: Alignment with vessel maintenance schedules
• Non-Magnetic Requirements: Non-magnetic materials for mine-countermeasure vessels

Subsurface (submarine) applications add:

• Pressure Resistance: Operation at extreme depths
• Acoustic Considerations: Contribution to acoustic signature
• Outgassing Limitations: Minimal volatile organic compound (VOC) release
• Extended Deployment: Months-long operation without maintenance
• Space Constraints: Extremely limited volume for equipment housing
• Material Certification: Compliance with submarine material control program

Monel wire mesh gaskets and fluorosilicone elastomers with silver-coated nickel fillers provide the best long-term performance in naval applications, offering superior corrosion resistance and stable electrical properties in maritime environments.

Satellite Communications Terminals

SATCOM terminals link ground forces with orbital assets, requiring specialized RF gasket solutions that address both terrestrial and space-related challenges:

• Frequency Range: Extremely wide frequency coverage from UHF through Ka-band
• High Power Requirements: Managing high-power transmit functions
• Antenna Integration: Complex feed structures with critical RF performance
• Positioning Systems: Integration with precision pointing mechanisms
• Environmental Extremes: Operation from arctic to desert conditions
• Transportability: Ruggedized for frequent relocation
• Rapid Deployment: Quick assembly/disassembly in field conditions
• Size/Weight Constraints: Minimized logistics footprint
• Power Efficiency: Compatibility with limited field power sources
• Remote Operation: Extended unmanned operation periods

Satellite communication terminals typically employ specialized waveguide gaskets along with traditional housing gaskets. For the waveguide interfaces, precision-knitted monel or aluminum wire mesh gaskets provide superior performance across the broad frequency ranges involved.

Electronic Warfare and SIGINT Equipment

Electronic warfare (EW) and signals intelligence (SIGINT) systems present unique RF gasket requirements due to their extreme sensitivity and broad frequency capabilities:

• Ultra-Wide Frequency Range: Coverage from HF through millimeter wave
• Exceptional Shielding Levels: Often 10-20dB better than standard communications
• Receiver Protection: Preventing damage to sensitive receiver front ends
• Transmitter Containment: Preventing detection of EW emissions
• Directional Considerations: Maintaining pattern integrity of directional systems
• Multi-Band Operation: Simultaneous operation across widely separated bands
• Low-Noise Requirements: Minimal contribution to system noise floor
• Thermal Management: Cooling high-power jamming transmitters
• Covert Operation: Supporting low-probability-of-intercept requirements
• Size/Weight Optimization: Deploying sophisticated capabilities in minimal footprint

These specialized systems often require custom gasket solutions combining multiple technologies, such as waveguide chokes with conductive elastomer inserts and specialized board-level shielding with ultra-fine FIP gasket applications.

Each military communication system type requires a tailored approach to RF gasket selection and implementation. By understanding the unique operational requirements of each platform, engineers can select gasket solutions that ensure reliable communications under the most demanding battlefield conditions.

Rigorous testing and validation procedures ensure RF gaskets in military communications systems perform throughout their operational life under extreme combat conditions. Proper implementation, including surface preparation, installation techniques, and maintenance procedures, remains equally critical for reliable RF shielding performance.

Essential Testing Protocols

Military RF gaskets require comprehensive testing across multiple parameters:

• Shielding Effectiveness Testing: Measures attenuation across frequency spectrum (MIL-STD-285, IEEE-299, ASTM D4935)
• Environmental Resistance Testing: Validates performance after exposure to temperature extremes (-67°F to 160°F), humidity, salt fog, chemicals, and UV radiation
• Mechanical Performance Testing: Evaluates compression set resistance, force deflection, tensile strength, tear resistance, and abrasion resistance
• Electrical Performance Testing: Confirms volume resistivity, surface resistivity, galvanic corrosion potential, and contact resistance stability

These tests must be performed on both standalone gasket samples and assembled systems.

Military-Specific Qualification Testing

Military communications systems require specialized qualification testing including:

• HEMP/EMP testing for electromagnetic pulse events
• Ballistic shock testing for munitions impact effects
• Nuclear event testing for radiation hardness
• TEMPEST testing for protection against compromising emanations
• Vibration/shock testing for operational movements and impacts
• Altitude testing for varied atmospheric pressures

Field Testing Considerations

Laboratory testing alone cannot capture all aspects of deployment. Field testing provides:

• Operational evaluation during realistic exercises with actual military personnel
• Environmental exposure in desert, arctic, maritime, and tropical conditions
• Long-duration testing for aging effects
• System integration assessment for interactions with other equipment
• User interface evaluation for maintenance procedures and tool requirements

Accelerated Aging and Long-Term Reliability

With military equipment often in service for decades, long-term performance requires:

• Accelerated thermal aging with service life prediction modeling
• Compression set evaluation under extended durations
• Cyclic compression testing for repeated access scenarios
• Environmental cycling between different exposure conditions
• Combined effects testing for simultaneous stressors

Surface Preparation and Installation

Proper preparation and installation significantly impact performance:

• Surface Preparation: Includes cleaning procedures, 32-64 microinch surface finish requirements, appropriate conductive coatings, corrosion prevention treatments, and adhesion promotion
• Installation Techniques: Involves clean handling procedures, precise alignment, proper compression methods, appropriate fastener selection, and compatible sealant application when required

Through comprehensive testing, proper surface preparation, and correct installation techniques, RF gaskets in military communications systems can achieve their required performance and reliability throughout operational life.

Navigating the regulatory landscape for military RF gasket procurement requires understanding complex standards, export controls, and supply chain security requirements. Early compliance planning helps avoid costly delays in delivering components that meet both performance and regulatory standards.

Key Military Standards Matrix

Export Control Framework

Military RF gasket technologies often fall under strict export regulations:

• ITAR Controls: Category XI (Military Electronics) restrictions on technical data and manufacturing processes
• EAR Restrictions: Commerce Control List classifications and country-specific licensing
• FMS Requirements: Special documentation and handling procedures for foreign sales
• Technology Security: Controls on critical technology transfer and manufacturing locations

Supply Chain Security Elements

Modern defense procurement emphasizes:

1. Supplier Qualification: AS9100D certification, NIST 800-171 cybersecurity compliance, FOCI assessments
2. Counterfeit Prevention: AS5553/AS6174 compliance, independent testing, custody documentation
3. Cybersecurity Protection: CMMC certification, secure data exchange, CUI protection
4. Risk Management: Diversified supplier base, critical material plans, obsolescence management

Material Traceability Requirements

Defense contractors must maintain:

• Domestic Sourcing: Berry Amendment compliance, specialty metals restrictions
• Lot Traceability: Documentation to raw material sources and manufacturing locations
• Material Compliance: Avoidance of restricted materials and conflict minerals
• Supply Chain Risk: Vulnerability assessments and alternative material qualification

Acquisition Navigation

Key considerations include:

• DFARS Requirements: Specialty metals restrictions, cybersecurity provisions
• FAR Compliance: Competition requirements, Buy American Act provisions
• Testing Protocols: First article testing, production lot acceptance
• Contract Structure: IP rights allocation, technical data package requirements

Working with experienced manufacturing partners who understand these complex requirements can significantly reduce compliance risks and procurement timelines. The landscape continues evolving toward greater emphasis on supply chain security, domestic sourcing, and cybersecurity protection.

The electromagnetic domain has become a decisive battlefield in modern warfare, where signal integrity directly impacts mission success and warfighter safety. RF gasket solutions provide critical protection in increasingly contested environments where electronic warfare and signal density present growing challenges.

Successful RF shielding implementation requires systematic consideration of electromagnetic performance, environmental durability, mechanical constraints, and long-term reliability. The most effective programs combine early RF integration, realistic testing, appropriate materials, precise installation, and comprehensive documentation.

Modus Advanced offers defense contractors a vertically integrated manufacturing partnership that streamlines the entire RF shield manufacturing process. Our comprehensive capabilities in metal housing production, Form-in-Place gasket dispensing, and precision machining are supported by an engineering-focused team that comprises over 10% of our staff. This integration reduces lead times, eliminates communication gaps, and enhances quality control.

When mission-critical communications cannot fail, choose Modus Advanced. Our AS9100 and ISO 9001 certifications, ITAR compliance, and defense industry experience ensure reliable performance in contested electromagnetic environments. Contact our engineering team today to discover how our approach can accelerate your program timeline.

One day matters when lives depend on reliable communications.

Understanding the total cost of ownership for EMI shielding solutions helps engineers make informed decisions that balance performance requirements with budget constraints.

Material Cost Comparisons

When evaluating material costs, it's crucial to consider not just the initial material expense but also the long-term implications of material choice.

Cost factors include:

• Raw material expenses
• Processing requirements
• Scrap rates
• Secondary operations
• Finishing requirements

Manufacturing Process Optimization

Optimizing manufacturing processes can significantly reduce costs without compromising shielding effectiveness.

Key considerations include:

• Design for manufacturability
• Process automation opportunities
• Tooling investments
• Production volume considerations
• Quality control requirements

Selecting and collaborating with the right manufacturing partner can significantly impact both product quality and development timeline. Early engagement with manufacturing partners often leads to better outcomes and faster time to market.

When to Involve Manufacturing Partners

The ideal time to involve manufacturing partners is during the initial design phase, before the design is finalized. This early involvement enables:

• Design for manufacturability input
• Material selection guidance
• Process optimization suggestions
• Cost reduction opportunities
• Timeline optimization

Design for Manufacturability (DFM)

Designing for manufacturing is serious business. A robust DFM process considers all aspects of production while maintaining design intent:

• Material selection optimization
• Process capability alignment
• Assembly efficiency
• Quality control requirements
• Cost considerations

Prototype to Production Transition

Successful transition from prototype to production requires careful planning and coordination:

• Process validation
• Tooling qualification
• Quality control implementation
• Documentation systems
• Production scheduling

Partner With The Best For Your Next EMI Shielding Project

EMI shielding in aerospace and defense applications represents a critical intersection of engineering design, materials science, and manufacturing expertise. Success requires careful attention to every aspect from initial design through final production and testing.

The key to successful implementation lies in:

• Understanding application-specific requirements
• Selecting appropriate materials and processes
• Implementing robust quality control measures
• Working with experienced manufacturing partners
• Maintaining documentation and traceability

When lives and missions depend on EMI shielding performance, there's no room for compromise. Partner with Modus Advanced – we understand these critical requirements and can help bring your designs to life with the precision and reliability that aerospace and defense applications demand.

Contact our team of expert engineers today.
