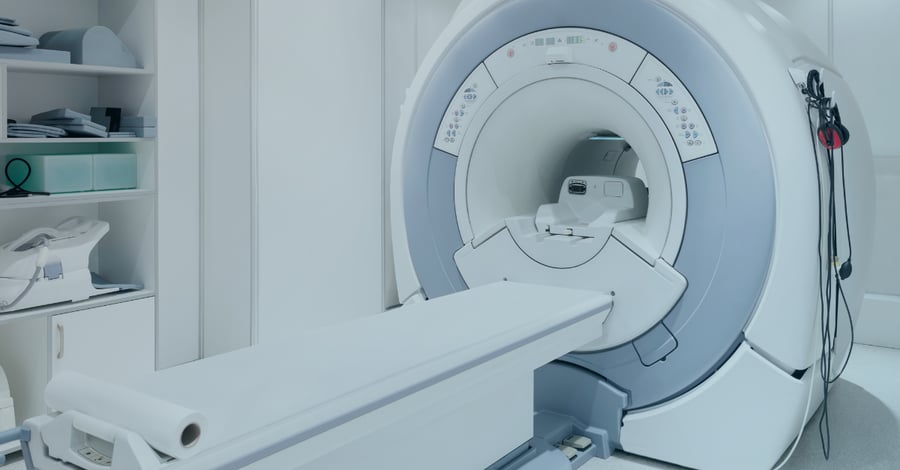

MRI machines represent one of the most sophisticated electromagnetic environments in modern medicine. These diagnostic powerhouses generate magnetic fields thousands of times stronger than Earth's natural magnetism while simultaneously requiring absolute electromagnetic isolation to produce clear, accurate images that can mean the difference between early disease detection and missed diagnoses.
The electromagnetic shielding requirements for MRI systems create unique engineering challenges that demand specialized conductive gaskets. These critical components must maintain perfect electromagnetic isolation while operating reliably in the demanding environment of a medical facility where patient safety cannot be compromised.
Learn everything you need to know about conductive gaskets in medical devices here!
Understanding MRI Electromagnetic Requirements
MRI machines operate within strictly controlled electromagnetic environments where external interference can corrupt diagnostic images and compromise patient care. The shielding enclosures surrounding MRI components require conductive gaskets that can effectively attenuate electromagnetic signals across a broad frequency spectrum.
These conductive gaskets must provide consistent shielding effectiveness typically exceeding 80 dB across frequencies from 30 MHz to 1 GHz. The challenge lies in maintaining this performance while meeting the stringent safety and reliability standards required in medical device applications.
Material Selection for Medical-Grade Applications
Selecting appropriate materials for conductive gaskets in MRI applications requires careful consideration of both electromagnetic performance and medical device compliance standards. The base elastomer must provide long-term stability while the conductive filler ensures reliable electromagnetic shielding throughout the device's operational life.
Silicone Base Materials
Medical-grade silicone serves as the primary base material for MRI conductive gaskets due to its excellent biocompatibility and temperature stability. These materials must meet USP Class VI requirements and maintain flexibility across temperature ranges from -40°C to 125°C (-40°F to 257°F).
The silicone matrix provides the mechanical properties necessary for proper sealing while accommodating the thermal expansion and contraction cycles common in MRI facilities. Additionally, medical-grade silicones offer superior resistance to cleaning agents and sterilization processes used in healthcare environments.
Conductive Filler Options
The choice of conductive filler significantly impacts both electromagnetic performance and long-term reliability of conductive gaskets. Common filler materials include silver-coated particles, nickel-graphite compounds, and silver-aluminum combinations, each offering distinct advantages for MRI applications.
Filler Material | Volume Resistivity (Ω-cm) | Temperature Range | Key Benefits |
Silver/Copper | 0.002-0.004 | -55°C to 125°C (-67°F to 257°F) | Excellent conductivity, corrosion resistance |
Silver/Aluminum | 0.003-0.005 | -55°C to 125°C (-67°F to 257°F) | Lightweight, good galvanic compatibility |
Nickel/Graphite | 0.008-0.030 | -55°C to 125°C (-67°F to 257°F) | Cost-effective, aluminum compatible |
Silver-filled compounds typically provide the highest conductivity and most consistent performance over time, making them ideal for critical MRI shielding applications where electromagnetic isolation cannot be compromised.
Design Considerations for MRI Environments
Designing conductive gaskets for MRI machines requires understanding the unique mechanical and environmental stresses these components will encounter. The powerful magnetic fields, temperature variations, and stringent cleanliness requirements create specific design challenges that must be addressed through careful engineering.
Compression and Deflection Requirements
Proper compression ratios are critical for achieving optimal shielding effectiveness while ensuring long-term gasket reliability. Conductive gaskets in MRI applications typically require compression between 20-40% of their original height to achieve proper electrical contact while maintaining mechanical integrity.
Over-compression can damage the conductive particles and reduce shielding effectiveness, while under-compression may result in poor electrical contact and electromagnetic leakage. The gasket design must account for tolerance variations in mating surfaces and potential settling over time.
Environmental Resistance
MRI facilities present challenging environmental conditions that conductive gaskets must withstand throughout their operational life. These environments often include:
- Temperature fluctuations from air conditioning cycling
- Humidity variations affecting electrical properties
- Exposure to medical cleaning agents and disinfectants
- Potential exposure to RF energy from the MRI system itself
The gasket materials must maintain stable electrical and mechanical properties despite these environmental stresses to ensure consistent electromagnetic shielding performance.
Manufacturing Methods for Precision Applications
The complex geometries and tight tolerances required for MRI conductive gaskets often necessitate advanced manufacturing approaches that can deliver consistent results across production quantities. Form-in-place (FIP) dispensing has emerged as the preferred method for many MRI applications due to its ability to create precise, repeatable gasket profiles.
FIP dispensing allows for creation of conductive gaskets with complex geometries that would be difficult or impossible to achieve through traditional die-cutting methods. This precision is particularly valuable in MRI applications where electromagnetic continuity must be maintained around irregular enclosure shapes.
The automated dispensing process also provides better control over gasket dimensions and compression characteristics, resulting in more consistent shielding performance across production units. Quality control systems can monitor dispense parameters in real-time to ensure each gasket meets the stringent requirements of medical device applications.
Quality Assurance and Testing Protocols
Ensuring consistent performance of conductive gaskets in MRI applications requires comprehensive testing protocols that verify both electromagnetic and mechanical properties. These testing procedures must validate performance under the specific conditions the gaskets will encounter in actual MRI installations.
Electromagnetic Testing Requirements
Shielding effectiveness testing must cover the full frequency range relevant to MRI operation, typically from 30 MHz to several GHz. Testing should be performed on actual gasket samples compressed to their intended working height using fixtures that simulate the actual installation geometry.
Volume resistivity measurements provide important data about the consistency of conductive properties throughout the gasket material. These measurements should be performed both on uncured material and on fully cured gasket samples to ensure the curing process does not adversely affect electrical properties.
Mechanical Property Validation
Compression set testing at elevated temperatures validates the long-term sealing capability of conductive gaskets under sustained compression. Testing at 70°C (158°F) for 72 hours provides accelerated aging data that predicts gasket performance over extended operational periods.
Adhesion testing ensures the gasket will remain properly bonded to the housing throughout the thermal cycling and mechanical stresses encountered in MRI service. Poor adhesion can lead to electromagnetic leakage and compromised shielding effectiveness.
Partnering for MRI Shielding Excellence
Developing effective conductive gaskets for MRI applications requires deep understanding of both electromagnetic principles and medical device requirements. The intersection of high-performance materials, precision manufacturing, and stringent quality standards demands an experienced manufacturing partner with proven expertise in medical device applications.
Modus Advanced brings together the engineering expertise, advanced manufacturing capabilities, and quality systems necessary to deliver conductive gaskets that meet the demanding requirements of MRI applications. Our AS9100 and ISO 9001 certifications, combined with our team of engineers representing more than 10% of our staff, ensure your MRI shielding solutions receive the technical attention and manufacturing precision they require.
When patient safety and diagnostic accuracy depend on electromagnetic isolation, choose a partner who understands the critical nature of every component. Contact our engineering team to discuss how our conductive gasket solutions can enhance the performance and reliability of your MRI systems.
