Navigating Custom Cut Gasket Manufacturing Decisions
Engineers developing sealing solutions face a critical decision when selecting custom gasket cutting methods. The choice between die cutting, waterjet cutting, and digital cutting directly impacts product development timelines, manufacturing costs, and final component performance.
Each cutting method offers distinct advantages depending on material properties, design complexity, volume requirements, and quality specifications. Understanding these differences enables informed decision-making that optimizes both technical performance and project economics for custom die cut gaskets.
Three Primary Methods for Custom Gasket Cutting
Die Cutting: The High-Volume Standard for Custom Die Cut Gaskets
Die cutting utilizes precision-made steel rule dies, solid milled dies, or compound male/female dies to punch custom cut gaskets from sheet materials. This process requires creating a physical cutting tool specific to each gasket geometry.
The method excels in high-volume production scenarios where consistent repeatability and cost-per-part efficiency are paramount. Steel rule dies represent the most economical tooling option, while solid milled dies provide enhanced accuracy for demanding applications.

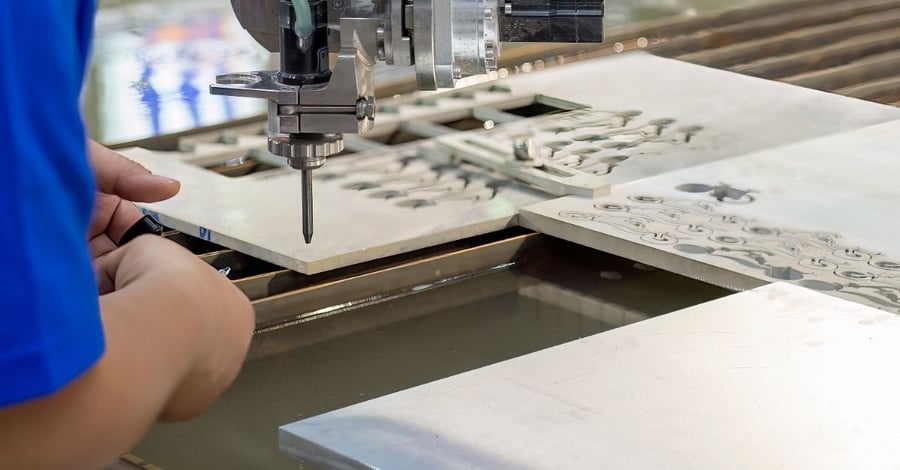

Waterjet Cutting: Precision Through Pressure
Waterjet cutting employs ultra-high-pressure water streams — reaching 620 MPa (90,000 psi) — to cut through materials with exceptional precision. The addition of garnet abrasive particles enables cutting through materials up to 152 mm (6 inches) thick, including hardened steels and exotic alloys.
This computer-controlled process eliminates tooling requirements while maintaining tight tolerances. Multiple cutting heads operate simultaneously, providing scalability for larger production runs.
Digital Cutting: Flexibility for Development
Digital cutting, also known as CNC cutting, uses computer-controlled precision knives to cut gasket materials. Two primary cutting implements are employed: drag knives: for thinner materials and pneumatic oscillating knives: for thicker applications.
The process offers maximum flexibility for design iterations and rapid prototyping without tooling investments. Material nesting capabilities optimize material utilization while maintaining precision cutting paths.
Custom Gasket Cutting Methods: Complete Comparison
Criteria | Die Cutting | Waterjet Cutting | Digital Cutting |
Setup Time | 1-2 weeks (tooling) | Immedaite | Immediate |
Tooling Cost | $300-$700 per design | None | None |
Material Thickness Limit | 9.5 mm (3/8") cellular, 3.2 mm (1/8") solid | 152 mm (6")+ | 25.4 mm (1") |
Minimum Feature Size | Limited by material thickness | 1.0 mm (0.040") | 0.5 mm (0.020") |
Production Rate | 3-4 parts/minute | Variable (multi-head) | 1-2 parts/minute |
Ideal Volume Range | 100+ parts | 10-1000 parts | 1-100 parts |
Material Considerations for Custom Cut Gaskets Manufacturing
How Thickness and Density Impact Custom Gasket Cutting Methods
Material properties fundamentally determine cutting method suitability. Dense elastomeric materials (BL2 designation) exhibit different cutting characteristics compared to film materials (BL1) or cellular foams (BL3).
Die cutting performance degrades with thicker materials due to punch deformation effects. Solid rubber materials over 3.2 mm (1/8 inch) thickness often require alternative cutting methods to maintain dimensional accuracy. The "dish" effect becomes pronounced as thickness increases, creating edge concavity that may affect sealing performance.
Waterjet cutting excels with challenging material combinations. Ultra-hard compounds, metal-filled elastomers, and thick cross-sections that defeat other cutting methods respond well to waterjet processing.
Read our Custom Gasket Production Guide.
Custom Gasket Cutting Material Compatibility Reference
Material Type | Thickness Range | Die Cutting | Waterjet Cutting | Digital Cutting |
Film Materials (BL1) | Up to 6.3 mm (0.25") | Optimal | Good | Excellent |
Dense Elastomers (BL2) | 6.3-12.7 mm (0.25"-0.50") | Limited | Excellent | Good |
Foam Materials (BL3) | Over 12.7 mm (0.50") | Poor | Excellent | Poor |
Metal-Filled Compounds | Variable | Poor | Excellent | Limited |
Temperature-Sensitive | Variable | Limited | Good | Excellent |
Ultra-Hard Durometer | Variable | Poor | Excellent | Limited |
Specialized Material Processing Requirements
Specialized materials requiring extreme temperature storage — such as compounds maintained at -25°C (-13°F) — demand careful process selection. Die cutting's mechanical deformation may compromise material integrity, while waterjet's minimal heat input preserves material properties.
Digital cutting offers controlled processing speeds that minimize heat buildup in temperature-sensitive compounds. The ability to adjust cutting parameters in real-time provides process optimization for challenging materials.
Precision Standards: Custom Die Cut Gaskets Tolerance Specifications
Achievable Tolerances by Cutting Method
Standard manufacturing tolerances vary significantly between cutting methods for custom cut gaskets:
Die Cut Tolerances:
- Film materials (BL1): ±0.25 mm (±0.010") for dimensions under 25.4 mm (1.0")
- Dense materials (BL2): ±0.38 mm (±0.015") for dimensions under 25.4 mm (1.0")
- Foam materials (BL3): ±0.63 mm (±0.025") for dimensions under 25.4 mm (1.0")
Waterjet Cutting Tolerances:
- Standard tolerance: ±0.13 mm (±0.005")
- Achievable with proper setup: ±0.08 mm (±0.003")
Digital Cutting Tolerances:
- Standard tolerance: ±0.20 mm (±0.008")
- Overcut considerations: Knife width affects corner geometry
Edge Quality Requirements for Critical Applications
Waterjet cutting produces the smoothest edge finish among all cutting methods. The high-pressure water stream creates minimal material distortion while maintaining consistent edge perpendicularity.
Die cutting edge quality depends heavily on tooling condition and material properties. Sharp tooling produces clean cuts in appropriate materials, while worn dies create rough or angled edges.
Custom Gasket Cutting Method Selection: Decision Framework
When to Choose Each Custom Gasket Cutting Method
Decision Criteria | Primary Question | Die Cutting | Waterjet | Digital |
Volume | Annual quantity > 100? | Yes | Maybe | No |
Material | Thickness > 3.2 mm (1/8") solid? | No | Yes | Maybe |
Timeline | Need parts within 48 hours? | No | Maybe | Yes |
Budget | Can absorb $300-700 tooling cost? | Yes | N/A | N/A |
Design Status | Design finalized/stable? | Yes | Maybe | No |
Complexity | Complex geometry/tight radii? | Limited | Yes | Yes |
Optimal Selection Criteria for Custom Die Cut Gaskets
Choose Die Cutting When:
- Production volumes exceed 100 parts annually
- Material thickness remains under 3.2 mm (1/8 inch) for solid materials
- Design geometry is relatively simple without narrow features
- Cost-per-part minimization is the primary objective
- Long-term production stability is anticipated
- Tooling investment can be amortized over production run
- Material properties are compatible with mechanical punching
- Edge quality requirements are moderate
Choose Waterjet Cutting When:
- Materials exceed standard die cutting thickness limits
- Exceptional edge quality is required
- Part geometry includes complex curves or tight radius features
- Moderate volumes (10-1000 parts) are anticipated
- Material properties present cutting challenges
- Multiple material types require processing
- Prototype-to-production scaling is planned
- Nested cutting can optimize material usage
Choose Digital Cutting When:
- Rapid prototyping or design iteration is required
- Production volumes are low (under 50 parts)
- Design changes are anticipated during development
- Material thickness falls between 3.2 mm and 25.4 mm (1/8 inch and 1 inch)
- Tooling investment cannot be justified
- Same-day delivery is essential
- Multiple design variations need evaluation
- Material waste minimization is critical
Read our Guide to Working with Custom Manufacturers.
Frequently Asked Questions About Custom Gasket Cutting
What is the difference between custom die cut gaskets and standard gaskets?
Custom die cut gaskets are manufactured to exact specifications for specific applications, while standard gaskets are pre-designed for common applications. Custom cut gaskets offer precise dimensional control and material selection for specialized sealing requirements.
How do I determine the best custom gasket cutting method for my application?
Selection depends on volume requirements: (high volume favors die cutting), material properties: (thick materials require waterjet), timeline constraints: (urgent needs favor digital cutting), and budget considerations: (tooling costs for die cutting).
What tolerances can I expect with different custom gasket cutting methods?
Die cutting: ±0.25 mm to ±0.63 mm depending on material type, Waterjet cutting: ±0.13 mm standard, Digital cutting: ±0.20 mm standard. Waterjet provides the tightest tolerances for precision applications.
Can custom gasket cutting handle specialty materials?
Yes, each method offers different material capabilities. Waterjet cutting: handles the widest range including metal-filled compounds and ultra-hard materials, Digital cutting: excels with temperature-sensitive materials, Die cutting: optimal for standard elastomeric materials.
Common Custom Gasket Cutting Challenges and Engineering Solutions
Troubleshooting Material and Method Compatibility Issues
Challenge: Material Too Thick for Die Cutting
- Solution: Evaluate waterjet cutting for materials over 3.2 mm (1/8") thickness
- Alternative: Consider material substitution to thinner equivalent
- Consideration: Verify thickness requirements are truly necessary for function
Challenge: Volume Too Low for Die Cutting Economics
- Solution: Digital cutting for quantities under 50 parts
- Alternative: Combine multiple small orders to reach die cutting minimum
- Consideration: Evaluate long-term production forecasts
Challenge: Tight Timeline Conflicts with Die Cutting Setup
- Solution: Digital cutting for same-day needs
- Alternative: Waterjet cutting for 2-3 day delivery
- Consideration: Plan ahead for future orders requiring die cutting
Challenge: Complex Geometry Exceeds Die Cutting Capability
- Solution: Waterjet cutting for intricate curves and tight radii
- Alternative: Design simplification to enable die cutting
- Consideration: Evaluate if complexity is functionally necessary
Challenge: Material Properties Unknown or Problematic
- Solution: Material testing with digital cutting samples first
- Alternative: Consult with material supplier for cutting recommendations
- Consideration: Waterjet often handles challenging materials successfully
Challenge: Quality Requirements Exceed Standard Tolerances
- Solution: Evaluate secondary machining operations
- Alternative: Consider design modifications to relax tolerances
- Consideration: Verify functional necessity of tight tolerances
Quality Standards and Manufacturing Partnership for Custom Cut Gaskets
Manufacturing partner selection requires evaluation of quality systems supporting each cutting method. ISO 9001 certification: provides baseline quality assurance, while AS9100 certification: addresses aerospace and defense requirements for custom die cut gaskets.
ITAR compliance: becomes critical for defense applications regardless of cutting method selected. Custom die cut gaskets used in military applications require controlled access and documentation throughout the manufacturing process.
Process validation capabilities vary between methods. Die cutting: provides inherent repeatability once tooling is qualified, while waterjet and digital cutting: rely on machine calibration and process monitoring systems.
Engineering Partnership: Optimizing Custom Gasket Cutting Success
Successful custom gasket cutting projects benefit from early manufacturing partner engagement. Design for Manufacturing (DFM) reviews identify potential issues before production commitments, reducing development costs and schedule risks.
Vertically integrated manufacturing partners offer advantages across all cutting methods. The ability to perform secondary operations — such as adhesive application, assembly, or packaging — under single-source control simplifies supply chain management while maintaining quality consistency.
Engineering support becomes particularly valuable when evaluating cutting method trade-offs. Partners with demonstrated expertise across multiple cutting technologies provide objective method recommendations based on technical requirements rather than equipment limitations.
When lives depend on your sealing solutions, choosing a manufacturing partner with comprehensive capabilities and proven quality systems makes the critical difference. Our engineering team stands ready to evaluate your custom gasket cutting requirements and recommend the optimal manufacturing approach for your specific application.
