Submit a DesignKey Points
- Mil spec grade materials meet DoD requirements: MIL-DTL-83528C defines performance standards for elastomeric EMI/RFI shielding gaskets, establishing requirements for shielding effectiveness exceeding 90 dB, compression set characteristics, and environmental resistance across temperature ranges from -55°C to +125°C (-67°F to +257°F).
- UL 94 V-0 rating is standard for defense electronics: Fire-resistant materials must self-extinguish within 10 seconds and produce no flaming drips, minimizing fire hazards in vehicles, aircraft, and ground installations where suppression systems have limited effectiveness.
- CMMC Level 2 requires complete material traceability: Defense manufacturers must implement 110 security practices protecting Controlled Unclassified Information (CUI), with material certifications documented from certified mill test reports through final assembly to satisfy AS9100 and CMMC data protection standards.
- Die-cutting tolerances depend on material density: Dense elastomeric materials achieve ±0.38 mm (±0.015") tolerances for features under 25.4 mm (1.0"), while foam materials require ±0.63 mm (±0.025") due to cellular structure compression during cutting.
- Vertical integration reduces supply chain risk: Combining die-cutting, CNC machining, FIP dispensing, and specialty coatings under one roof eliminates coordination overhead while maintaining unified traceability for CMMC compliance.

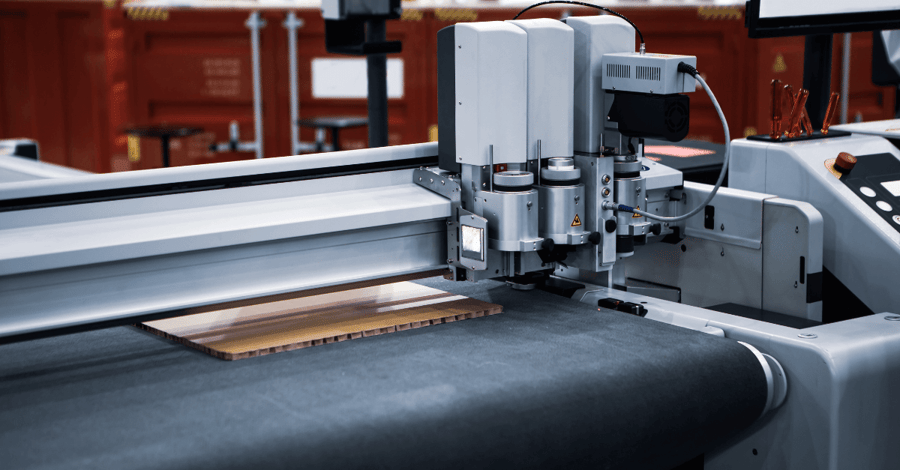

Understanding Mil Spec Grade Materials for Defense Electronics
Defense electronics operate in environments that destroy commercial components within hours. EMI shielding gaskets protect communication systems in 65°C (150°F) desert heat, then function at \-40°C (-40°F) at high altitude. Thermal pads beneath radar amplifiers dissipate heat while resisting salt spray, vibration, and electromagnetic interference.
Mil spec grade materials undergo rigorous testing before earning their designations. Every elastomeric gasket, conductive shield, and thermal interface pad must meet military specifications defining performance, traceability, and long-term reliability. These requirements extend to flammability ratings, environmental compliance, and supply chain documentation satisfying CMMC cybersecurity standards.
Service members depend on systems these components enable. Material selection becomes a matter of mission success rather than specification compliance when radar systems must operate reliably during missile defense operations or avionics packages must perform during critical missions.
Read the guide to CMMC Level 2 and DFARS 252.204-7012
MIL-DTL-83528C Performance Standards
MIL-DTL-83528C establishes performance requirements for elastomeric EMI/RFI shielding gaskets. Materials meeting these specifications deliver predictable performance across temperature extremes, humidity exposure, and mechanical stress.
Conductive elastomers utilize nickel-graphite, silver-aluminum, or silver-copper filler systems. These conductive particles create electrical pathways through the elastomeric matrix, achieving shielding effectiveness exceeding 90 dB across 200 MHz to 10 GHz frequency ranges. Silicone base elastomers provide mechanical properties allowing proper compression and sealing while maintaining electrical conductivity.
Volume resistivity defines electrical performance. Silver-aluminum compounds achieve volume resistivity as low as 0.003 Ohm-cm, while nickel-graphite systems range from 0.03 to 0.08 Ohm-cm. Lower resistivity correlates with improved shielding effectiveness, though material selection must balance electrical performance against mechanical properties and cost.
Temperature Performance in Extreme Environments
Materials must maintain dimensional stability, electrical conductivity, and mechanical properties from -55°C to +125°C (-67°F to +257°F). Silicone elastomers provide reliable performance across this span. Fluorosilicone materials extend the upper limit to 175°C (347°F) for applications near high-temperature electronics.
Thermal interface materials face additional challenges. Gap-filling thermal pads conduct heat from components operating at junction temperatures exceeding 125°C (257°F) while remaining compliant enough to accommodate surface irregularities. Material selection balances thermal conductivity (measured in W/m·K) against conformability required to eliminate air gaps.
UL 94 V-0 Flammability Requirements
UL 94 establishes classifications defining material behavior when exposed to flame. V-0 rated materials self-extinguish within 10 seconds after flame removal and show no flaming drips. V-1 materials extinguish within 30 seconds, while V-2 materials may produce flaming drips.
Defense electronics applications almost universally require V-0 ratings to minimize fire hazards. Form-in-Place gasket materials, die-cut elastomeric seals, and thermal interface pads for defense applications should carry UL 94 V-0 certifications. Silicone elastomers achieve V-0 ratings through flame-retardant additive packages that don't compromise electrical or mechanical properties.
Verification requires reviewing manufacturer technical documentation, ensuring the specific formulation and thickness matches tested configurations. Many conductive silicones filled with nickel-coated graphite particles combine UL 94 V-0 flame ratings with EMI shielding effectiveness, meeting both safety and performance requirements.
RoHS Compliance in Defense Manufacturing
The Restriction of Hazardous Substances (RoHS) directive limits specific materials in electrical equipment. While defense applications often qualify for RoHS exemptions, many programs voluntarily comply to streamline global supply chains and anticipate regulatory changes.
RoHS restricts lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), polybrominated diphenyl ethers (PBDE), and certain phthalates. Elastomeric materials generally contain none of these substances, but adhesive systems, release liners, and conductive filler treatments may introduce restricted materials. Verification requires examining complete material composition, including processing aids and surface treatments.
Material suppliers provide RoHS declarations documenting restricted substance testing. These declarations become part of technical data packages that CMMC traceability requirements mandate. Manufacturing partners must maintain documentation demonstrating every material component meets restriction limits.
CMMC Level 2 Material Traceability
Understanding CMMC Level 2 certification requirements and their implementation is essential for defense contractors handling Controlled Unclassified Information (CUI) or Federal Contract Information (FCI). CMMC Level 2 requires implementing 110 security practices protecting sensitive technical data throughout supply chains.
Material certificates of conformance (C of C) document that supplied materials meet specifications. Certificates include material composition, lot numbers, test results, and supplier certifications. Under CMMC requirements, these documents must be protected as CUI when revealing information about defense systems. Precision defense manufacturing partners must implement DFARS 252.204-7012 cybersecurity requirements with document management systems providing access controls, encryption, and audit trails demonstrating proper CUI handling.
Traceability extends beyond material suppliers to sub-tier vendors providing adhesives, release films, and specialty coatings. Complete material traceability requires documentation at every tier, with suppliers providing certificates linking materials to specific production lots. When material non-conformance occurs, traceability systems allow rapid identification of affected components and swift corrective action.
First Article Inspection and Documentation
Defense programs require material certifications exceeding commercial standards. First Article Inspection reports document dimensional verification, material testing, and performance validation for initial production units. These reports become part of permanent technical data packages and require updates when materials, processes, or suppliers change.
Defense subcontractors meeting DFARS 252.204-7021 supply chain requirements maintain quality management systems generating required documentation. Quality processes create audit trails from raw material receipt through final inspection, with each manufacturing step documented and traceable to specific operators, equipment, and date codes.
Precision Die-Cutting Tolerances
Precision die-cutting must accommodate elastomeric material properties while achieving tolerances ensuring proper fit and function. Dense solid materials achieve tighter tolerances than foam materials due to resistance to compression during cutting.
Standard Tolerance Specifications
Die-cutting tolerance capabilities vary with material classification, thickness, and feature size:
Material Type | Thickness | Feature Size | Tolerance |
Dense Solid (BL2) | Up to 6.3 mm (0.25") | Under 25.4 mm (1.0") | ±0.38 mm (±0.015") |
Dense Solid (BL2) | Up to 6.3 mm (0.25") | 25.4-160 mm (1.0"-6.3") | ±0.63 mm (±0.025") |
Foam (BL3) | Up to 6.3 mm (0.25") | Under 25.4 mm (1.0") | ±0.63 mm (±0.025") |
Foam (BL3) | Up to 6.3 mm (0.25") | 25.4-160 mm (1.0"-6.3") | ±0.81 mm (±0.032") |
These standard tolerances represent achievable dimensional control using proper tooling and material handling. Tighter tolerances become possible through enhanced tooling design and material selection, though this increases lead time and cost. Engineering collaboration during design phase identifies features truly requiring enhanced precision versus those functioning properly within standard tolerances.
Material thickness affects precision through the "dish" effect — slight concavity of cut edges from material compression during cutting. This becomes pronounced as thickness increases, particularly in foam materials where cellular structure compresses more readily than dense elastomers.
Form-in-Place Gasket Precision
Form-in-Place (FIP) dispensing offers alternatives to die-cutting for complex geometries or applications requiring continuous seals. Understanding the four keys to successful Form-in-Place gasket design helps engineers optimize FIP applications for defense electronics enclosures. FIP gasket tolerances differ due to dispensing process, with standard bead tolerances of ±0.15 mm (±0.006") achievable for conductive elastomer applications.
Nolato TriShield gaskets achieve height tolerances of ±0.10 mm for gaskets under 1 mm tall and ±0.15 mm for taller gaskets. These tolerances enable reliable RF shielding in missile defense system enclosures where space constraints demand thin, consistent gasket profiles. Triangular cross-sections reduce required compression force while maintaining shielding effectiveness.
Multi-Layer Assemblies for Complex Requirements
Defense electronics often require gaskets addressing multiple functional requirements simultaneously. Enclosure door seals must provide environmental protection against dust and moisture, electromagnetic shielding containing RF emissions, and thermal management conducting heat from internal components.
Multi-layer assemblies combine different materials addressing each requirement. Typical EMI/environmental seals might stack conductive elastomer gaskets for electromagnetic shielding, closed-cell foam for environmental sealing, and pressure-sensitive adhesive for attachment. Each layer serves specific functions, with material selection optimized for that purpose. Understanding how rubber bonds to metal substrates ensures proper adhesive selection and surface preparation for multi-layer assemblies in defense applications. Lamination processes bond layers together, creating single components simplifying assembly.
Proper adhesive selection ensures layers remain bonded through temperature cycling, vibration exposure, and compression/decompression cycles during enclosure operation. Some applications require differential thermal expansion compatibility, where rubber materials selected for vibration and shock isolation properties must accommodate expansion differences between metal housings and elastomeric seals without delamination.
Vertical Integration Advantages
RF shield enclosures require CNC machining, plating and coating processes, FIP gasket dispensing, and final assembly of converted materials. Managing these across multiple vendors introduces coordination challenges, shipping delays, and traceability complications conflicting with CMMC requirements and program schedules.
Vertical integration — performing multiple manufacturing processes under one roof — addresses these challenges while accelerating delivery and reducing risk. When the same manufacturing partner machines enclosures, dispenses conductive gaskets, applies EMI coatings, and assembles die-cut thermal pads, the entire process occurs within single quality systems with unified documentation and traceability.
This approach eliminates shipping time between vendors and removes coordination overhead of managing multiple supply chains. More importantly, it reduces risk. When single sources handle multiple manufacturing steps, coordination challenges and quality hand-offs that plague multi-vendor programs disappear.
AS9100 certification demonstrates capability managing quality requirements defense and aerospace programs demand. ITAR registration ensures proper handling of technical data related to defense articles. CMMC Level 2 certification protects Controlled Unclassified Information throughout manufacturing. These certifications represent systems, processes, and infrastructure enabling reliable defense component manufacturing.
Engineering Partnership Through Design Optimization
Die-cut component manufacturing begins long before cutting steel strikes elastomer. Design phase represents opportunities to optimize manufacturability, reduce cost, and improve performance through collaboration with manufacturing engineers. Engineering teams comprising more than 10% of staff review designs for manufacturability, provide material recommendations, and identify opportunities enhancing performance and production efficiency.
Design for Manufacturing (DFM) feedback prevents costly redesigns by identifying manufacturing challenges before production begins. Gasket designs with features too narrow for reliable die-cutting might work better with CNC cutting, or small design modifications allow standard die-cutting at lower cost. Material selection guidance helps engineers balance electrical conductivity, environmental resistance, and mechanical properties against cost and availability.
Rapid prototyping capabilities using the best manufacturing methods for custom molded rubber parts allow design validation before committing to production tooling. Waterjet or CNC cutting produces prototype gaskets in days rather than weeks, enabling iterative design refinement based on fit checks and performance testing. When testing reveals gaskets requiring different compression characteristics or EMI shielding effectiveness needing improvement, rapid prototyping supports quick design changes without production die expense.
Partner with Manufacturing Expertise
Your defense electronics designs deserve manufacturing partners understanding that one day matters. Every day sooner components move from design to production, the sooner systems serve those depending on them. Vertically integrated capabilities — encompassing die-cutting, CNC machining, FIP dispensing, and specialty coatings — reduce lead times while maintaining quality standards mission-critical applications require.
AS9100, ISO 9001, ITAR registration, and CMMC Level 2 certification demonstrate commitment to defense manufacturing requirements. These aren't credentials displayed on websites. They represent quality management systems, cybersecurity infrastructure, and engineering expertise enabling reliable component production for defense and aerospace applications. When lives depend on innovation, choose manufacturing partners understanding what's at stake.
