HIMAG™ MICROWAVE ABSORBERS

Easy to install and cost-effective microwave absorbing and RF absorbing materials.

Why We Created HiMag™

Our HiMag™ Series of EMI / Microwave absorbing materials are dense rubber and foam based absorbers engineered and tested to exhibit superior performance in the most demanding military and commercial applications. Standard and custom high performance HiMag™ microwave absorber materials can be fabricated into custom shapes on one of our CNC cutting machines. Prior to cutting, pressure sensitive adhesive (PSA) can be added to any of our HiMag™ absorber products to simplify installation.

Get a Quote



Key Benefits

Microwave Absorbers Made in the USA

Tuned Frequency Absorbers Offer 20dB of Attenuation

Resistant to UV, Ozone, Extreme Temperatures and Flame

Microwave Absorbers Used in Wireless Antenna Systems

Lowers Q Factor of the Cavity by Attenuating Cavity Oscillations

HIMAG™ MICROWAVE ABSORBERS

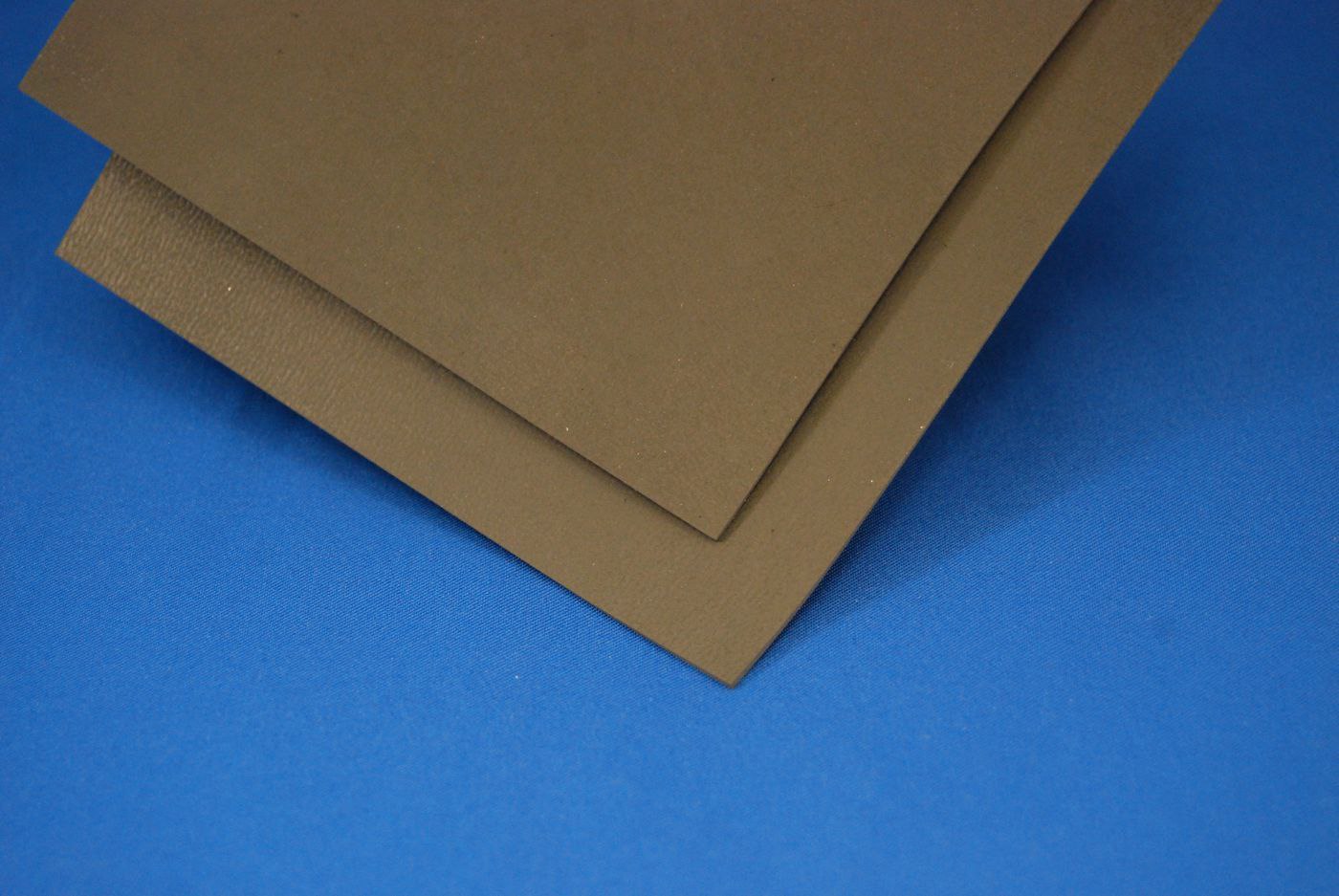

HiMag™ Cavity Resonance Absorbers

Thin, magnetically loaded sheet stock, having high loss at microwave frequencies, while maintaining the desirable characteristics of elastomeric binders. These absorbers are designed to exhibit high loss and are intended to be applied to metal surfaces inside microwave cavities to reduce the Q of the cavity. Our products attenuate energy at normal and high angles of incidence at frequencies from 1 GHz to 20 GHz.

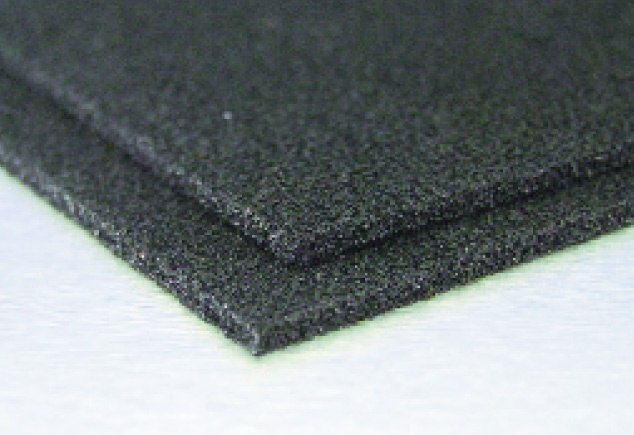

HiMag™ Lossy Foam Absorbers

Lightweight, conductive, carbon loaded sheet stock which provides broadband insertion loss at microwave frequencies. These absorbers are designed with a continuous electrical coating to exhibit high insertion loss and are intended to be applied to metal surfaces inside microwave cavities, housings, radomes, network enclosures, or antennae. Our products attenuate energy at normal and high angles of incidence at frequencies from 2 GHz to 18 GHz.

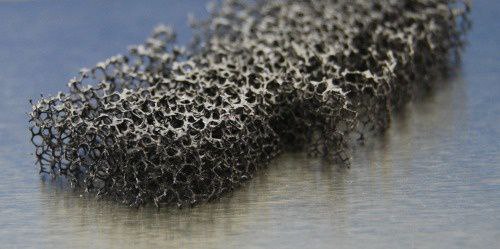

HiMag™ Reticulated Foam Absorbers

Lightweight, conductive, carbon loaded sheet stock which provide broadband loss at microwave frequencies. These absorbers are designed with a continuous gradient coating to exhibit high reflection loss and are intended to be applied to metal surfaces inside microwave cavities, housings, radomes, network enclosures, or antennae. Our products attenuate energy at normal and high angles of incidence at frequencies from 2 GHz to 18 GHz.

HiMag™ Surface Wave Absorbers

Thin, very highly loaded sheet stock having high loss at microwave frequencies, while maintaining the desirable characteristics of elastomeric binders. These products are the most heavily magnetically loaded absorber, designed to exhibit the highest loss, and intended to be applied to metal surfaces for traveling or surface wave attenuation. Our products attenuate traveling wave energy at frequencies from 1 GHz to 20 GHz.

HiMag™ Low Frequency Attenuation

Low Frequency Absorber is a magnetically loaded material having high loss at sub-microwave frequencies. Low Frequency Absorbers are designed with shaped magnetic particles which exhibit high permeability. The Low Frequency Absorber product line is the thinnest of the HiMag™ materials.

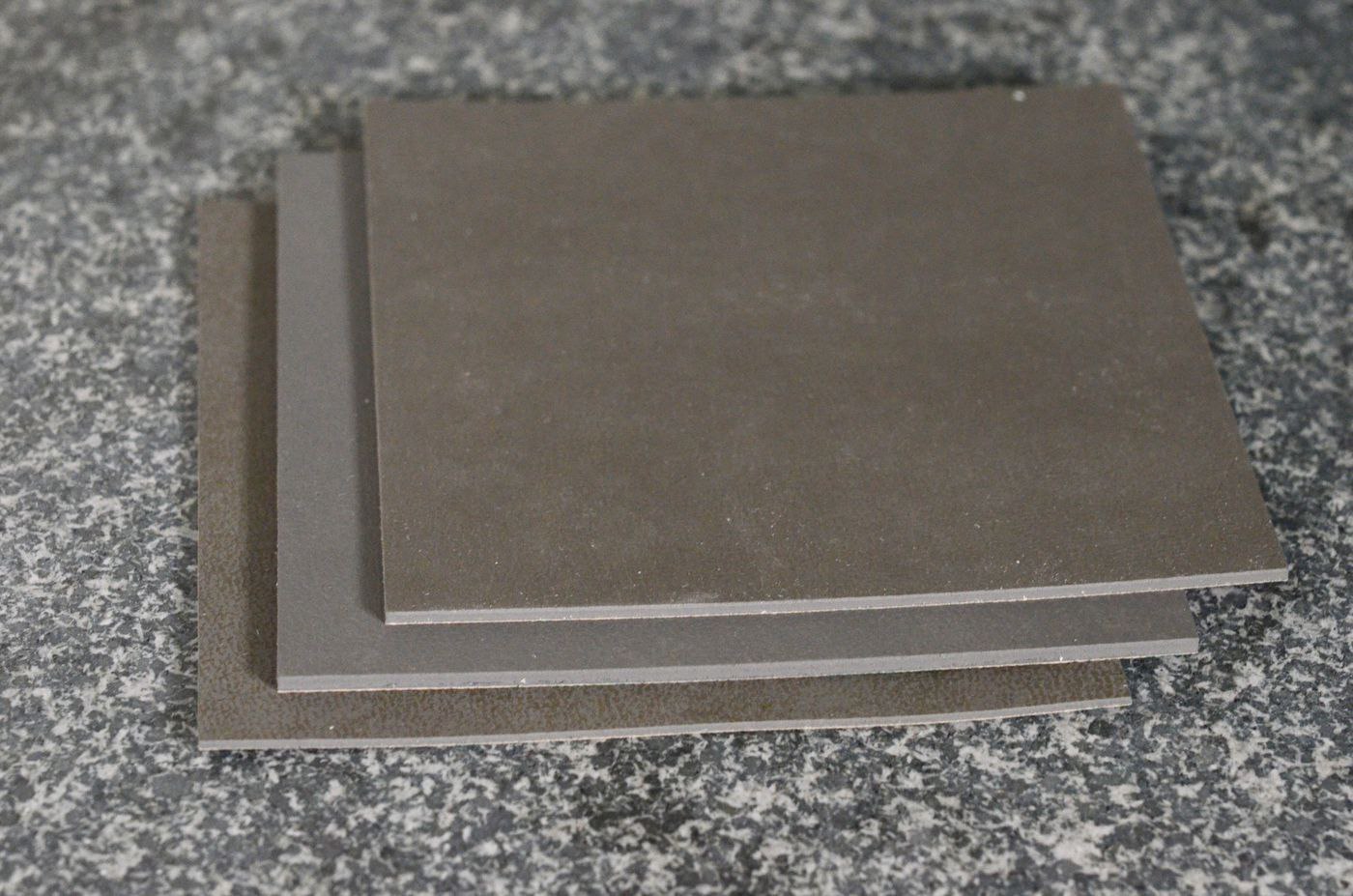

HiMag™ Tuned Frequency Absorber

Tuned Frequency Absorber is a magnetically loaded material having high loss at sub-microwave frequencies. Tuned Frequency Absorbers are designed with shaped magnetic particles which exhibit high permeability. The Tuned Frequency Absorber product line is the thinnest of the HiMag™ materials.

HiMag™ Silicone Absorber Caulk

HiMag™ Silicone Absorber Caulk is a two-part liquid silicone which is magnetically loaded to be electrically equivalent to the HiMag™ Cavity Resonance Absorber products. Silicone Absorber Caulk is an excellent solution for prototyping and testing. It can also be used in a production environment via an automated dispensing system.

HIMAG™ CAVITY RESONANCE ABSORBERS Reference Guide

Part Number
Frequency (GHz)
Thickness (inches)
Operating Temp (F)
PSA Available
Format
Datasheet
Part Number: AB340-0058
Frequency (GHz): 14 to 18
Thickness (inches): .02
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0542
Frequency (GHz): 13 to 17
Thickness (inches): .03
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0060
Frequency (GHz): 9 to 12
Thickness (inches): .04
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0061
Frequency (GHz): 6 to 11
Thickness (inches): .05
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0062
Frequency (GHz): 5 to 9
Thickness (inches): .06
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0063
Frequency (GHz): 4 to 7
Thickness (inches): .07
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0064
Frequency (GHz): 3 to 7
Thickness (inches): .08
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0065
Frequency (GHz): 2 to 5
Thickness (inches): .09
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0066
Frequency (GHz): 2 to 5
Thickness (inches): .10
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0067
Frequency (GHz): 1 to 3
Thickness (inches): .125
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print

HIMAG™ LOSSY FOAM ABSORBERS Reference Guide

Part Number
Frequency (GHz)
dB Loss (@10 GHz)
Thickness (inches)
Operating Temp (F)
PSA Available
Format
Datasheet
Part Number: AB-340-0083
Frequency (GHz): 2 to 18
dB Loss (@10 GHz): -8
Thickness (inches): .125
Operating Temp (F): -60 to 250
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB-340-0084
Frequency (GHz): 2 to 18
dB Loss (@10 GHz): -21.5
Thickness (inches): .25
Operating Temp (F): -60 to 250
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB-340-0085
Frequency (GHz): 2 to 18
dB Loss (@10 GHz): -35
Thickness (inches): .5
Operating Temp (F): -60 to 250
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB-340-0517
Frequency (GHz): 2 to 18
dB Loss (@10 GHz): -50
Thickness (inches): 1
Operating Temp (F): -60 to 250
PSA Available: Yes
Format: Die Cut to Print

HIMAG™ RETICULATED FOAM ABSORBERS Reference Guide

Part Number
Frequency (GHz)
Thickness (inches)
Operating Temp (F)
PSA Available
Format
Datasheet
Part Number: AB340-0078
Frequency (GHz): 8 to18
Thickness (inches): .375
Operating Temp (F): -60 to 250
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0079
Frequency (GHz): 8 to 40
Thickness (inches): .5
Operating Temp (F): -60 to 250
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0081
Frequency (GHz): 5 to 40
Thickness (inches): 1
Operating Temp (F): -60 to 250
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0082
Frequency (GHz): 5 to 40
Thickness (inches): 1.25
Operating Temp (F): -60 to 250
PSA Available: Yes
Format: Die Cut to Print

HIMAG™ SURFACE WAVE ABSORBERS Reference Guide

Part Number
Frequency (GHz)
Thickness (inches)
Operating Temp (F)
PSA Available
Format
Datasheet
Part Number: AB340-0068
Frequency (GHz): 14 to 18
Thickness (inches): 0.02
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0069
Frequency (GHz): 10 to 14
Thickness (inches): 0.03
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0070
Frequency (GHz): 8 to 12
Thickness (inches): 0.04
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0071
Frequency (GHz): 5 to 8
Thickness (inches): 0.05
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0072
Frequency (GHz): 4 to 7
Thickness (inches): 0.06
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0073
Frequency (GHz): 3 to 6
Thickness (inches): 0.07
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0074
Frequency (GHz): 3 to 6
Thickness (inches): 0.08
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0075
Frequency (GHz): 2 to 4
Thickness (inches): 0.09
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0076
Frequency (GHz): 2 to 4
Thickness (inches): 0.10
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0077
Frequency (GHz): 1 to 3
Thickness (inches): 0.125
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print

HIMAG™ LOW FREQUENCY ATTENUATION Reference Guide

Part Number
Frequency
Permeability (@ 100MHz)
Thickness (inches)
PSA Available
Format
Datasheet
Part Number: AB340-0105
Frequency: 1 MHz to 3 GHz
Permeability (@ 100MHz): μ’ = 32
Thickness (inches): 0.005
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0110
Frequency: 1 MHz to 3 GHz
Permeability (@ 100MHz): μ’ = 32
Thickness (inches): 0.01
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0120
Frequency: 1 MHz to 3 GHz
Permeability (@ 100MHz): μ’ = 32
Thickness (inches): 0.02
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0140
Frequency: 1 MHz to 3 GHz
Permeability (@ 100MHz): μ’ = 32
Thickness (inches): 0.04
PSA Available: Yes
Format: Die Cut to Print

HIMAG™ TUNED FREQUENCY ABSORBER Reference Guide

Part Number
Frequency (GHz)
Thickness (inches)
Operating Temp (F)
PSA Available
Format
Datasheet
Part Number: AB340-0041
Frequency (GHz): 2.00
Thickness (inches): 0.12
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0045
Frequency (GHz): 6.00
Thickness (inches): 0.07
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0048
Frequency (GHz): 9.00
Thickness (inches): 0.047
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0200
Frequency (GHz): 3.13
Thickness (inches): 0.095
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0201
Frequency (GHz): 4.25
Thickness (inches): 0.076
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0202
Frequency (GHz): 5.15
Thickness (inches): 0.02
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0203
Frequency (GHz): 6.25
Thickness (inches): 0.068
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0204
Frequency (GHz): 8.25
Thickness (inches): 0.057
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0205
Frequency (GHz): 8.50
Thickness (inches): 0.057
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0206
Frequency (GHz): 9.38
Thickness (inches): 0.057
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0207
Frequency (GHz): 10.30
Thickness (inches): 0.063
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0208
Frequency (GHz): 12.50
Thickness (inches): 0.053
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0209
Frequency (GHz): 15.35
Thickness (inches): 0.043
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0210
Frequency (GHz): 20.60
Thickness (inches): 0.043
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0211
Frequency (GHz): 25.00
Thickness (inches): 0.037
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0212
Frequency (GHz): 30.9
Thickness (inches): 0.032
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print
Part Number: AB340-0052
Frequency (GHz): 13.00
Thickness (inches): 0.056
Operating Temp (F): -60 to 375
PSA Available: Yes
Format: Die Cut to Print

HIMAG™ SILICONE ABSORBER CAULK Reference Guide

Part Number
Elastomer
Hardness (Shore A)
Operating Temp (F)
Format
Datasheet
Part Number: AB340-0040
Elastomer: Liquid Silicone
Hardness (Shore A): 85
Operating Temp (F): 350
Format: 1 quart, 8 oz. SEM-Kit
