NOLATO COMPASHIELD® EXTRUSION

Innovative product line designed to act as an environmental seal as well as EMI shielding gasket.

Why We Work With NOLATO COMPASHIELD® EXTRUSION

Designers no longer need to choose between an environmental seal or EMI shielding gasket. Our partner, Nolato Silikonteknik solved the issue by merging both types gaskets into a single product. Compashield Extrusion features a thin electrically conductive shield co-extruded on a high performance silicone rubber base.

With production capabilities in the USA and China, Modus Advanced, Inc. is well positioned to deliver Compashield Extrusion spliced into custom shapes and sizes directly to your production facility.

Get a Quote



Key Benefits

EMI Shielding Gasket and Environmental Seal

Low Compression Set

Low Compression Force

USA and China EMI Shielding Gasket Production

Multiple Configurations Available

Cost Effective Alternative to Traditional EMI Shielding

NOLATO COMPASHIELD® EXTRUSION

Learn more about all of the Nolato Compashield® product line from Nolato's Gasket Guide.

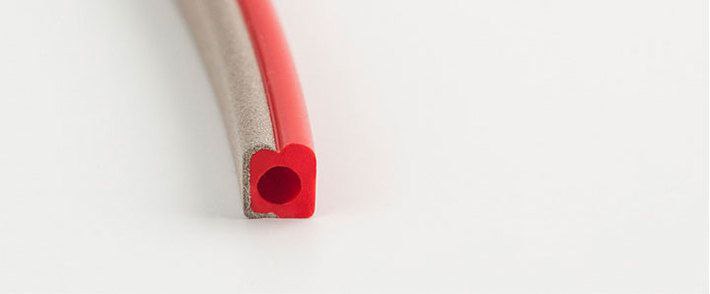

Compashield® Extrusion EE Gaskets

Compashield® Extrusion EE extruded EMI shielding gaskets combine a thin layer of nickel graphite or silver aluminum co-extruded on to a high performance silicone base. The combination of the materials creates an all in one gasket perfectly suited to solve EMI shielding issues in extreme environments.

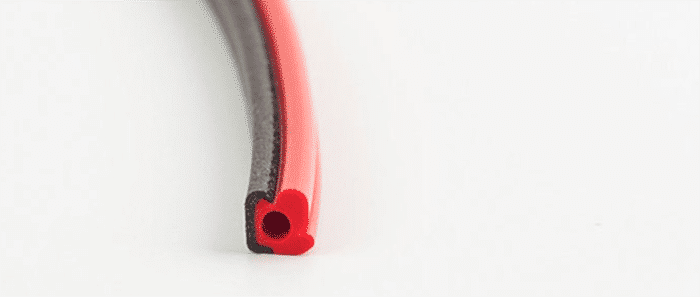

Compashield® Extrusion Press-Fit Gaskets

Compashield® Extrusion Press-Fit extruded EMI shielding gaskets combine the same innovative electrically conductive layer over silicone as the EE gaskets, but adds a small press-fit feature to aid in assembly and eliminates the need for adhesive. The addition of the press-fit feature results in 30 dB better shielding effectiveness than the standard EE gasket.

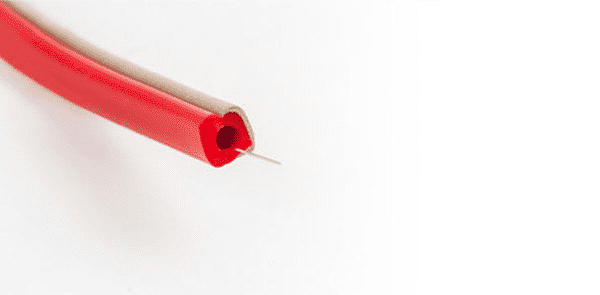

Compashield® Extrusion Anti-Stretch EMI Shielding Gaskets

Compashield® Extrusion Anti-Stretch EMI Shielding gaskets are similar to the EE gaskets, but also have an integrated metal thread designed to prevent stretching and shrinking during gasket installation.

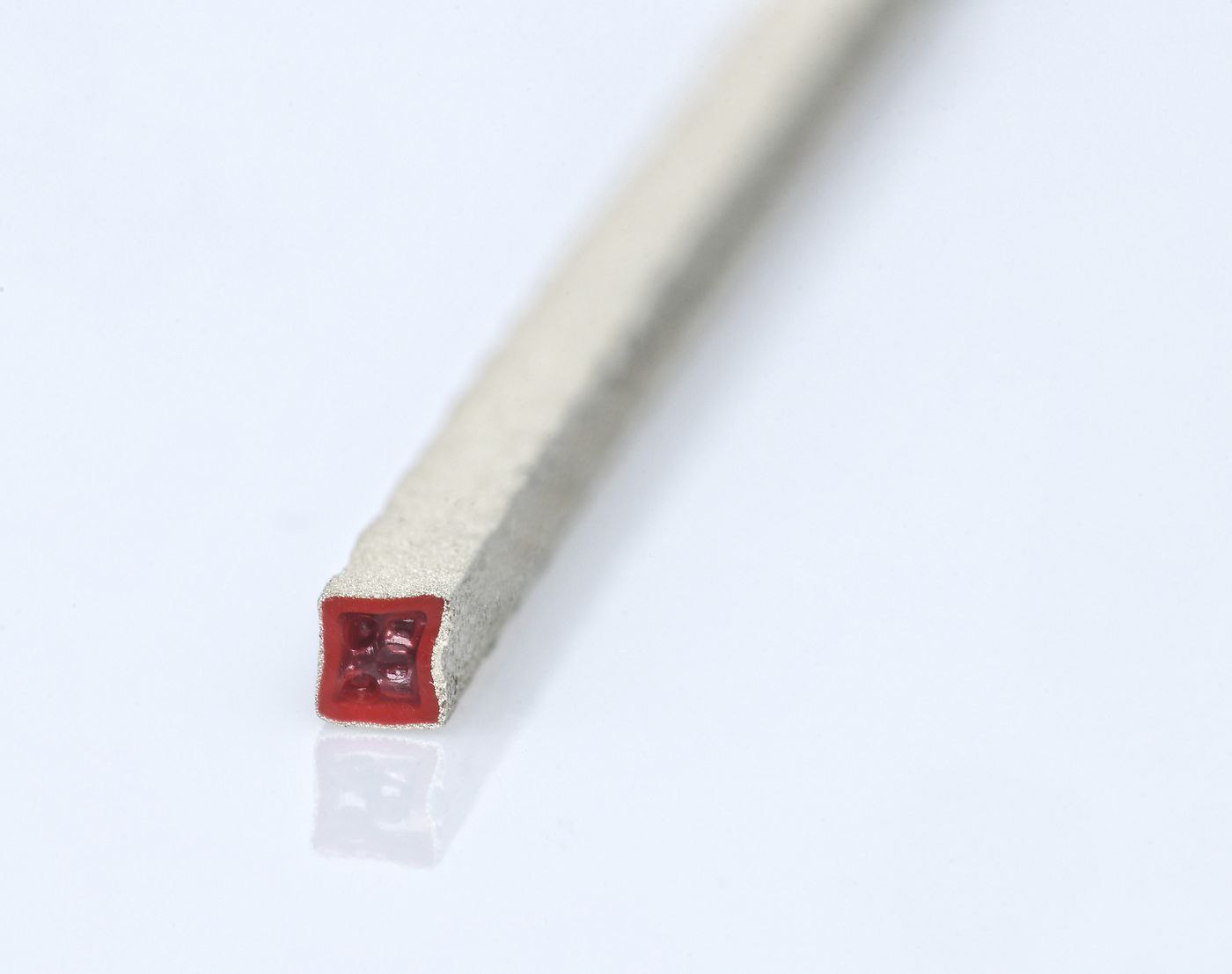

Compashield® Extrusion Ultra-Soft EMI Shielding Gaskets

Compashield® Extrusion Ultra-Soft EMI Shielding gaskets were designed to replace much harder connector gaskets where minimizing compression force and excellent EMI shielding is required.

Quick Reference Chart

Compound Number
Type of Rubber
Conductive Filler
Durometer (Shore A)
UL Rating
Tensile
Volume Resistivity
Shielding Effectiveness
Compression Set (EE version)
Datasheet
Compound Number: 1540
Type of Rubber: Silicone
Conductive Filler: N/A
Durometer (Shore A): 40
UL Rating: V1
Tensile: 8.5
Volume Resistivity: N/A
Shielding Effectiveness: N/A
Compression Set (EE version): 10%
Compound Number: 8605
Type of Rubber: Silicone
Conductive Filler: Silver / Copper
Durometer (Shore A): 78
UL Rating: V1
Tensile: 4.2
Volume Resistivity: 3
Shielding Effectiveness: 130
Compression Set (EE version): 35%
Compound Number: 8642
Type of Rubber: Silicone
Conductive Filler: Nickel / Carbon
Durometer (Shore A): 80
UL Rating: V0
Tensile: 4.1
Volume Resistivity: 17
Shielding Effectiveness: 130
Compression Set (EE version): 35%
Compound Number: 8648
Type of Rubber: Silicone
Conductive Filler: Nickel / Graphite
Durometer (Shore A): 80
UL Rating: V0
Tensile: 4.3
Volume Resistivity: 5.6
Shielding Effectiveness: 140
Compression Set (EE version): 10%
Compound Number: 8651
Type of Rubber: Silicone
Conductive Filler: Silver / Aluminum
Durometer (Shore A): 80
UL Rating: V0
Tensile: 3.5
Volume Resistivity: 3
Shielding Effectiveness: 130
Compression Set (EE version): 10%
