Key Points
- A machined feature that cannot be physically reached by a probe cannot be verified, and an unverified feature is an uncontrolled risk in your assembly.
- Geometric Dimensioning and Tolerancing (GD&T) callouts directly determine how long inspection takes and how much it costs; poor drawing practice turns a simple part into an hours-long measurement exercise.
- Certificates of conformance are only as reliable as the inspection process behind them; understanding what data should back them up protects your incoming inspection from false confidence.
- The machining-to-inspection loop closes at the design stage, not on the CMM table; accessibility must be designed in before the drawing ships.
- Vertically integrated suppliers who machine and inspect under one quality system reduce documentation gaps and give you a single accountable source for conformance data.

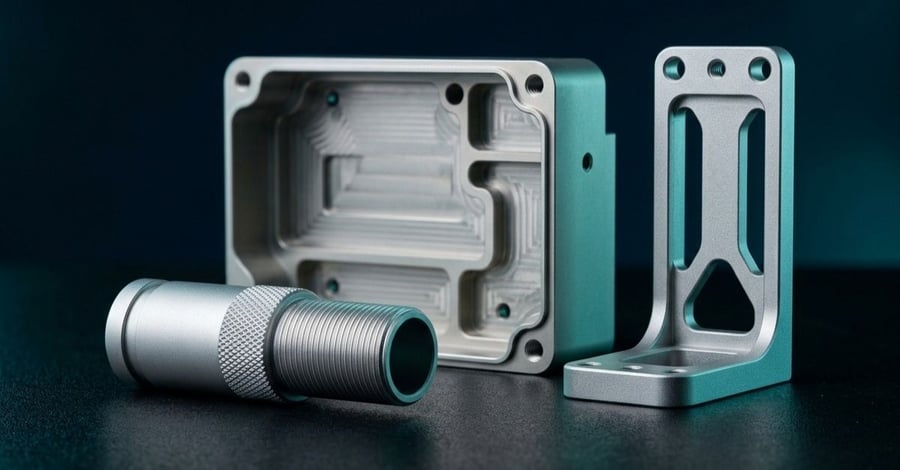

Precision machined components reach your assembly as finished hardware with a certificate attached. The assumption baked into most receiving inspection processes is that the certificate means something. Sometimes it represents a thorough measurement campaign against a well-structured drawing. Sometimes it's a stamp on a form because the process requires one. The difference shows up in your assembly yield, your rework rate, and occasionally in a field failure that traces back to a dimension nobody actually checked.
This article covers the verification side of precision machined components: how conformance is confirmed, what inspection methods apply to which features, how GD&T callouts drive inspection cost, and what your supplier's quality documentation should actually contain.
What CMM Inspection Covers, and What It Doesn't
Coordinate Measuring Machine (CMM) inspection is the gold standard for machined metal parts. A CMM uses a precision tactile probe to measure feature positions, diameters, depths, and geometric relationships against a defined datum structure. The Zeiss CMM systems at Modus Advanced are designed specifically for machined metal components, operating with an extremely high degree of precision across a wide range of measuring environments.
The limitation that rarely appears in supplier capability statements: a CMM can only measure what the probe can reach. Deep internal pockets, blind holes with small diameters, undercuts, and re-entrant features may be geometrically important and physically inaccessible to a standard probe configuration. When a feature cannot be measured, it either goes unverified or requires specialized fixturing, custom probe configurations, or CT scanning, all of which add time and cost.
This is a consequence of design decisions made before the part ever reached the shop floor. Feature accessibility has to be considered at the drawing stage, not discovered at the CMM.
The Inspection Equipment Stack
No single measurement tool covers every feature type on a precision machined component. A well-equipped supplier uses complementary systems matched to the measurement task.
| Measurement System | Best Application | Key Capability |
|---|---|---|
| Zeiss CMM (tactile) | Machined metal parts, hole patterns, datum verification | High precision across complex 3D geometry |
| Micro Vu Vision System | Small features, 2D geometry, mixed-material parts | Fast, camera-based dimensional measurement |
| Virtek Laser QC | 2D part verification, profile conformance | ±0.05 mm (±0.002") for 2D; ±0.25 mm (±0.010") for 3D |
| Keyence Laser Profilometer | Surface finish, step heights, form-in-place gasket dimensions | Non-contact, high-resolution Z-axis profiling |
A machined housing might go through the CMM for bore positions and perpendicularity checks, then move to the vision system for a rapid pass on hole-pattern location, then to the profilometer if surface finish is a functional requirement. The right inspection sequence is part of process planning, not an afterthought.
How GD&T Callouts Drive Inspection Cost
Geometric Dimensioning and Tolerancing (GD&T) is the correct language for defining precision machined component requirements. Used well, it gives the machinist and inspector the same unambiguous picture of what the part must do. Used carelessly, it multiplies inspection time without adding functional clarity.
Profile tolerances are the most demanding case. A profile callout requires verifying the entire bounded surface against a theoretical envelope. A part that could be inspected dimensionally in minutes may require hours of CMM programming and execution when profile callouts are applied to non-functional surfaces. As the DFM reference material notes: "A part with overall dimensional requirements might be inspected in minutes, while the same part with profile callouts could require hours of measurement programming and execution."
Datum structure design has the same compounding effect. A poorly chosen datum scheme can complicate fixturing, introduce measurement uncertainty, and make it harder for the machinist to hold the part in the orientation expected by the CMM. Form controls, including flatness, straightness, and roundness, also add inspection time unless their functional purpose is clearly defined.
Position tolerances for hole patterns generally offer better functional control with less inspection overhead than coordinate dimensions. When the assembly function is clearance or alignment, a true position callout checked against the correct datum gives the inspector a direct, efficient pass/fail result.
Every GD&T callout on a precision machined part should be traceable to a functional requirement. If a callout can't be connected to assembly fit, sealing performance, or electrical contact, it's adding inspection cost without reducing risk.
Essential Background Reading:
- Precision Manufacturing Overview: Processes, tolerances, industries, and how to choose the right manufacturing partner. The foundational reference for this cluster.
- Precision Machining Process Taxonomy: Turning, milling, grinding, and EDM. Tolerance thresholds and process selection logic for the design stage.
- Machining Tolerance Chart: Standard vs. tight tolerances explained, with practical guidance on when tighter specs are actually warranted.
- Tolerance Design and Manufacturing Feasibility: How to engineer precision into practice. Connecting tolerance callouts to what's actually achievable on the shop floor.
Standard Tolerances and the 10:1 Measurement Accuracy Rule
Modus Advanced's standard CNC machining tolerance is ±0.25 mm (±0.010"). That tolerance is achievable, repeatable, and measurable without extraordinary inspection effort. Which is the right baseline for most machined features in aerospace, defense, and medical device assemblies.
Tighter tolerances are achievable through advanced fixturing, specialized tooling, and additional process controls. They carry real costs: longer setup, slower feeds, more frequent tool changes, and substantially more inspection time. A foundational rule in metrology holds that measurement equipment must be approximately ten times more accurate than the specified tolerance to provide reliable verification. As you approach the limits of the equipment's capability, inspection uncertainty becomes a larger fraction of the tolerance band, and a part that appears conforming may not be.
Tighter tolerances should be specified only when the assembly function requires them. A sealing surface, a press-fit bore, or an RF contact interface may justify the investment. A clearance hole or bracket mounting feature probably does not. For a deeper treatment of what drives tolerance requirements in demanding applications, the companion article on high precision machining covers sub-standard tolerance requirements, environmental controls, and when standard CNC capability isn't enough.
Related Content:
- DFM for CNC Machined Metal Parts: Complete engineering guide to designing machined components that are easier to produce, inspect, and verify.
- Tight Tolerance Machined Parts: DFM guidelines specific to tight-tolerance work. Feature design, tolerancing strategy, and inspection implications.
- 5-Axis vs. 3-Axis CNC Design Guidelines: How axis configuration affects feature accessibility, setup complexity, and what the inspector sees afterward.
- Design Features That Reduce Lead Times and Costs: Specific geometry decisions that streamline machining and make downstream inspection faster and more reliable.
- Sharp Corners on CNC Machined Parts: Why certain geometric features are impossible to machine, and how they create inspection problems that compound schedule risk.
AQL Sampling vs. 100% Inspection: Tradeoffs That Affect Schedule
How many parts get measured on a given production run is a decision with real schedule consequences. Acceptance Quality Level (AQL) sampling uses statistical methods to determine how many parts from a lot must be inspected to provide confidence in the whole. It's the standard approach for most production runs.
What 100% Inspection Actually Costs You
Inspection time relative to a standard AQL sampling plan on the same order. The multiplier climbs with quantity, which is exactly backward from how most purchase orders are written.
AQL sampling
Statistical methods set how many parts from a lot must be measured to give confidence in the whole. Parts are sampled at the beginning, middle, and end of each run, which catches process drift before it produces a non-conforming lot.
Use it when the sampling tier can be calibrated to the part's risk level, which covers most precision machined components.
100% inspection
Every part in the lot gets measured individually. It guarantees a measurement exists for each piece, and it multiplies inspection time by more than an order of magnitude at production quantities.
Use it when the application is safety-critical and the consequence of one non-conforming part reaching the field is catastrophic.
Specifying 100% inspection without a functional justification adds cost and lead time without proportional risk reduction. It is not a free upgrade to quality, and on a large order it is one of the largest single line items in your schedule.
"The sampling tier should match the risk profile of the part, not the preference of whoever wrote the purchase order."
The alternative, 100% inspection, guarantees every part has been measured. It also multiplies inspection time dramatically. According to DFM reference data, 100% inspection on a 1,000-part order can increase inspection time by approximately 1,150% compared to standard AQL sampling. At 5,000 parts, that multiplier reaches approximately 1,480%.
The practical implication: 100% inspection is appropriate when the application is safety-critical and the failure mode is catastrophic. It's not the right default for every precision machined component, and specifying it without a functional justification adds cost and lead time without proportional risk reduction. The sampling tier should match the risk profile of the part, not the preference of whoever wrote the purchase order.
First Article Inspection and the Production Quality Loop
The quality process at Modus Advanced runs in five stages, and understanding the inspection structure tells you what documentation you'll receive and what assurance it actually provides.
First Article Inspection (FAI) is where the full conformance baseline gets established. Every dimension is measured, every GD&T callout is verified, and the result becomes the documented proof that the manufacturing process can produce a conforming part. That record calibrates the production sampling plan that follows.
The Critical Design Review (CDR), which precedes full production, is where the supplier confirms they have a sound approach to both producing and measuring the part. This is the right time to ask which features will be measured on every production run, which will be sampled, and what happens when a measurement falls outside the control limit.
During production, AQL sampling plans govern how many parts get measured and at what points in the run. Parts are sampled at the beginning, middle, and end of each production run to catch process drift before it produces a non-conforming lot.
Next Steps:
- Evaluating a Precision Machine Shop: The pre-engagement audit checklist. Equipment, certifications, inspection capabilities, and culture fit. Before the RFQ goes out.
- Contract Manufacturing Services Beyond Price: Quality systems, engineering support, and risk management criteria that matter more than unit cost when evaluating suppliers.
- 7 Markers of a Great Precision Machining Company: Observable, verifiable indicators that separate genuine quality culture from marketing language.
- Scaling from Prototype to Production: How inspection scaling, fixturing consistency, and process validation protect repeatability as volumes increase.
- Precision CNC Machining Services Full-Service Stack: DFM consultation, finishing, assembly, inspection, and program management. What separates a manufacturing partner from a job shop.
What a Certificate of Conformance Should Contain
A certificate of conformance (CoC) is the document your receiving inspection team uses to accept an incoming shipment without re-measuring every part. A CoC that simply states "this part meets all requirements" is not inspection documentation. It's a statement of intent. A CoC that carries real weight should include:
- Purchase order and revision reference: the specific drawing revision used for inspection, not just the part number.
- Measurement data or reference: actual measured values for critical dimensions, or a reference to the inspection record where that data lives.
- First article status: confirmation that FAI was completed and accepted for this part number and revision.
- Process certifications: material certifications (material mill certs), plating records, or outside process certifications required by drawing notes.
- Inspector signature and date: traceability to the individual and the inspection event.
A complete CoC package typically includes the CoC itself, material mill certifications, and any outside process certifications called out on the drawing. If a supplier's CoC package is missing any of these elements, that absence signals something about the quality culture producing it, not just the documentation.
For defense programs handling Controlled Unclassified Information (CUI), documentation traceability is also a security requirement. Modus Advanced's CMMC (Cybersecurity Maturity Model Certification) Level 2 certification. validated through third-party C3PAO assessment with all 110 NIST SP 800-171 controls implemented. Means the technical data in your inspection records receives the same protection as your design drawings, from quote through delivery.
See It In Action:
- SigShield Machined RF Shield: How Modus designed and manufactured a machined RF shield housing. Machining, inspection, and FIP gasket integration under one roof.
- Aerospace Parts Manufacturing: Precision component manufacturing for critical aerospace applications. How quality systems protect mission outcomes.
- Tight Tolerance CNC Machining for Medical Devices: How precision machining and inspection requirements are handled for life-critical medical device components.
- Why Aerospace and Defense Companies Partner with Modus: The manufacturing and quality capability case for Modus Advanced as a precision machining partner on mission-critical programs.
The Inspection Accessibility Problem
If the Probe Can't Reach It, It Isn't Verified
A CMM measures what the stylus can physically touch. Four features on the same housing, four different verification outcomes, all determined at the drawing stage.
Swipe the diagram to see all four features.
Specialized probe extension
Gets the tip there, and introduces deflection and measurement uncertainty in exchange. Check the extension against its rated accuracy.
CT scanning
Sees geometry no tactile probe can reach. Adds lead time and cost to every lot it touches.
Document as unverifiable
The honest answer, and the one your quality team needs before parts go into assembly. The conformance assertion for that feature is unsupported.
Not on the CMM table. Consider the approach angle of a stylus when you specify pocket depth, and check whether a tight internal bore can be reached without an extension that exceeds its rated accuracy. Accessibility is a drawing-stage decision, and it is the only stage where fixing it is free.
"An unverified feature is not a controlled dimension, regardless of what the CoC says."
A feature that cannot be reached by the measurement probe cannot be verified to print. An unverified feature is not a controlled dimension, regardless of what the CoC says.
Deep pockets, blind bores, internal channels, and undercuts that are geometrically necessary for function may be physically inaccessible to standard CMM probe configurations. When a supplier encounters an inaccessible feature, they have a few options: use a specialized probe extension (which introduces deflection and measurement uncertainty), use CT scanning (which adds lead time and cost), or document the feature as unable to verify by standard methods.
That third outcome matters during incoming inspection. If a critical dimension, such as a sealing bore depth, ground contact surface, or mounting-face perpendicularity, is listed as unverifiable, the conformance assertion for that feature is unsupported. Your quality team needs to know that before parts go into assembly.
The fix requires discipline at the drawing stage: design features with probe access in mind. Consider the approach angle of a CMM stylus when specifying pocket depths. Check whether a tight internal bore can be reached without a probe extension that exceeds its rated accuracy. This is Design for Manufacturability (DFM) in practice, covered in depth in the companion piece on precision machined parts design considerations.
Partnering with a Supplier Whose Inspection Loop Is Closed
The machining-to-inspection relationship only works when both operate under the same quality system. When machining and inspection happen at different facilities, a dimensional problem at inspection triggers a conversation between organizations rather than an immediate corrective action within one.
Vertically integrated suppliers close that loop. The inspection team has direct access to the machinist's setup sheets, tooling records, and process parameters. When a CMM result trends toward a limit, the shop adjusts before producing a non-conforming lot.
Modus Advanced holds AS9100 and ISO 9001 certifications alongside ITAR (International Traffic in Arms Regulations) registration and CMMC Level 2 certification, all operating within the same quality management structure governing machining and inspection. When you receive a CoC from a vertically integrated, AS9100-certified supplier, it's backed by a quality system that was independently audited. For a detailed breakdown of what to look for when vetting a supplier's inspection capability before you send a drawing, the article on how to evaluate a precision machine shop covers that ground directly.
The question isn't just whether they made it right. The question is whether they can prove it with data that traces back to an audited process. A pilot's radar housing, a patient's implant, a service member's navigation system: the parts inside those assemblies started with a drawing, went through a machine, and landed at a CMM. The chain from design to inspection to your assembly line is only as strong as the measurement program holding it together. Let's solve this.
Frequently Asked Questions
What is a precision machined component?
A precision machined component is a part produced by computer-controlled subtractive manufacturing processes. Milling, turning, boring, or multi-axis CNC operations, to tight dimensional tolerances and controlled surface finishes. These components are used in applications where dimensional accuracy directly affects assembly fit, sealing performance, electrical contact, or structural integrity. In aerospace, defense, and medical device manufacturing, precision machined components are often held to tolerances of ±0.25 mm (±0.010") or tighter, with full dimensional verification required before shipment.
What does CMM inspection verify on precision machined parts?
CMM (Coordinate Measuring Machine) inspection verifies the actual dimensions of machined features, including hole positions, bore diameters, pocket depths, surface flatness, and geometric relationships, against the tolerances and datum structure defined on the engineering drawing. A CMM uses a tactile probe to collect discrete measurement points, which are compared to the nominal geometry using inspection software. CMM inspection can verify GD&T (Geometric Dimensioning and Tolerancing) callouts including position, perpendicularity, parallelism, and concentricity, provided the features are physically accessible to the probe.
What is included in a certificate of conformance for machined parts?
A complete certificate of conformance (CoC) package for precision machined components should include the CoC document itself (referencing the specific drawing revision and purchase order), actual measurement data or a reference to the inspection records where that data is stored, confirmation that First Article Inspection was completed and accepted, material mill certifications traceable to the raw stock used, and any outside process certifications (plating, anodizing, heat treat) called out on the drawing. A CoC that simply states conformance without supporting data or documentation references provides limited assurance to receiving inspection.
How does part geometry affect CMM measurement accessibility?
CMM measurement requires physical probe access to every feature being measured. Features located in deep pockets, tight internal bores, undercuts, or re-entrant geometries may be inaccessible to standard probe configurations. When a feature cannot be reached, it either goes unverified, requires specialized probe extensions that introduce measurement uncertainty, or requires alternative methods such as CT scanning. Features that cannot be measured cannot be confirmed to print. Designing for probe accessibility, including stylus approach angles, pocket depth-to-width ratios, and bore diameter relative to probe size, is a DFM consideration that should be addressed before the drawing is released, not discovered during CMM inspection.
What is the difference between AQL inspection and 100% inspection for machined components?
AQL (Acceptance Quality Level) sampling uses statistical methods to determine how many parts from a production lot must be inspected to provide confidence in the quality of the full lot. It's the standard approach for most production runs because it balances quality assurance against inspection time and cost. 100% inspection requires every part in the lot to be measured individually, which can increase inspection time by over 1,000% for medium-to-large production quantities. 100% inspection is appropriate when the application is safety-critical and the consequence of a non-conforming part reaching the field is catastrophic. For most precision machined components, a properly structured AQL sampling plan calibrated to the part's risk level provides adequate quality assurance without the schedule impact of 100% inspection.
What certifications should a precision machined parts supplier hold?
For aerospace and defense applications, suppliers should hold AS9100 certification (the quality management standard for aviation, space, and defense) and ISO 9001 as a baseline. Defense programs involving controlled technical data require ITAR (International Traffic in Arms Regulations) registration, and programs involving Controlled Unclassified Information (CUI) require CMMC (Cybersecurity Maturity Model Certification) compliance. For programs subject to CMMC, suppliers should hold at minimum CMMC Level 2 certification validated by an authorized C3PAO (Certified Third-Party Assessment Organization). For a full breakdown of aerospace-specific compliance requirements, see the article on AS9100, ITAR, FAIR, and DFARS requirements. Certifications should be current, third-party validated where required, and applicable to the specific scope of work being performed.
