Key Points
- Tolerances drive cost more than almost any other design decision: every step tighter than standard roughly doubles your machining expense and extends lead time
- Internal corner radii, feature accessibility, and axis alignment determine whether your part runs on standard three-axis equipment or requires expensive five-axis setups
- Surface finish callouts on gasket-land surfaces can actively degrade adhesion performance, making smoother a liability rather than an asset
- Plating adds material, and that material lands on your critical dimensions: whether a drawing dimension is pre-plate or post-plate determines whether the part fits or doesn't
- Getting DFM right before the drawing ships is the cheapest engineering time you'll spend on the program
The Drawing Ships Tomorrow. Here's What to Fix First.
Precision machined parts live or die by what's on the drawing. The decisions you lock in before the first tool path is generated determine cost, lead time, and whether a part passes inspection the first time or cycles back for rework.
This guide covers the design for manufacturability (DFM) principles that matter most for precision machined parts, with particular focus on tolerancing, surface finish specification, and downstream finishing operations like plating. If you want the broader landscape of what CNC machining can and cannot do, the sibling article on CNC precision machining capabilities and limitations covers that territory. What follows here is drawing-practice guidance for parts that will be machined, finished, and inspected to real tolerances.
Tolerancing: The Specification That Controls Your Budget
Tolerance is the single variable that affects machining cost more than any other. The cost curve for tighter tolerances isn't linear. It's exponential, and most engineers don't feel it until the quote comes back.
| Tolerance Range | Manufacturing Impact | Lead Time Effect | Cost Impact |
|---|---|---|---|
| ±0.13 mm (±0.005") | Standard operations | Baseline | Standard rates |
| ±0.05 mm (±0.002") | Increased precision requirements | +25-50% | +50-100% |
| ±0.013 mm (±0.0005") | Specialized equipment/environment | +100-200% | +200-400% |
| ±0.005 mm (±0.0002") | Temperature control, stress relief | +300%+ | +500%+ |
Standard CNC machining holds ±0.13 mm (±0.005") without difficulty. Moving to ±0.05 mm (±0.002") means different fixturing, slower feeds, and more inspection time. Getting to ±0.013 mm (±0.0005") often requires environmental conditioning, machine warm-up sequences, and stress relief between operations. These aren't warnings: they're multipliers that hit your budget and schedule simultaneously.
Specify the loosest tolerance that satisfies your functional requirement. Audit every tight callout and ask what breaks if it opens up. Tighter tolerances should only appear where function or safety genuinely demands them. For a deeper look at what drives cost at the boundary between standard and high precision machining, that threshold deserves its own analysis.
GD&T Callouts and Inspection Cost
Geometric Dimensioning and Tolerancing (GD&T) gives you powerful tools for controlling part function. Used correctly, it gives your machinist more latitude while ensuring the part assembles as designed. Used carelessly, it multiplies inspection time without improving outcomes.
Profile tolerances require comprehensive surface verification. A part with dimensional tolerances might take minutes to inspect; the same part with profile callouts across complex surfaces can require hours of coordinate measuring machine (CMM) programming and execution. If you're calling out profile on a non-functional surface because the model happened to be swept, reconsider whether that control is doing real work.
Position tolerances on hole patterns are generally preferable to coordinate dimensions. They offer more manufacturing flexibility and map more directly to actual assembly function. A poorly chosen datum complicates both fixturing and inspection, and that cost shows up in every unit you produce. For a full treatment of how inspection and metrology protect your assembly, including CMM setup and GD&T verification, see the dedicated article in this cluster.
Essential Background Reading:
- Precision Manufacturing. Processes, Tolerances, Industries, and Partner Selection: The landscape overview linking every major process category, quality standard, and partner-evaluation framework. Start here if you're new to precision manufacturing.
- Precision Machining. Processes, Tolerance Thresholds, and Process Selection Logic: Covers the core process taxonomy, turning, milling, grinding, EDM, and the tolerance thresholds that define precision, giving engineers a reference for the design stage.
- Engineering Tolerance Design Considerations for Manufacturing Success: Foundational guidance on matching tolerance callouts to functional requirements without over-specifying.
- Machining Tolerance Chart, Standard vs. Tight Tolerances: A practical reference chart mapping tolerance ranges to process capabilities and cost implications.
Feature Geometry: What Your Tools Can and Cannot Do
Every feature on a machined part is made by a rotating or reciprocating cutter. That physical reality shapes what's achievable, what's expensive, and what's impossible.
Internal Corners
End mills are round. They cannot cut a true 90-degree internal corner. If you call for a sharp corner, the shop will approximate it with a radius determined by whatever tool they were running, not one you controlled. For a direct look at how sharp corners on CNC machined parts create timeline risk, that failure mode is worth reviewing before your drawing ships.
Specify corner radii explicitly. For internal corners, 0.76 mm (0.030") is where standard tooling operates comfortably without reducing feeds or swapping to a smaller, more fragile cutter. Larger radii mean larger tools, better rigidity, better surface finish, and shorter run times.
| Feature Type | Minimum Radius | Recommended Radius | Manufacturing Benefit |
|---|---|---|---|
| Internal corners | 0.13 mm (0.005") | 0.76 mm (0.030") | Standard tooling compatibility |
| Deep pockets | 0.25 mm (0.010") | 1.52 mm (0.060") | Reduced tool deflection |
| Thin wall features | 0.51 mm (0.020") | 2.03 mm (0.080") | Improved rigidity during cutting |
Where two surfaces meet at an acute angle, the resulting knife edge is fragile during handling and unpredictable during machining. Adding a small outside fillet in the range of 0.13-0.38 mm (0.005-0.015") gives you a controlled, consistent edge that machines cleanly and survives part handling without chipping.
Axis Alignment and Setup Count
Every setup is a cost event. Parts that require repositioning between operations add fixturing time, introduce potential for datum shift, and complicate your inspection plan. The more a part can be completed in a single setup on three-axis equipment, the lower the cost and the tighter the geometric relationships between features.
Five-axis machining solves real problems: compound angles, undercuts, and deep cavities accessible only from non-standard orientations. But five-axis programs take longer to write, require more experienced operators, and run on equipment that's in shorter supply. Verify that complex geometry is functionally required rather than an artifact of how the CAD model was built.
Align features with the X, Y, and Z axes where possible. Group angled features so they can share a setup. Consider whether undercuts can be redesigned as through-features. These changes don't compromise function; they just require being made early. For a detailed breakdown of when five-axis capability is worth the cost, see the article on 5-axis vs. 3-axis CNC precision machining.
Related Content:
- CNC Machining Design Guidelines, 5-Axis vs. 3-Axis: Detailed guidance on when compound geometry justifies five-axis operations and how to design parts that run efficiently on three-axis equipment.
- Sharp Corners on CNC Machined Parts. The Impossible Feature Killing Your Timeline: Why zero-radius internal corners can't be cut and what happens to your drawing when the shop approximates them anyway.
- Design Features That Reduce Lead Times and Costs for Machined Parts: Specific geometry and tolerance decisions that shorten machining cycles and reduce setup count.
- CNC Machined Parts With FIP Gaskets. Why Vertical Integration Is Best: How combining machining and form-in-place dispensing under one roof prevents the surface finish and adhesion problems described in this article.
- Form-in-Place EMI Gasket Design. Essential Considerations for Critical Electronics: Design guidance for FIP gasket applications, including housing geometry and surface preparation requirements.
Surface Finish: The Spec That Interacts With Everything Downstream
Surface finish callouts have consequences that extend well beyond how the machined surface looks. Ra (arithmetic mean roughness) is the most common parameter, measured per ASME B46.1 with symbols following ASME Y14.36M convention.
Here is the failure mode that ships drawings regularly and costs real money to fix: on US drawings using customary units, a bare number inside the finish symbol defaults to microinches under ASME Y14.36M. Ra 32 µin is a normal machined surface. Ra 32 µm is closer to a casting. The units differ by a factor of 25.4. Label every callout explicitly, µin or µm, and verify the unit convention matches your drawing standard before the file leaves your hands.
Where Each Function Actually Lives
Ra ranges for common machined features, and the callout error that puts two very different surfaces behind the same number.
A bare number in the finish symbol defaults to microinches on US drawings. Label the unit every time.
"On gasket lands, smoother may actively be worse."
When Smoother Is the Wrong Answer

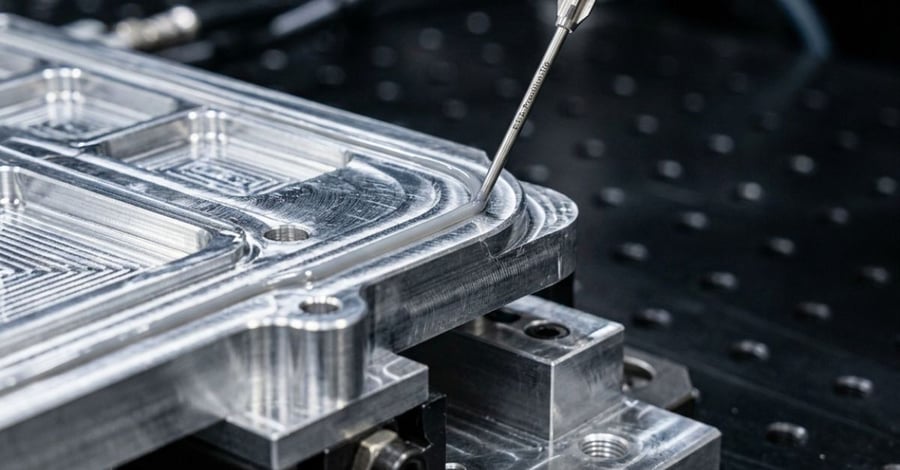

On surfaces where a form-in-place (FIP) gasket will be dispensed, an extremely smooth finish can actively impair adhesion. Modus Advanced's DFM guidance for FIP applications states this directly: a gasket-land surface polished to a mirror finish gives the cured elastomer less mechanical engagement, which can require surface texture modification or primer to compensate.
Gasket lands don't belong in the same finish tier as optical surfaces or precision bearing bores. Over-specifying finish on a dispensing surface costs more to machine and produces a part that adheres less reliably. The guidance is counterintuitive but real: on gasket lands, smoother may actively be worse.
Plating and Coating: Dimensions Are Not What You Inspected
Parts that go through plating or conversion coating after machining are not dimensionally identical to what was measured at machining inspection. Plating adds material, and that material lands on your critical features: inside your threaded holes, across your mating faces, and against your tolerance stack.
Conversion coating such as Alodine adds less than 1 µm and rarely threatens fit. Electroless nickel is different. A standard deposit runs 25 µm (0.001") or more, applied uniformly to all exposed surfaces. On a feature machined to nominal, that deposit lands on both sides of a slot or bore, consuming your tolerance allowance from both directions simultaneously.
This is a live issue on any housing that sees both electroless nickel and conversion coating, a common combination in RF enclosures where threaded holes are typically conversion coated and the rest of the part is plated. The PMPA Designer's Guide is one of the few authoritative published references on before-vs-after-plate dimensioning, and it's worth reviewing before the drawing is finalized.
Key Drawing Decisions for Plated Parts
Before the drawing ships, resolve these four questions:
- Pre-plate or post-plate dimensions: State explicitly on the drawing whether dimensions apply before or after finishing. Ambiguity here creates inspection disagreements that are expensive to resolve after parts are made.
- Masked regions: Features held to tight post-plate dimensions either need masking during plating, which adds cost, or need to be machined undersize to account for deposit thickness.
- Threaded hole relief: Threaded holes that receive plating without masking may lose thread engagement if the deposit is heavy enough. Confirm with your finisher what thread class survives their process.
- Lead time: Conversion coating typically adds 1-2 weeks to lead time; a combined coating plus plating operation can add 2-3 weeks. Build that into your program schedule before commitments are made.
Next Steps:
- Tight Tolerance Machined Parts. DFM Guidelines: Goes deeper on drawing-level decisions for parts requiring tolerances tighter than ±0.005", fixturing, inspection, and process sequencing.
- Precision Parts Manufacturing. Scaling from Prototype to Production Without Losing Repeatability: What happens to your DFM decisions when volume increases. Fixturing consistency, inspection scaling, and workholding strategy.
- DFM, How Quality Requirements Determine Lead Times and Costs: How inspection callouts, AQL sampling, and documentation requirements affect schedule and budget.
- How to Evaluate a Precision Machine Shop Before You Send a Single Drawing: The pre-engagement audit checklist. Equipment, certifications, inspection capabilities, and culture fit. Before the RFQ is sent.
- Precision CNC Machining Services. The Full-Service Stack That Separates a Partner from a Job Shop: DFM consultation, finishing, assembly, inspection, and program management. What to expect from a vertically integrated partner.
Material Selection: What You Pick Determines What's Achievable
Material choice sets the ceiling on tolerances, surface finish, and tool life before the first operation begins.
Aluminum alloys in the 6000 and 7000 series machine quickly, hold good tolerances, and respond well to anodizing and conversion coating. 6061-T6 is the workhorse for RF housings and structural enclosures; 7075-T651 offers higher strength where cross-sections are thin. Stainless steels machine more slowly, generate more heat, and work-harden if parameters aren't controlled. If you're specifying stainless for corrosion resistance, verify whether a conversion-coated aluminum achieves the same requirement at lower cost and shorter lead time.
For any material outside of common wrought aluminum and steel, ask your machining partner early. Exotic alloys and engineering plastics can have long material lead times, unpredictable distortion after machining, and surface finish behavior that differs significantly from common metals. The article on how material choice drives tolerances, tool life, and lead time goes deeper on this trade-off by alloy and temper.
See It In Action:
- Aerospace Parts Manufacturing. Precision Components for Critical Applications: How DFM principles apply to aerospace component programs where tolerancing, finish, and traceability requirements converge.
- Why Aerospace and Defense Companies Partner With Modus Advanced: The engineering-first approach and vertical integration model that makes DFM consultation part of every program engagement.
- Complex Tight-Tolerance Precision CNC Machining for Medical Device Excellence: Real-world application of tight tolerance CNC machining in medical device programs where dimensional accuracy is safety-critical.
- DFM in Medical Device Development. Engineering Excellence Where Lives Depend on Precision: How DFM principles translate to medical device programs, including tolerance management and downstream process interaction.
Frequently Asked Questions About DFM for Precision Machined Parts
These questions address the drawing-practice issues that most often surface during engineering reviews and DFM consultations.
What is a precision machined part?
A precision machined part is a component produced by CNC (computer numerical control) or conventional machining operations to tight dimensional tolerances, typically ±0.13 mm (±0.005") or better. Precision machined parts are used in aerospace, defense, and medical device applications where dimensional accuracy directly affects system performance or patient and operator safety.
What tolerances can CNC machining achieve?
Standard CNC machining reliably holds ±0.13 mm (±0.005"). Tighter tolerances are achievable: ±0.05 mm (±0.002") adds 50-100% to machining cost, ±0.013 mm (±0.0005") requires specialized equipment and environmental controls and typically adds 200-400% to cost, and ±0.005 mm (±0.0002") demands temperature-controlled environments and stress relief operations with cost impacts exceeding 500%. Specify only as tight as your functional requirement genuinely demands. The article on tolerance design and manufacturing feasibility walks through the full decision framework.
How do I specify surface finish on a precision machined part drawing?
Surface finish is specified using the Ra (arithmetic mean roughness) parameter, measured per ASME B46.1, with symbols per ASME Y14.36M. On US drawings using customary units, a bare number in the finish symbol defaults to microinches. Always label the unit explicitly, µin or µm, because Ra 32 µin and Ra 32 µm differ by a factor of 25.4. Ra 32 µin is a typical machined surface; Ra 32 µm is closer to a rough casting.
How does plating affect the dimensions of a precision machined part?
Plating deposits material uniformly on all exposed surfaces after machining. Electroless nickel typically adds 25 µm (0.001") per surface, which means a slot or bore machined to nominal loses tolerance allowance from both sides after plating. Drawings should explicitly state whether dimensions apply before or after finishing. Threaded holes plated without masking may lose thread class if the deposit is sufficient to reduce the effective minor diameter.
What is design for manufacturability (DFM) in CNC machining?
Design for manufacturability (DFM) is the practice of reviewing part geometry, tolerances, surface finish callouts, and material selection before a drawing is released for production, specifically to eliminate features that are impossible to machine, unnecessarily expensive, or likely to cause inspection failures. For precision machined parts, DFM focuses on corner radii, axis alignment, tolerance tier selection, finish specification, and the interaction between machined dimensions and downstream processes like plating or gasket dispensing.
Why can over-specifying surface finish hurt a machined part?
On surfaces where a form-in-place gasket will be applied, an extremely smooth finish reduces the mechanical engagement available to the cured elastomer. This can require surface texture modification or primer, adding cost and process steps. The result: a machined surface that is too smooth on a gasket land costs more to produce and seals less reliably than one finished to a coarser, functional specification.
How much does conversion coating or plating add to lead time?
Conversion coating (such as Alodine) typically adds 1-2 weeks to machining lead time. A combined conversion coating plus electroless nickel or other plating operation can add 2-3 weeks. These are plannable numbers that should be reflected in program schedules before commitments are made to downstream assembly or integration teams.
