What is a Custom RF Shield?
A custom RF shield is a precisely engineered electromagnetic interference (EMI) barrier designed to protect sensitive electronic components from radio frequency interference. These shields typically achieve 60-100+ dB attenuation levels through specialized metallic enclosures and conductive gasket systems tailored to specific application requirements.
Understanding Custom RF Shield Manufacturing Requirements
Electromagnetic interference continues to challenge engineers across industries, making effective RF shielding critical for device performance and regulatory compliance. Custom RF shields provide tailored solutions that standard off-the-shelf components cannot match, but selecting the right manufacturing approach determines project success.
Essential Manufacturing Requirements
- Precision CNC machining capabilities: Tolerances within ±0.13 mm (±0.005")
- Form-in-place gasket dispensing technology: Conductive sealing applications
- Comprehensive surface treatment options: Anodizing and plating capabilities
- Quality management systems: AS9100 and ISO 9001 standards compliance
- In-house electromagnetic testing: Validation capabilities for performance verification
The manufacturing of custom RF shields involves multiple specialized processes that must work seamlessly together. Your choice of manufacturing partner fundamentally impacts not just the final product quality, but also project timelines, costs, and your overall engineering experience.
Evaluating Manufacturing Capabilities for Your Custom RF Shield
Modern custom RF shield production demands a sophisticated manufacturing ecosystem. The most effective partners combine multiple complementary technologies under one roof, eliminating the coordination challenges and delays inherent in multi-vendor approaches.
Core Manufacturing Technologies
- CNC machining: Precision metal housings and complex geometries
- Form-in-place gasket dispensing: Conductive elastomer application
- Waterjet cutting: Thick materials and intricate shapes
- Die cutting: High-volume production of simpler shield designs
- Surface finishing: Chromate conversion and anodizing processes

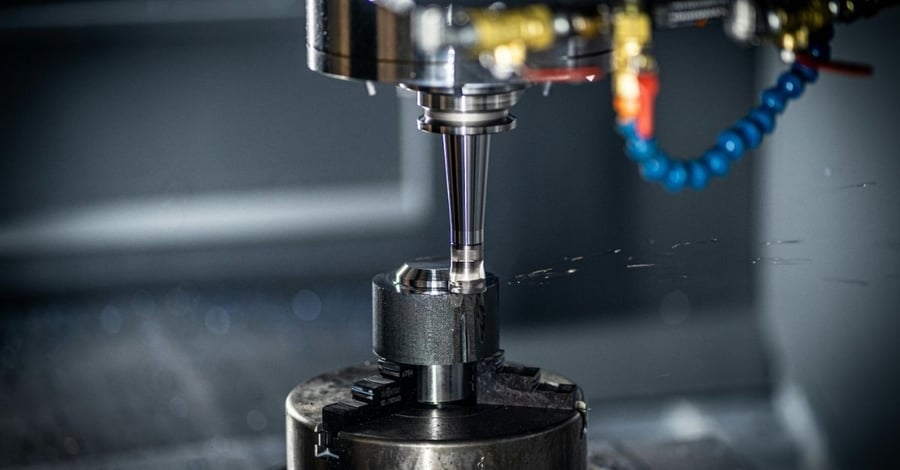

CNC machining forms the backbone of most custom RF shield projects, providing the precision-machined metal housings that define shielding effectiveness. Computer numerical control systems deliver the tight tolerances essential for proper electromagnetic containment, typically achieving dimensional accuracy within ±0.13 mm (±0.005") for critical features.
Form-in-place (FIP) gasket dispensing represents the second critical capability for custom RF shield manufacturing. This process applies conductive elastomer gaskets precisely where designs specify them, creating the continuous electrical contact paths necessary for effective shielding. The combination of CNC machining and FIP dispensing addresses approximately 85% of custom RF shield requirements efficiently and cost-effectively.
Manufacturing Process | Typical Applications | Key Advantages |
CNC Machining | Precision housings, complex geometries | Tight tolerances ±0.13 mm (±0.005"), excellent surface finish |
FIP Gasket Dispensing | Conductive seals, custom gasket profiles | Eliminates assembly steps, consistent bead placement |
Waterjet Cutting | Thick materials, intricate shapes | No heat-affected zone, cuts up to 200 mm (8") thick |
Die Cutting | High-volume thin shields | Cost-effective for quantities over 1,000 pieces |
Design Collaboration and Engineering Support
The complexity of custom RF shield design demands close collaboration between your engineering team and your manufacturing partner's technical staff. Manufacturing partners with engineering-heavy organizations — those with more than 10% of staff being engineers — provide superior design guidance that prevents costly manufacturing issues before they occur.
Critical Engineering Support Services
- Design for manufacturability reviews: 24-hour turnaround time
- Electromagnetic simulation: Performance prediction capabilities
- Material selection guidance: Optimal shielding effectiveness recommendations
- Tolerance analysis: Manufacturing feasibility assessment
- Cost optimization recommendations: Throughout the design process
Design for manufacturability (DfM) reviews represent a critical value-add service that distinguishes exceptional manufacturing partners. These reviews analyze your design against manufacturing constraints, identifying opportunities to improve producibility while maintaining performance requirements.
Manufacturing engineers specializing in RF shields bring domain-specific expertise that general manufacturing knowledge cannot replicate. These specialists understand the relationship between manufacturing tolerances and shielding effectiveness, enabling them to recommend design modifications that improve both manufacturability and electromagnetic performance.
Visit our RF Shielding Resource Center.
Vertical Integration: The Key to Accelerated Timelines
Traditional custom RF shield manufacturing involves multiple vendors handling different process steps, creating coordination complexity and extended lead times. Parts typically move between machining shops, plating facilities, gasket suppliers, and assembly operations, with each transfer adding time and risk to your project.
Vertical Integration Benefits
- Consolidated manufacturing workflow: Eliminating vendor coordination
- Single-point accountability: Quality control and delivery responsibility
- Reduced lead times: From 4-6 weeks to 1-3 weeks typical
- Lower total project costs: Eliminated markup layers
- Enhanced intellectual property protection: Reduced exposure through fewer vendors
Vertically integrated manufacturing eliminates these inefficiencies by consolidating all process steps under one roof. This approach combines CNC machining, surface finishing, gasket dispensing, and final assembly in a coordinated workflow.
The timeline advantages of vertical integration are substantial. Traditional multi-vendor approaches typically require 4-6 weeks for custom RF shield completion, while vertically integrated processes deliver finished shields in 1-3 weeks.
Approach | Typical Lead Time | Coordination Complexity | Quality Control |
Multi-Vendor | 4-6 weeks | High - multiple vendor relationships | Distributed responsibility |
Vertical Integration | 1-3 weeks | Low - single partner coordination | Single-point accountability |
Material Selection and Performance Optimization
Custom RF shield effectiveness depends heavily on proper material selection for both the housing and gasket components. Housing materials typically include aluminum alloys for weight-sensitive applications, steel alloys for maximum shielding effectiveness, and specialized alloys for extreme environment requirements.
Material Selection Criteria
- Shielding effectiveness requirements: 60-100+ dB attenuation levels
- Environmental conditions: Temperature and humidity considerations
- Weight constraints: Aerospace and portable applications
- Corrosion resistance needs: Outdoor or marine environments
- Cost considerations: Balancing performance with budget requirements
Aluminum housings provide excellent shielding effectiveness at 60-90 dB attenuation while maintaining light weight for aerospace and portable applications. Surface treatments like chromate conversion coating or anodizing enhance corrosion resistance and electrical conductivity.
Gasket Material Options
- Conductive silicone: Environmental sealing and good conductivity
- Fabric-over-foam gaskets: Maximum shielding effectiveness applications
- Beryllium copper finger stock: Highest conductivity requirements
- Conductive rubber compounds: Cost-sensitive projects
- Metal mesh gaskets: Extreme temperature environments
Quality Systems and Certification Requirements
Custom RF shield applications in aerospace, defense, and medical device industries demand rigorous quality management systems. Manufacturing partners with AS9100 and ISO 9001 certifications demonstrate the systematic quality approaches these industries require.
Essential Certifications and Capabilities
- AS9100 certification: Aerospace industry requirements
- ISO 9001 quality management: System implementation
- ITAR registration: Defense-related projects
- CMMC Level 2 certification: Cybersecurity compliance
- Calibrated measurement equipment: NIST traceability
AS9100 certification specifically addresses aerospace industry requirements, including configuration management, risk assessment, and continuous improvement processes. This certification indicates manufacturing partners understand the documentation, traceability, and reliability requirements typical of custom RF shield applications in critical systems.
Cost Optimization Strategies
Custom RF shield costs encompass material expenses, manufacturing process costs, and program management overhead. Understanding these cost drivers enables better decision-making during partner selection and design optimization phases.
Primary Cost Factors
- Material selection: 20-30% of total project costs
- Manufacturing process complexity: Setup requirements
- Quality system compliance: Documentation overhead
- Testing and validation requirements: Performance verification
- Batch size optimization: Setup cost amortization
Material costs typically represent 20-30% of total custom RF shield expenses, making material selection decisions significant cost drivers. Standard aluminum alloys like 6061-T6 provide excellent cost-performance balance for most applications, while exotic materials like beryllium copper substantially increase material costs but may be necessary for maximum performance requirements.
Cost Reduction Strategies
- Optimize batch sizes: 10-100 pieces for prototype efficiency
- Standardize materials: Proven alloys like 6061-T6 aluminum
- Minimize secondary operations: Integrated manufacturing approach
- Leverage design feedback: Early development phase optimization
- Consider alternative processes: Specific geometry requirements
Read the Design for Manufacturability Guide.
Managing Technical Risk in Custom RF Shield Projects
Custom RF shield development carries inherent technical risks that proper manufacturing partner selection can mitigate. Shielding effectiveness verification requires specialized test equipment and expertise that not all manufacturers possess.
Risk Mitigation Capabilities
- Pre-production electromagnetic testing: Performance validation
- TEM cell and reverberation chamber: Testing facilities
- Near-field scanning: Comprehensive performance analysis
- Design validation: Electromagnetic simulation software
- Prototype testing: Before full production commitment
Pre-production testing capabilities enable manufacturing partners to validate shielding performance before full production commitment. Electromagnetic simulation capabilities, combined with practical manufacturing experience, enable manufacturing partners to predict shielding effectiveness and recommend design improvements during the quotation phase.
Timeline Planning and Project Management
Successful custom RF shield projects require realistic timeline planning that accounts for design iteration, manufacturing lead times, and performance validation requirements. Manufacturing partners with established project management processes provide predictable timelines and proactive communication throughout the project lifecycle.
Typical Project Phases and Timelines
- Initial design review and quotation: 3-5 business days
- Design for manufacturability assessment: 1-2 business days
- Prototype fabrication: 1-3 weeks depending on complexity
- Performance testing and validation: 1-2 weeks concurrent with production
- Production quantities: 1-3 weeks with vertically integrated manufacturing
Initial design review and quotation phases typically require 3-5 business days for comprehensive evaluation of your custom RF shield requirements. This timeline includes DfM assessment, material recommendations, and manufacturing process optimization suggestions.
Performance testing and validation may add 1-2 weeks to project timelines depending on the extent of electromagnetic testing required. Manufacturing partners with in-house testing capabilities can often complete validation testing concurrently with production fabrication, minimizing timeline impact.
Read our Guide to Working with a Custom Manufacturing Partner.
Frequently Asked Questions
What is the minimum order quantity for custom RF shields?
Most manufacturers accept orders as small as 1-10 pieces for prototyping and initial validation. Production runs typically range from 10-1,000 pieces, with economies of scale improving cost-effectiveness for quantities above 100 pieces. Die-cut processes may require higher minimum quantities of 500-1,000 pieces due to tooling costs.
How do I determine the required shielding effectiveness for my application?
Shielding effectiveness requirements depend on your specific EMI/EMC compliance standards and the sensitivity of your electronics. Common requirements range from 40 dB for basic consumer electronics to 100+ dB for critical aerospace applications. Your manufacturing partner should provide electromagnetic simulation capabilities to predict performance during the design phase.
What is the typical cost range for custom RF shields?
Custom RF shield costs vary significantly based on complexity, materials, and quantities. Simple aluminum shields may cost $50-200 per piece in prototype quantities, while complex multi-cavity shields with exotic materials can exceed $1,000 per piece. Material costs typically represent 20-30% of total project expenses.
Can existing electronic enclosures be modified to add RF shielding?
Existing enclosures can often be modified to improve RF shielding performance through the addition of conductive gaskets, improved grounding, and selective shielding of critical areas. Modification approaches depend on the existing design and required performance levels. A manufacturing partner with DfM expertise can evaluate modification feasibility.
What certifications should I look for in a custom RF shield manufacturer?
AS9100 and ISO 9001 certifications indicate comprehensive quality management systems suitable for aerospace, defense, and medical applications. ITAR registration may be required for defense-related projects, while CMMC Level 2 certification addresses cybersecurity requirements for Department of Defense contractors.
How long does it take to develop and manufacture custom RF shields?
Timeline depends on design complexity and manufacturing approach. Vertically integrated manufacturers typically deliver prototype quantities within 1-3 weeks, while traditional multi-vendor approaches may require 4-6 weeks. Design for manufacturability reviews can be completed within 24 hours, enabling rapid iteration during development phases.
What testing is required to validate RF shield performance?
Shielding effectiveness testing typically involves TEM cells or reverberation chambers to measure attenuation across relevant frequency ranges. Near-field scanning provides detailed analysis of shield performance and identifies potential leakage points. Pre-production testing capabilities enable performance validation before full production commitment.
Which materials provide the best shielding effectiveness?
Aluminum alloys like 6061-T6 provide 60-90 dB attenuation at optimal weight ratios for most applications. Steel alloys offer higher shielding effectiveness but increased weight. Gasket materials significantly impact overall performance, with fabric-over-foam gaskets providing maximum effectiveness and conductive silicones offering environmental sealing capabilities.
